Network Video Recorder User Manual
146

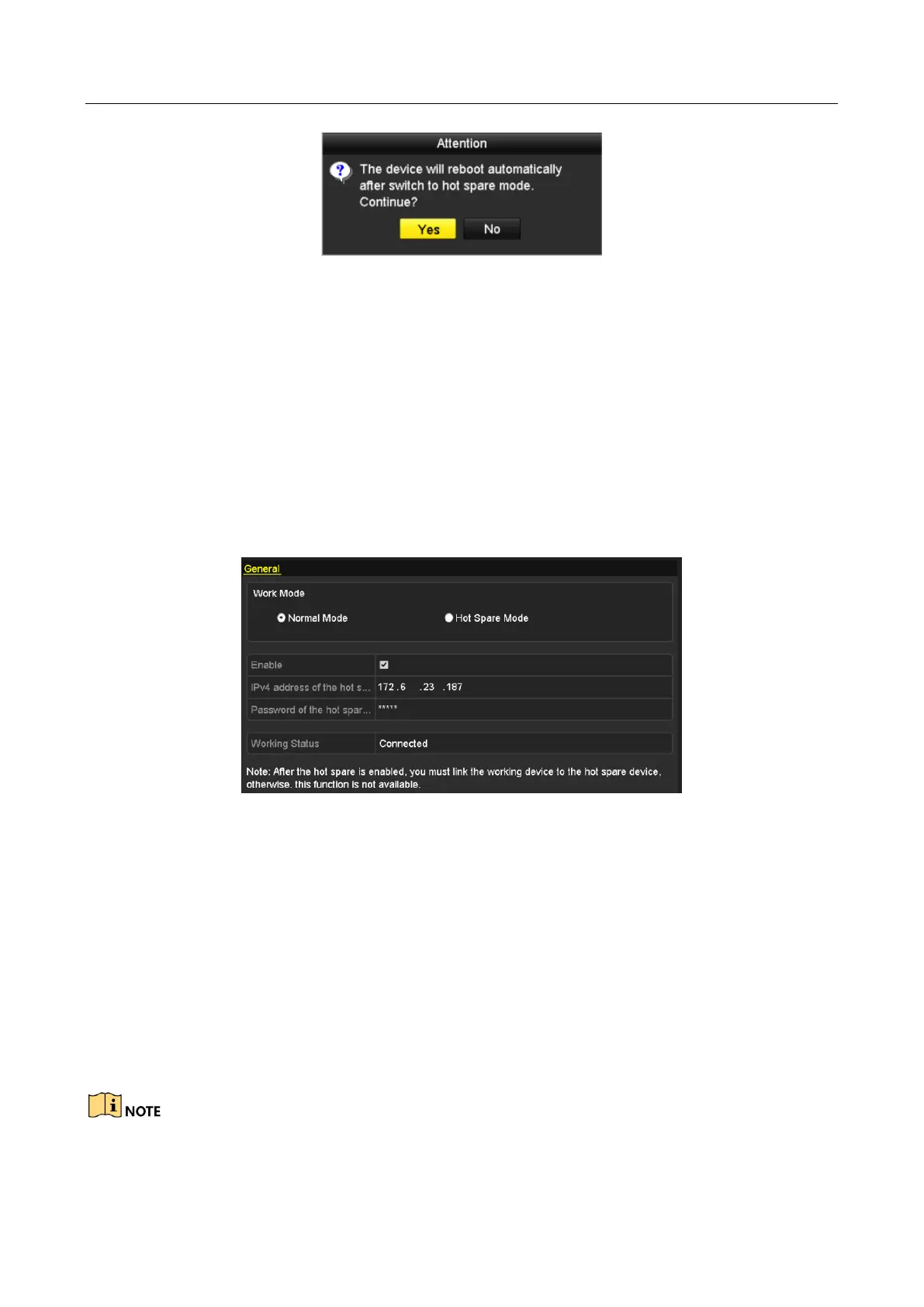

Figure 7-14 Reboot Attention
Step 4 Click the Yes button in the pop-up attention box.
7.3.3 Setting Working Device
Step 1 Enter the Hot Spare settings interface.
Step 2 Menu > Configuration > Hot Spare
Step 3 Set the Work Mode as Normal Mode (default).
Step 4 Check the checkbox of Enable to enable the hot spare function.
Step 5 Enter the IP address and admin password of hot spare device.
Figure 7-15 Setting Working Mode for Working device
Step 6 Click the Apply button to save the settings.
7.3.4 Managing Hot Spare System
Step 1 Enter the Hot Spare Settings interface of the hot spare device.
Menu > Configuration > Hot Spare
The connected working device is displayed on the device list.
Step 2 Check the checkbox to select the working device from the device list, and click the Add
button to link the working device to the hot spare device.
A hot spare device can connect up to 32 working devices.
