Network Video Recorder User Manual
198

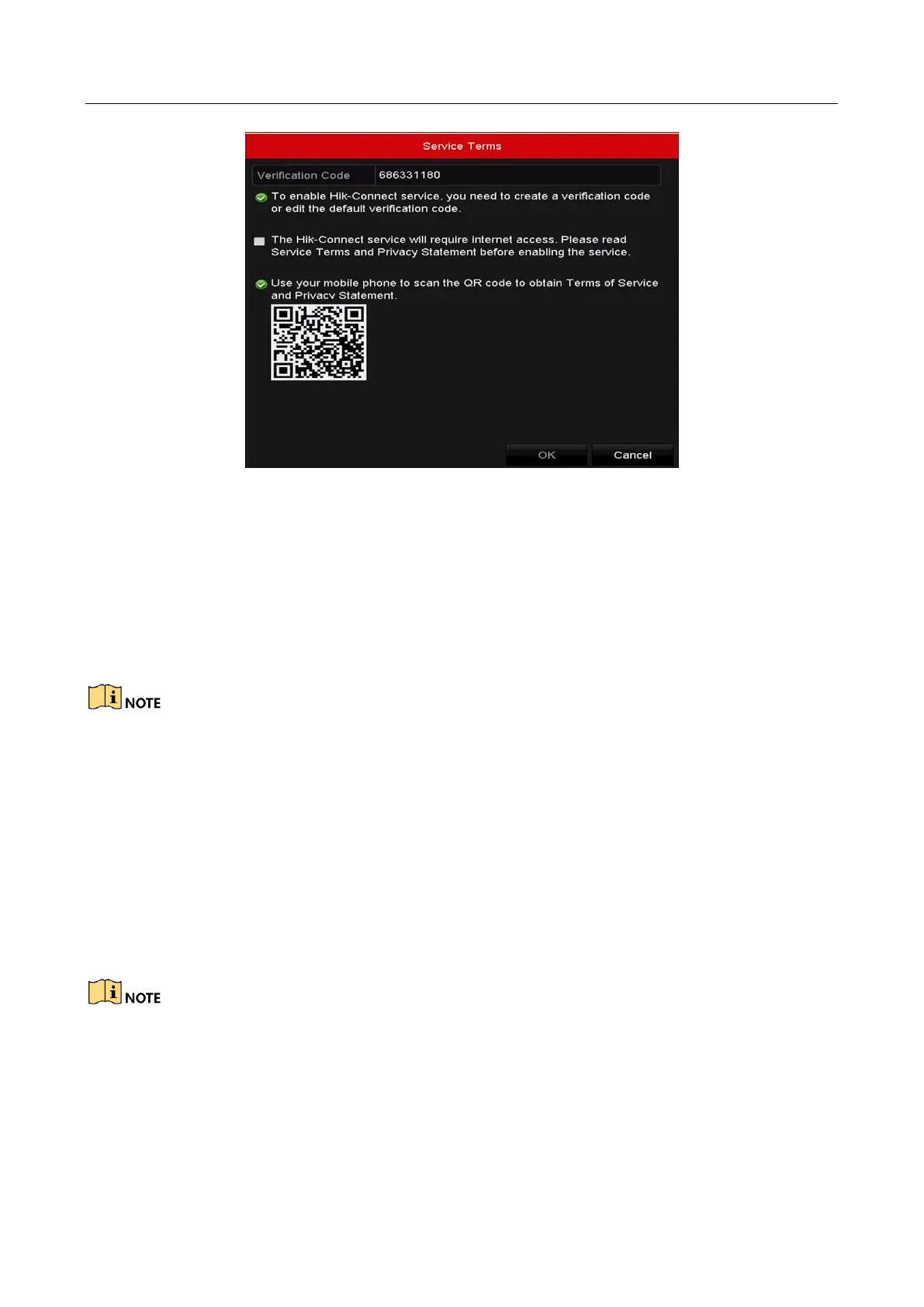

Figure 12-3 Service Terms
1) Create the verification code and enter the code in the Verification Code text field.
2) Check the checkbox of The Hik-Connect service will require internet access. Please
read Service Terms and Privacy Statement before enabling the service.
3) Scan the QR code on the interface to read the Service Terms and the Privacy
Statement.
4) Click OK to save the settings and return to the Hik-Connect interface.
Hik-Connect is disabled by default.
The verification code is empty when the device leaves factory.
The verification code must contain 6 to 12 letters or numbers and is case sensitive.
Every time you enable Hik-Connect, the Service Terms interface pops up and you should
check the checkbox before enabling it.
Step 4 (Optional) Check the checkbox of Custom and input the Server Address.
Step 5 (Optional) Check the checkbox of Enable Stream Encryption. After this feature is enabled,
the verification code is required for remote access and live view.
You can use the scanning tool of your phone to quickly get the code by scanning the QR code
below.

Table of Contents

Other manuals for HIKVISION DS-7608NI-K1

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-7608NI-K1 and is the answer not in the manual?

HIKVISION DS-7608NI-K1 Specifications

General IconGeneral
Audio system2-way
Video codecsH.265/H.265+/H.264/H.264+/MPEG4
Input bandwidth80 Mbit/s
Maximum resolution1920 x 1080 pixels
Alarm input channels4
Video input channels8 channels
Alarm output channels1
Supported resolutions1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
Output current1.8 A
Output voltage48 V
Power consumption (typical)10 W
Total Power over Ethernet (PoE) budget75 W
HDMI outputYes
Networking standardsIEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity2
Ethernet LAN data rates10, 100 Mbit/s
Ethernet LAN (RJ-45) ports9
Supported network protocolsTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Power over Ethernet (PoE) ports quantity8
HDD capacity0 GB
HDD interfaceSATA, SATA II, SATA III
Maximum storage capacity6 TB
Number of HDDs installed0
Wi-FiNo
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90 %
CertificationEN 301489-1, EN 301489-19, EN 301489-52, EN 303413, EN 301511, EN 301908-1, EN 301908-2, EN 301908-13, EN 62311:2008
Product colorBlack
Rack capacity1U
Weight and Dimensions IconWeight and Dimensions
Depth240 mm
Width315 mm
Height48 mm
Weight1180 g
