HIKVISION DS-7608NI-K1 User Manual

Network Video Recorder User Manual
55

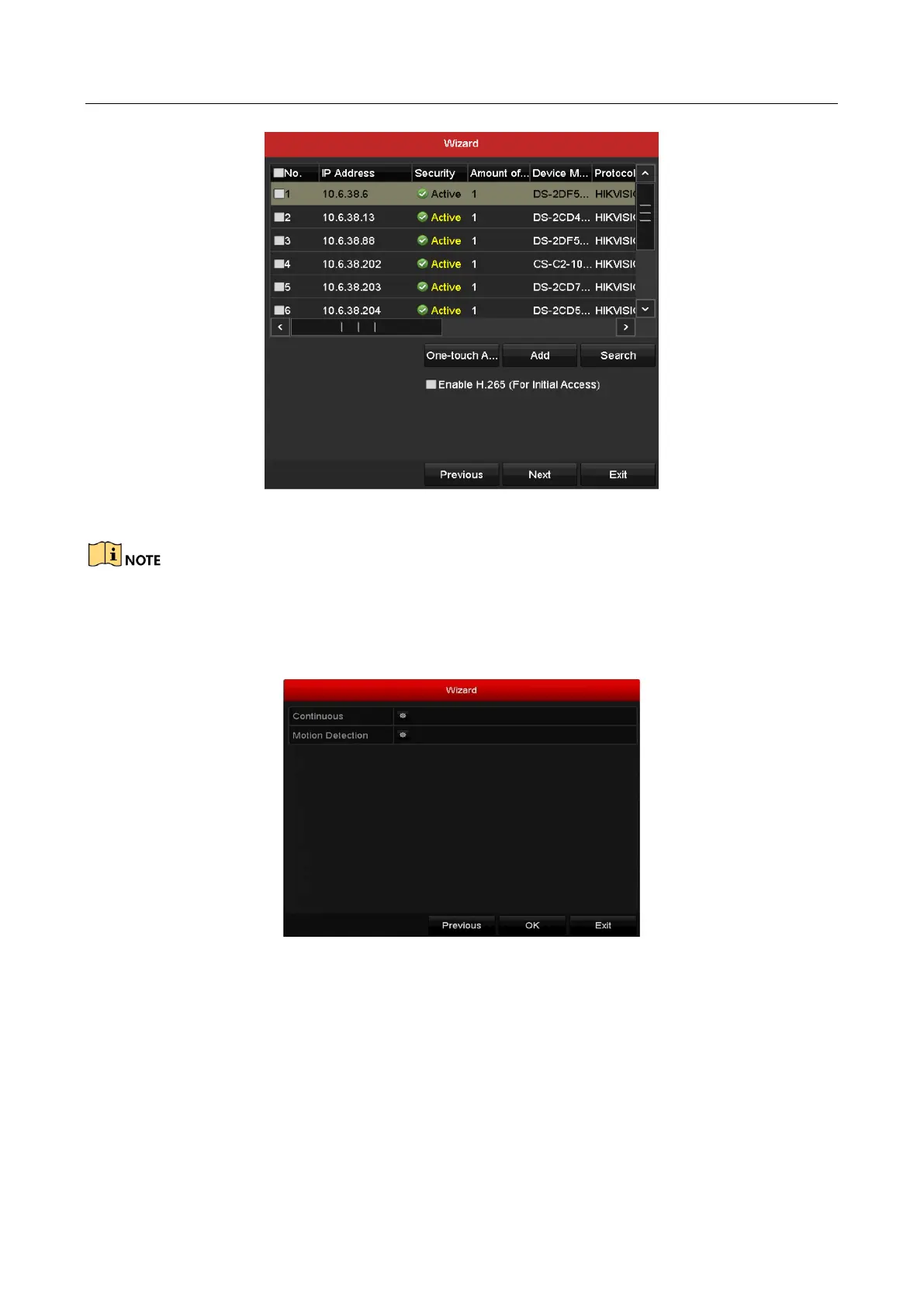

Figure 2-23 Search for IP Cameras
When you check the checkbox of Enable H.265, the NVR can automatically switch to the H.265
stream of IP camera (which supports H.265 video format) for the initial access.
Step 12 Click Next button. Configure the recording for the added IP Cameras.
Figure 2-24 Record Settings
Step 13 Click OK to complete the startup Setup Wizard.

HIKVISION DS-7608NI-K1 Specifications

General

Audio system	2-way
Video codecs	H.265/H.265+/H.264/H.264+/MPEG4
Input bandwidth	80 Mbit/s
Maximum resolution	1920 x 1080 pixels
Alarm input channels	4
Video input channels	8 channels
Alarm output channels	1
Supported resolutions	1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
Output current	1.8 A
Output voltage	48 V
Power consumption (typical)	10 W
Total Power over Ethernet (PoE) budget	75 W
HDMI output	Yes
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	9
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Power over Ethernet (PoE) ports quantity	8
HDD capacity	0 GB
HDD interface	SATA, SATA II, SATA III
Maximum storage capacity	6 TB
Number of HDDs installed	0
Wi-Fi	No
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Certification	EN 301489-1, EN 301489-19, EN 301489-52, EN 303413, EN 301511, EN 301908-1, EN 301908-2, EN 301908-13, EN 62311:2008
Product color	Black
Rack capacity	1U

Weight and Dimensions

Depth	240 mm
Width	315 mm
Height	48 mm
Weight	1180 g
