HIKVISION DS-7616NI-Q2/16P User Manual

Network Video Recorder User Manual
213
Step 3 Click the icon to enter the Edit User interface, as shown in Figure 15-10.

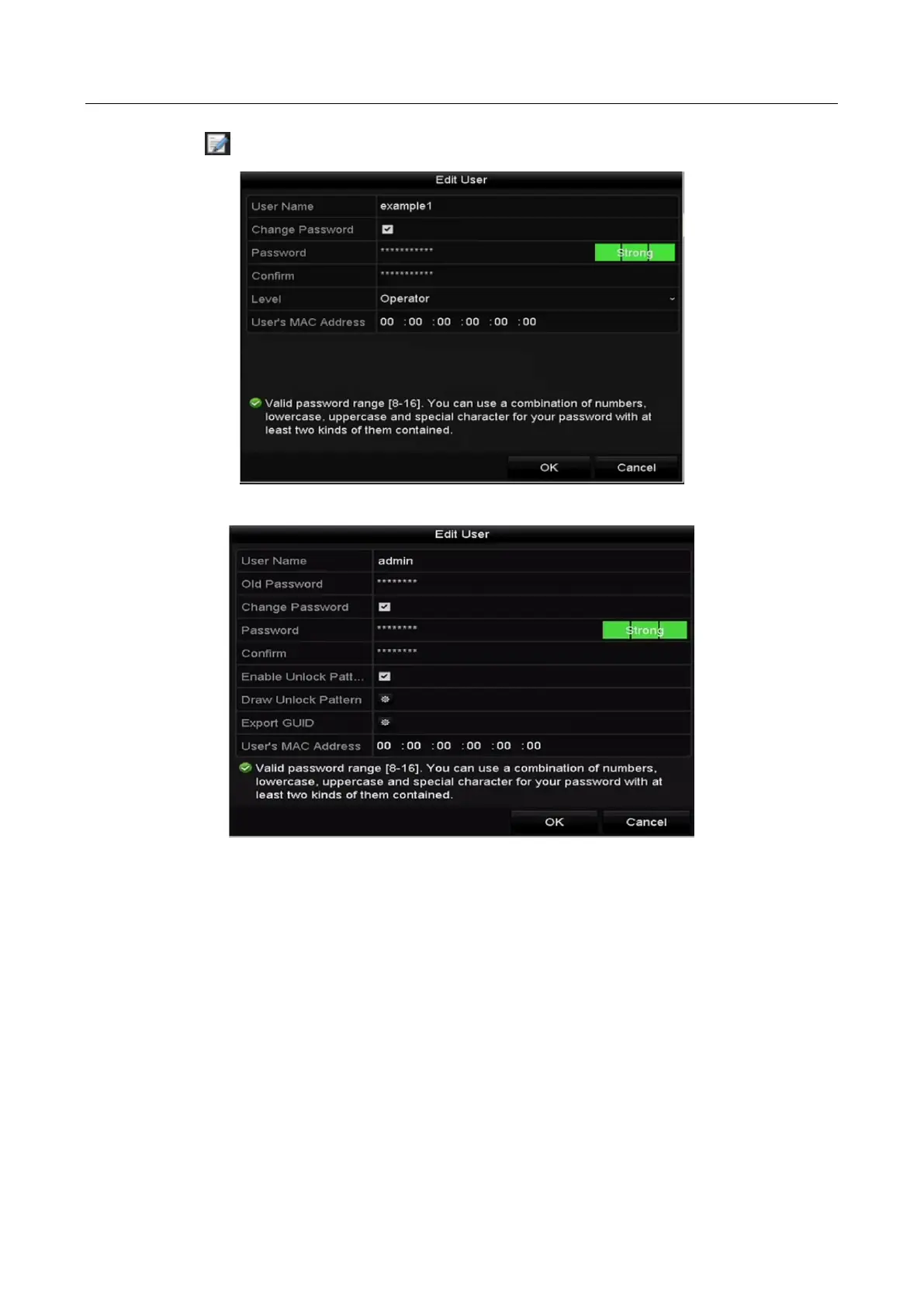

Figure 15-9 Edit User (Operator/Guest)
Figure 15-10 Edit User (admin)
Step 4 Edit the password for the user
• Operator and Guest
You can edit the user information, including user name, password, permission level and
MAC address. Check the checkbox of Change Password if you want to change the password,
and input the new password in the text field of Password and Confirm. A strong password
is recommended.
• Admin
You are only allowed to edit the password and MAC address. Check the checkbox of
Change Password if you want to change the password, and the input the correct old
password, and the new password in the text field of Password and Confirm.

HIKVISION DS-7616NI-Q2/16P Specifications

General

DHCP client	Yes
Input bandwidth	160 Mbit/s
Output bandwidth	80 Mbit/s
Maximum resolution	3840 x 2160 pixels
Video input channels	16 channels
Alarm output channels	1
Supported resolutions	3840 × 2160, 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
Video recording modes	720p, 1080p
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Product color	Black
Rack capacity	1U
AC input voltage	100 - 240 V
Power consumption (max)	280 W
Total Power over Ethernet (PoE) budget	150 W
Wi-Fi	No
HDD interface	Serial ATA
Maximum storage capacity	16 TB
Number of HDDs supported	2
Total installed storage capacity	1000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	315 mm
Width	385 mm
Height	52 mm
Weight	3000 g
