User Manual of DS-9600/8600/7700/7600 Series NVR
99

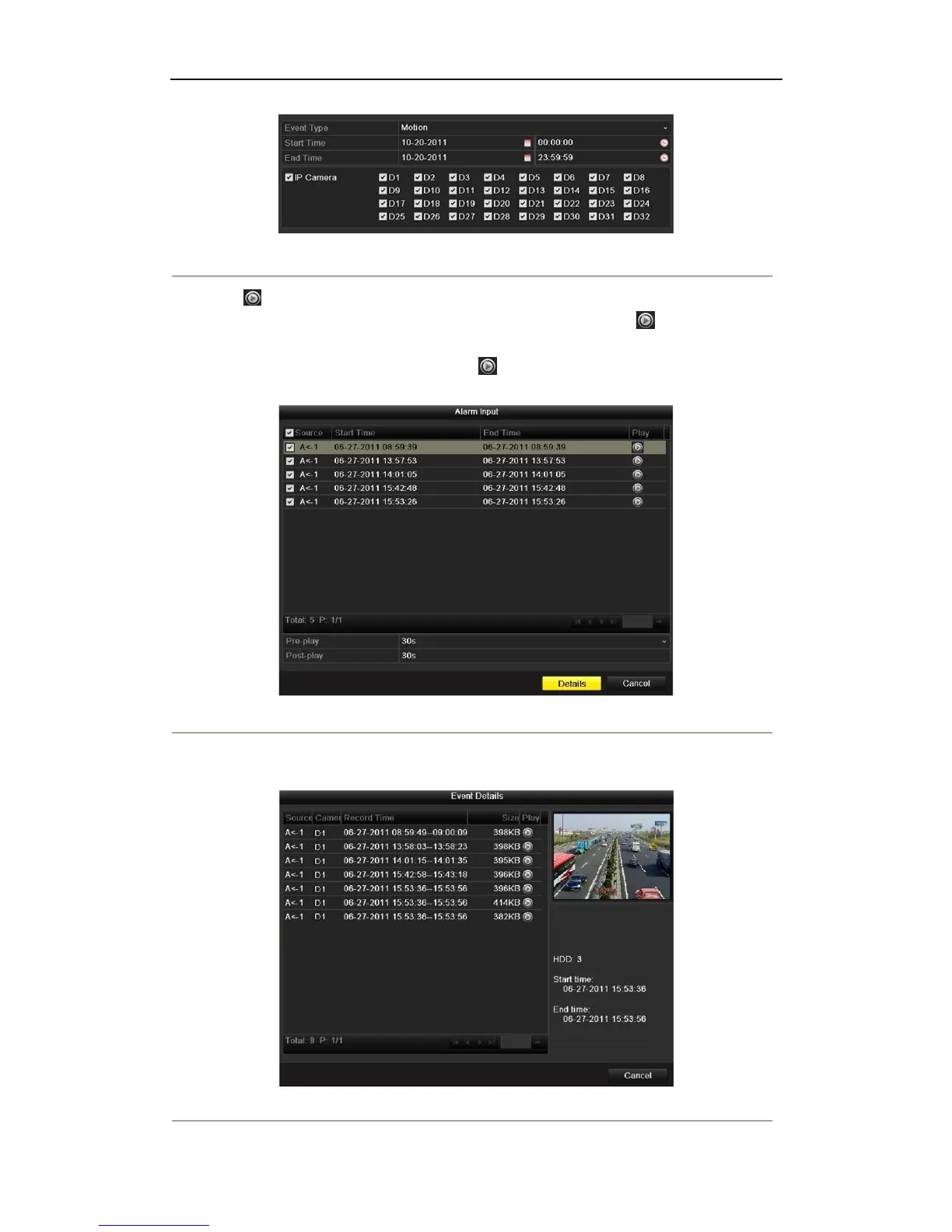

Figure 6. 17 Video Search by Motion
4. Click button to enter the Playback interface.
If there is only one channel is triggered by an alarm input, clicking button takes you to
Full-screen Playback interface of this channel.
If several channels are triggered, clicking button takes you to step 7and then step 8.
Note: Pre-play and post-play can be configured.
Figure 6. 18 Result of Video Search by Alarm Input
5. Click Details button to view detailed information of the record file, e.g. start time, end time,
file size, etc.
Figure 6. 19 Event Details Interface
