2) If the capacity of the array created through one-touch configuration is greater than 16TB, two arrays
and two virtual disks will be created.

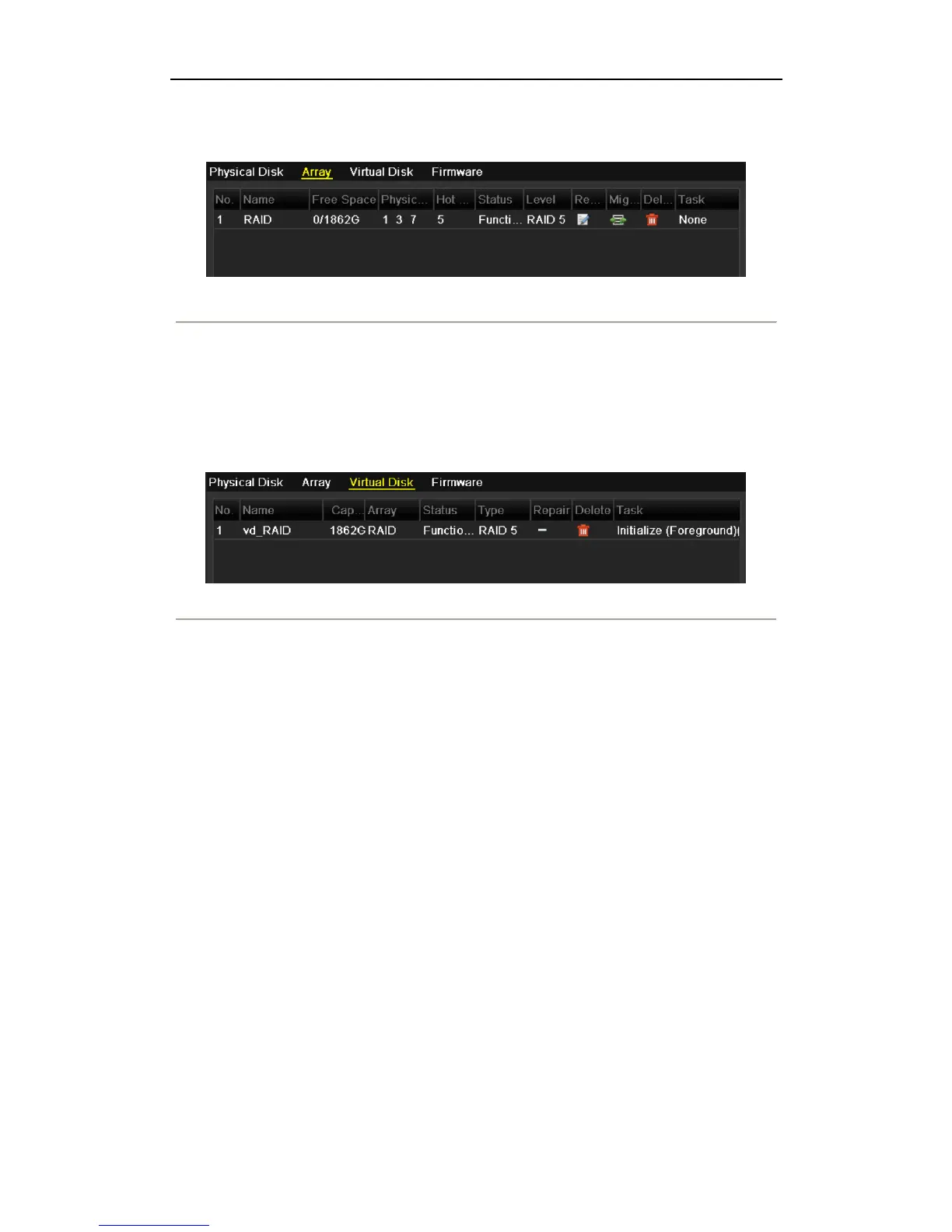

Figure 10. 4 Array Settings Interface
6. Click Virtual Disk tab to view the automatically created virtual disk.
Notes:
1) By default, one-touch configuration adopts foreground initialization to initialize the virtual disk. By
using foreground initialization, the virtual disk can be used only after the initialization is complete.
2) If the capacity of the array created through one-touch configuration is greater than 16TB, two arrays
and two virtual disks will be created.
Figure 10. 5 Virtual Disk Settings Interface
7. After the foreground initialization of the virtual disk is complete, the virtual disk will display in the HDD
Information interface (Menu>HDD>General). For operation guide of initializing the virtual disk, please refer
to Chapter 11.1 Initializing HDDs.
Note: For configuring hot spare disk manually, please refer to steps 12-15 of Chapter 10.1.2.
10.1.2 Manually Creating Array and Virtual Disk
Purpose:
You can manually create the array of RAID 0, RAID 1, RAID 5 and RAID 10.
Note: In this section, we take RAID 5 as an example to describe the manual configuration of array and virtual disk.
Steps:
1. Enter the Physical Disk Settings interface.
Menu > HDD > RAID > Physical Disk
To Next Page
