User Manual of DS-9600/8600/7700/7600 Series NVR
171

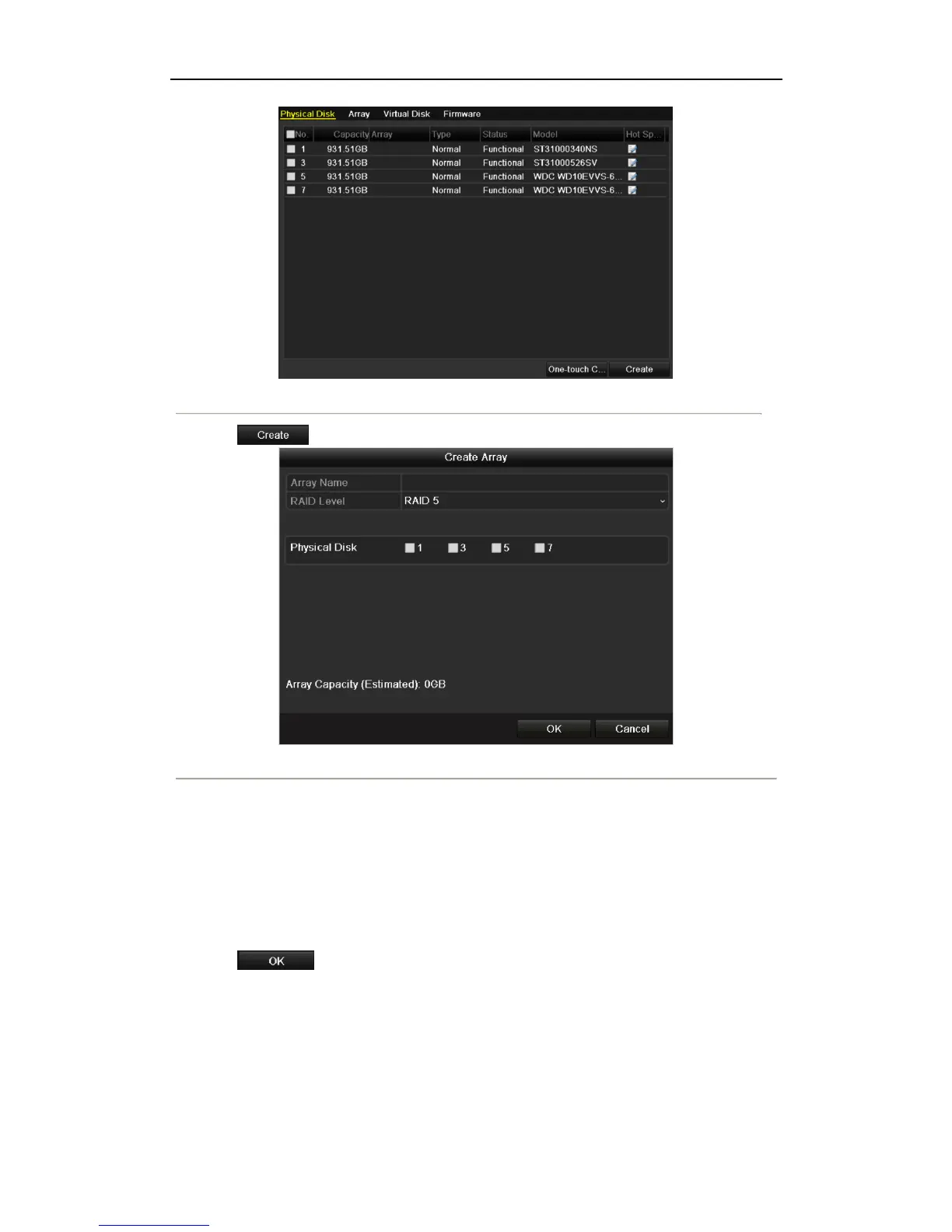

Figure 10. 6 Physical Disk Settings Interface
2. Click to enter the Create Array interface.
Figure 10. 7 Create Array Interface
3. Edit the Array Name; set the RAID Level to RAID 0, RAID 1, RAID 5 or RAID 10; select the Physical
Disk that you want to configure array.
Notes:
1) If you choose RAID 0, at least 2 HDDs must be installed.
2) If you choose RAID 1, 2 HDDs need to be configured for RAID 1.
3) If you choose RAID 5, at least 3 HDDs must be installed.
4) If you choose RAID 10, 4/6/8 HDDs need to be configured for RAID 10.
4. Click to create array.
Note: If the number of HDDs you select is not compatible with the requirement of the RAID level, the error
message box will pop up.
