User Manual of DS-9600/8600/7700/7600 Series NVR
82
5.7 Configuring Redundant Recording and
Capture
Purpose:
Enabling redundant recording and capture, which means saving the record files and captured
pictures not only in the R/W HDD but also in the redundant HDD, will effectively enhance the
data safety and reliability. .
Steps:
1. Enter HDD Information interface.
Menu> HDD

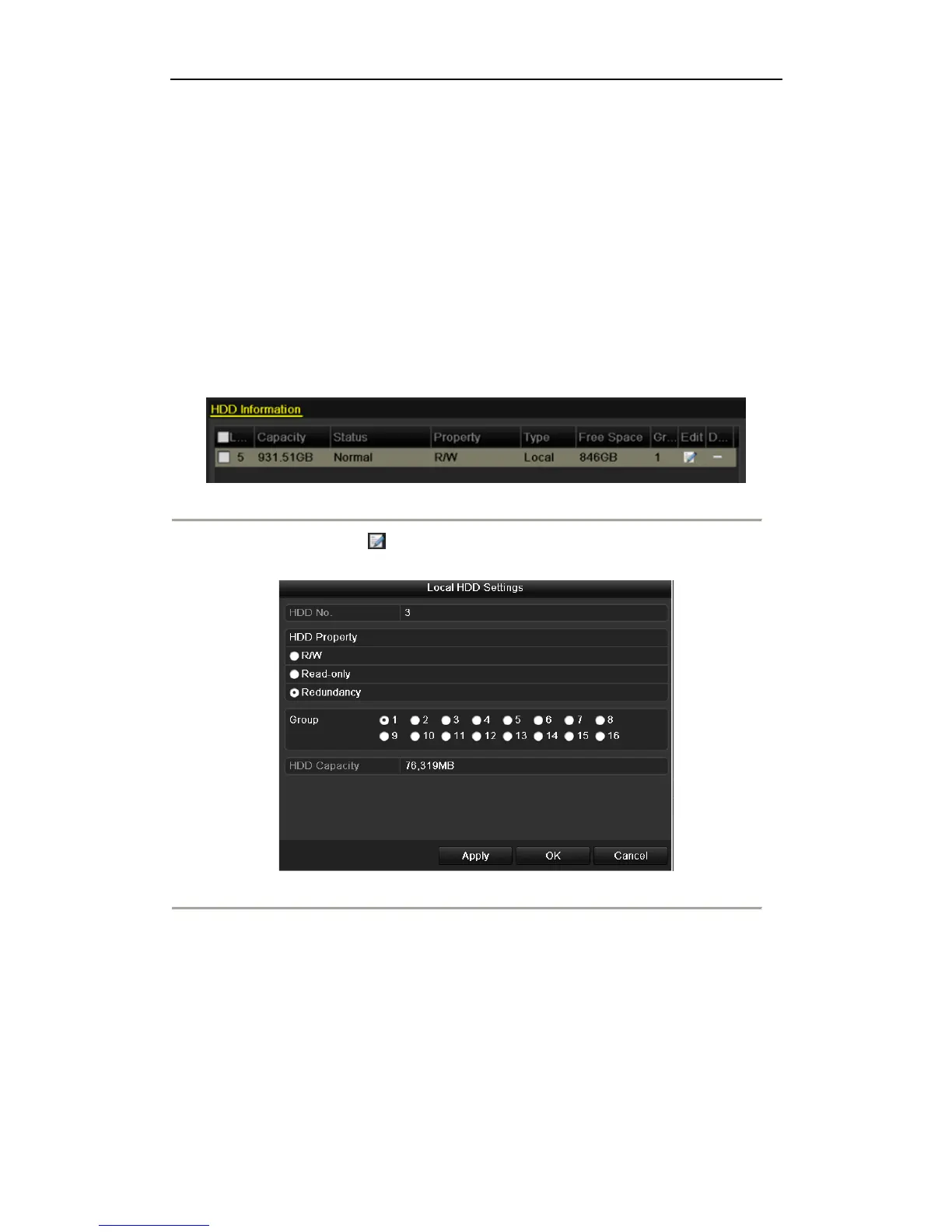

Figure 5. 24 HDD General
2. Select the HDD and click to enter the Local HDD Settings interface.
1) Set the HDD property to Redundancy.
Figure 5. 25 HDD General-Editing
2) Click Apply to save the settings.
3) Click OK to back to the upper level menu.
Note: You must set the Storage mode in the HDD advanced settings to Group before you set the
HDD property to Redundant. For detailed information, please refer to Chapter 12.4 Managing
HDD Group. There should be at least another HDD which is in Read/Write status.
3. Enter the Record setting interface.
Menu> Record> Encoding
1) Select Record tab.
To Next Page
