HIKVISION DS-9600 Series User Manual

User Manual of DS-9600/8600/7700/7600 Series NVR
190
1) Enter the NetHDD IP address in the text field.
2) Enter the NetHDD Directory in the text field.
3) Click the OK button to add the configured NAS disk.
Note: Up to 8 NAS disks can be added.

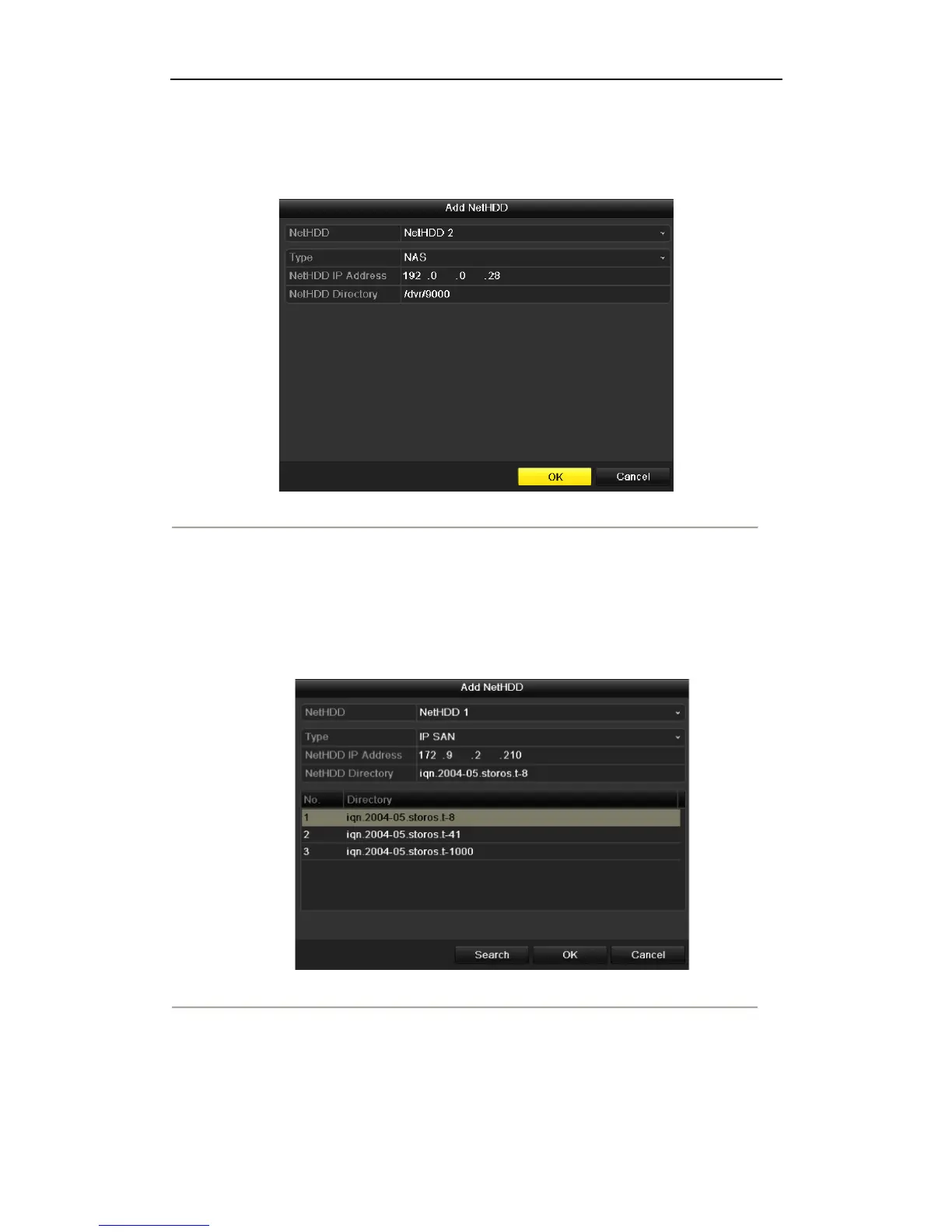

Figure 11. 7 Add NAS Disk
• Add IP SAN:
1) Enter the NetHDD IP address in the text field.
2) Click the Search button to the available IP SAN disks.
3) Select the IP SAN disk from the list shown below.
4) Click the OK button to add the selected IP SAN disk.
Note: Up to 1 IP SAN disk can be added.
Figure 11. 8 AddIP SAN Disk
6. After having successfully added the NAS or IP SAN disk, return to the HDD Information
menu. The added NetHDD will be displayed in the list.
Note: If the added NetHDD is uninitialized, please select it and click the Init button for
initialization.
