to speed up and slow down record playing, and the
Left and Right buttons are used to move the recording
30s forwards or backwards.
In the image setting interface, the up and down button
can adjust the level bar of the image parameters.
In live view mode, these buttons can be used to switch
channels.
Enter:
The Enter button is used to confirm selection in menu
mode; or used to check checkbox fields and ON/OFF
switch.
In playback mode, it can be used to play or pause the
video.
In single-frame play mode, pressing the Enter button
will play the video by a single frame.
And in auto sequence view mode, the buttons can be
used to pause or resume auto sequence.

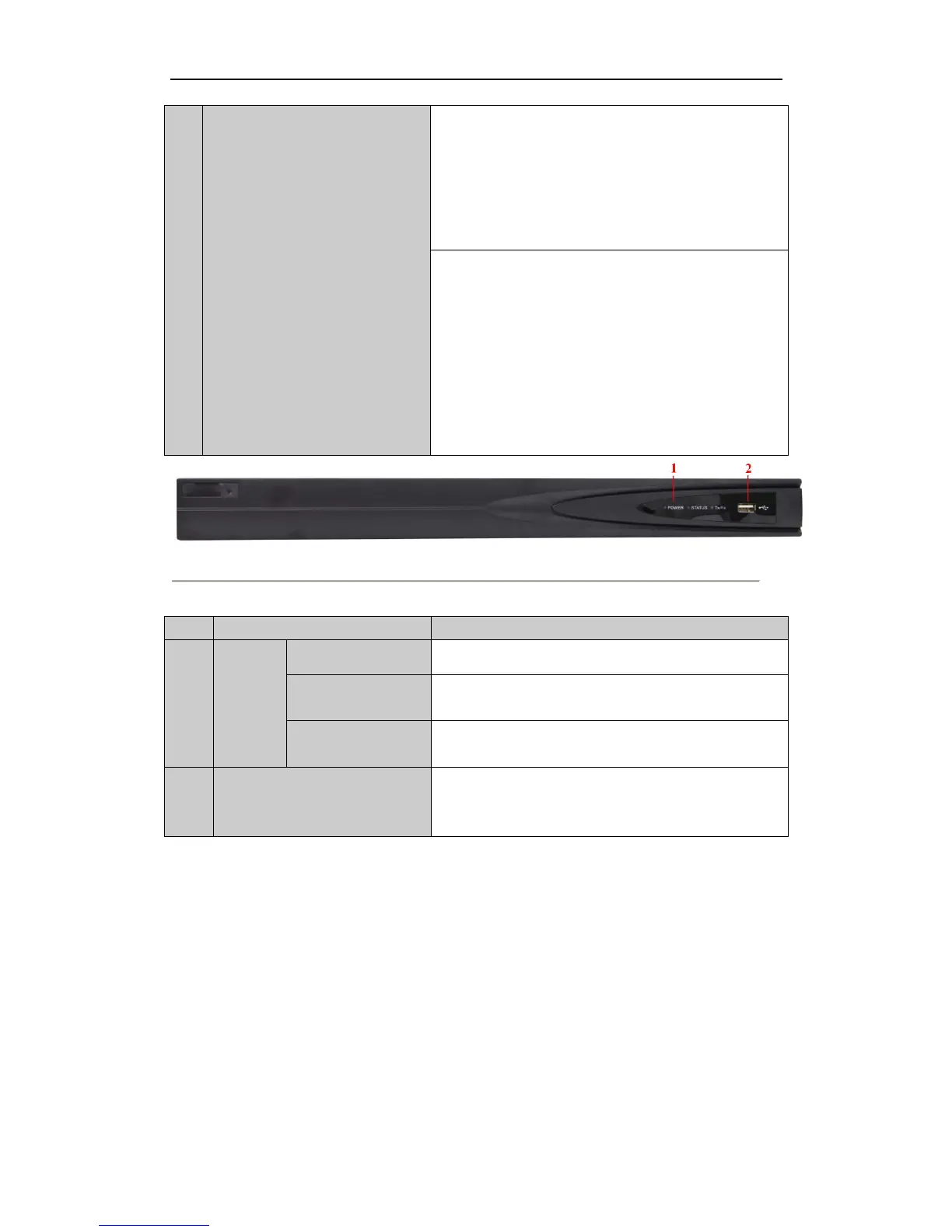

Figure 1. 6 DS-7600NI-SE(/N)
Table 1. 4 Description of Front Panel
Power indicator turns yellow when system is running.
Status indicator blinks red when data is being read
from or written to HDD.
TX/RX indictor blinks yellow when network
connection is functioning properly.
Universal Serial Bus (USB) ports for additional
devices such as USB mouse and USB Hard Disk Drive
(HDD).
Note: The front panel related operations are not supported with DS-7600NI-SE(/N) because it
doesn’t have buttons on its front panel.
