User Manual of DS-9600/8600/7700/7600 Series NVR
228

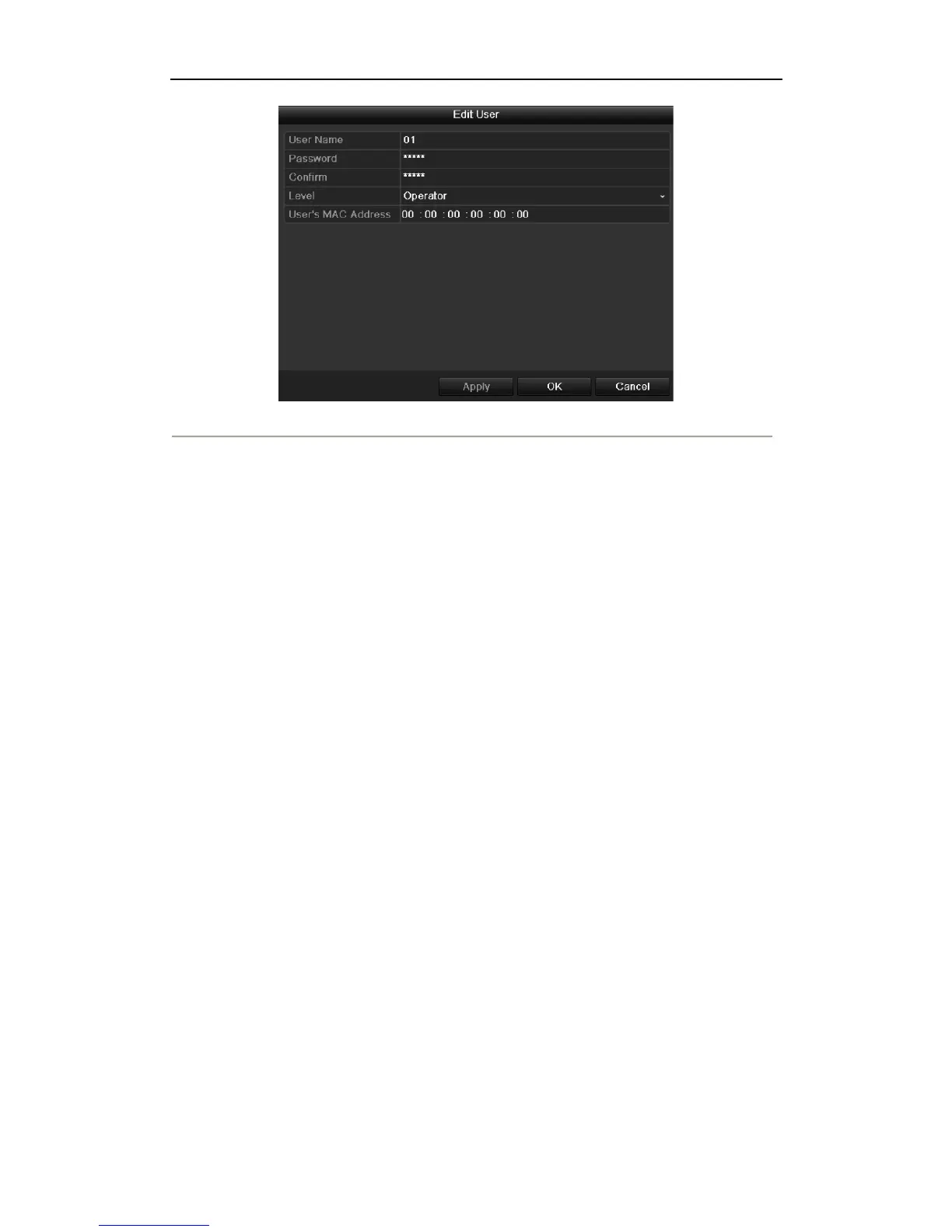

Figure 14. 10
E
dit User Interface
4.
Edit the user inform
ation, including user
name, password
, level and MAC addr
ess.
5.
Click the
OK
button to sav
e the setti
ngs and exit the menu.
228
230
Table of Contents
Default Chapter
3
Fcc Information
3
Regulatory Information
3
Preventive and Cautionary Tips
6
Product Key Features
7
Table of Contents
10
Chapter 1 Introduction
14
Front Panel
15
IR Remote Control Operations
23
USB Mouse Operation
25
Input Method Description
26
Rear Panel
27
Chapter 2 Getting Started
32
Starting up and Shutting down the NVR
33
Using the Wizard for Basic Configuration
35
Adding and Connecting the IP Cameras
40
Adding the Online IP Cameras
40
Editing IP Cameras Connected to the Poe Interfaces
43
DS-7600/7700NI-SP Series NVR)
43
Editing IP Cameras Connected to the Extra Network Interfaces
45
DS-7600NI-SE/N Series NVR)
45
Chapter 3 Live View
47
Introduction of Live View
48
Operations in Live View Mode
49
Front Panel Operation on Live View
49
Using the Mouse in Live View
50
Using an Auxiliary Monitor
51
Quick Setting Toolbar in Live View Mode
52
Adjusting Live View Settings
54
Channel-Zero Encoding
56
User Logout
57
Chapter 4 PTZ Controls
58
Configuring PTZ Settings
59
Setting PTZ Presets, Patrols & Patterns
60
Customizing Presets
60
Calling Presets
61
Customizing Patrols
62
Calling Patrols
63
Customizing Patterns
64
Calling Patterns
65
PTZ Control Toolbar
67
Chapter 5 Record and Capture Settings
68
Configuring Encoding Parameters
69
Configuring Record/Capture Schedule
72
Configuring Motion Detection Record and Capture
76
Configuring Alarm Triggered Record and Capture
78
Manual Record and Continuous Capture
80
Configuring Holiday Record and Capture
81
Configuring Redundant Recording and Capture
83
Configuring HDD Group for Recording and Capture
85
Files Protection
87
Chapter 6 Playback
90
Playing Back Record Files
91
Playing Back by Channel
91
Playing Back by Time
94
Playing Back by Normal Video Search
96
Playing Back by Event Search
99
Playing Back by Tag
102
Playing Back by System Logs
106
Auxiliary Functions of Playback
108
Playing Back Frame by Frame
108
Digital Zoom
108
Adverse Playback of Multi-Channel
109
Picture Playback
111
Chapter 7 Backup
113
Backing up Record Files
114
Quick Export
114
Backing up by Normal Video Search
115
Backing up by Event Search
123
Backing up Video Clips
126
Backing up Pictures
128
Managing Backup Devices
131
Chapter 8 Alarm Settings
134
Setting Motion Detection Alarm
135
Setting Sensor Alarms
137
Detecting Video Loss Alarm
140
Detecting Video Tampering Alarm
142
Handling Exceptions Alarm
144
Setting Alarm Response Actions
145
Triggering or Clearing Alarm Output Manually
148
Chapter 9 Network Settings
149
Configuring General Settings
150
Configuring Advanced Settings
152
Configuring Pppoe Settings
152
Configuring DDNS
152
Configuring NTP Server
155
Configuring SNMP
156
Configuring Remote Alarm Host
156
Configuring Multicast
157
Configuring RTSP
158
Configuring Server and HTTP Ports
158
Configuring Email
159
Configuring Upnp
160
Checking Network Traffic
163
Configuring Network Detection
164
Testing Network Delay and Packet Loss
164
Exporting Network Packet
164
Checking the Network Status
165
Checking Network Statistics
167
Chapter 10 RAID
168
Configuring Array and Virtual Disk
169
One-Touch Configuration
170
Manually Creating Array and Virtual Disk
171
Rebuilding Array
176
Automatically Rebuilding Array
176
Manually Rebuilding Array
177
Repairing Virtual Disk
179
Deleting Array / Virtual Disk
180
Deleting the Virtual Disk
180
Deleting the Array
180
Migrating and Extending
182
Upgrading Firmware
185
Chapter 11 HDD Management
187
Initializing Hdds
188
Managing Network HDD
190
Managing Esata
193
Managing HDD Group
194
Setting HDD Groups
194
Setting HDD Property
195
Configuring Quota Mode
197
Checking HDD Status
199
HDD Detection
201
Configuring HDD Error Alarms
203
Chapter 12 Camera Settings
204
Configuring OSD Settings
205
Configuring Privacy Mask
206
Configuring Video Parameters
207
Chapter 13 NVR Management and Maintenance
208
Viewing System Information
209
Viewing Device Information
209
Viewing Camera Information
209
Viewing Record Information
210
Viewing Alarm Information
211
Viewing Network Information
211
Viewing HDD Information
212
Searching & Export Log Files
213
Importing/Exporting Configuration Files
216
Upgrading System
217
Upgrading by Local Backup Device
217
Upgrading by FTP
217
Restoring Default Settings
219
Chapter 14 Others
220
Configuring RS-232 Serial Port
221
Configuring General Settings
222
Configuring DST Settings
223
Configuring more Settings for Device Parameters
224
Managing User Accounts
225
Adding a User
225
Deleting a User
228
Editing a User
228
Appendix
230
Glossary
231
Faq
232
List of Compatible IP Cameras
233
List of Hikvision IP Cameras Supported by DS-9600/8600/7700/7600NI-ST & DS-9600NI-RT/XT & DS-7700/7600NI-SP & DS-7600NI-SE(/N) Series
233
List of IP Cameras Supported by DS-9600/8600/7700/7600NI-ST & DS-9600NI-RT/XT & DS-7700/7600NI-SP & DS-7600NI-SE(/N) Series
235
