HIKVISION DS-9600 Series User Manual

User Manual of DS-9600/8600/7700/7600 Series NVR
30
DS-7600NI-SE/N

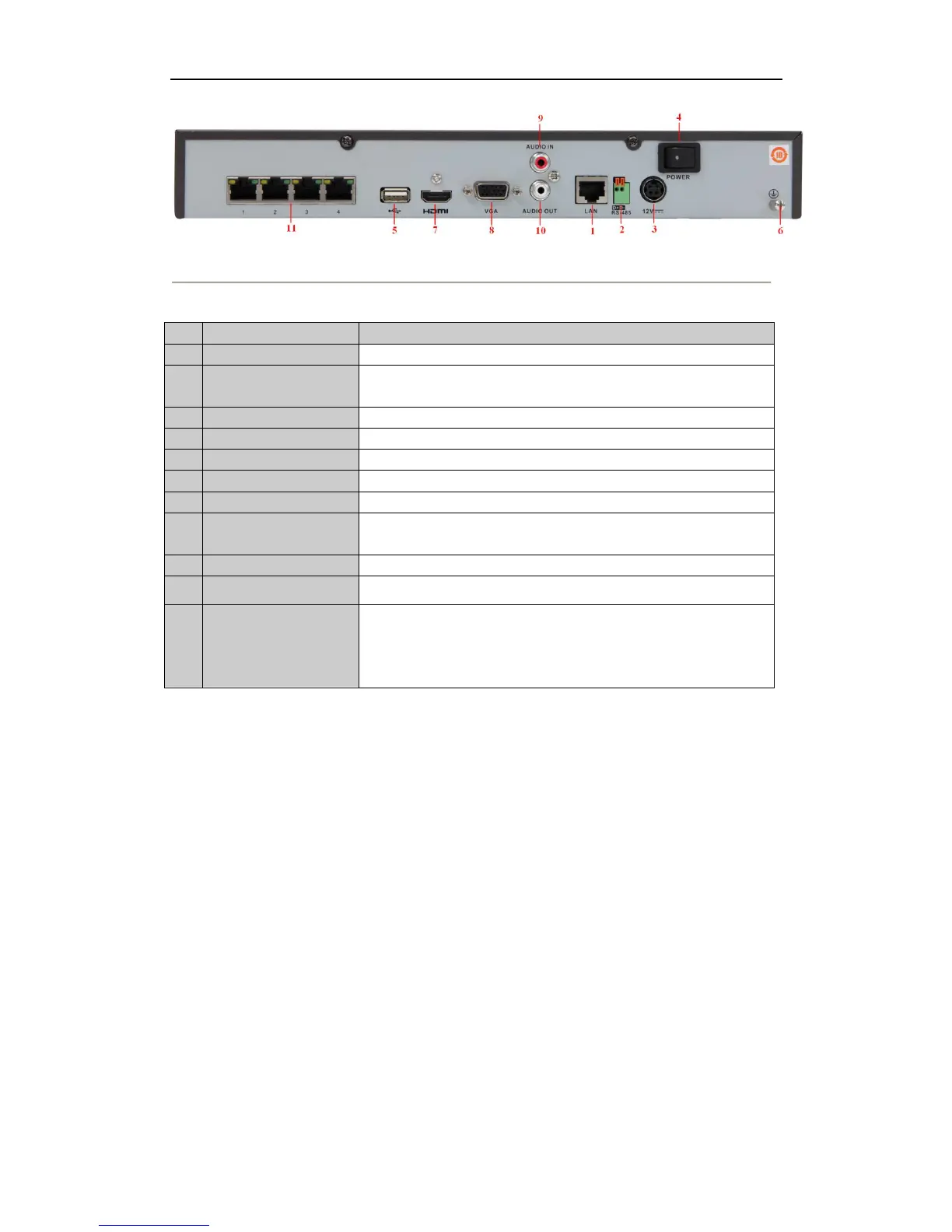

Table 1. 12 Description of Rear Panel Interfaces
No.
Item
Description
1
LAN Interfaces
Connector for LAN (Local Area Network).
2
RS-485 Keyboard
Interface
Connector for RS-485 devices. T+ and T- pins connect to R+
and R- pins of PTZ receiver respectively.
3
Power Supply
12VDC power supply.
4
Power Switch
Switch for turning on/off the device.
5
USB
Connects USB disks and devices.
6
Ground
Ground (needs to be connected when NVR starts up).
7
HDMI
HDMI video output connector.
8
VGA
DB9 connector for VGA output. Display local video output and
menu.
9
AUDIO IN
BNC connector for audio input. (Also for voice talk)
10
AUDIO OUT
BNC connector for audio output.
11
Network Interfaces
with switch function
(for
DS-7600NI-SE/N)
Network interfaces for a built-in switch.
