User Manual of DS-9600/8600/7700/7600 Series NVR
36
DS-7700/7600NI-SP and DS-7600NI-SE/N

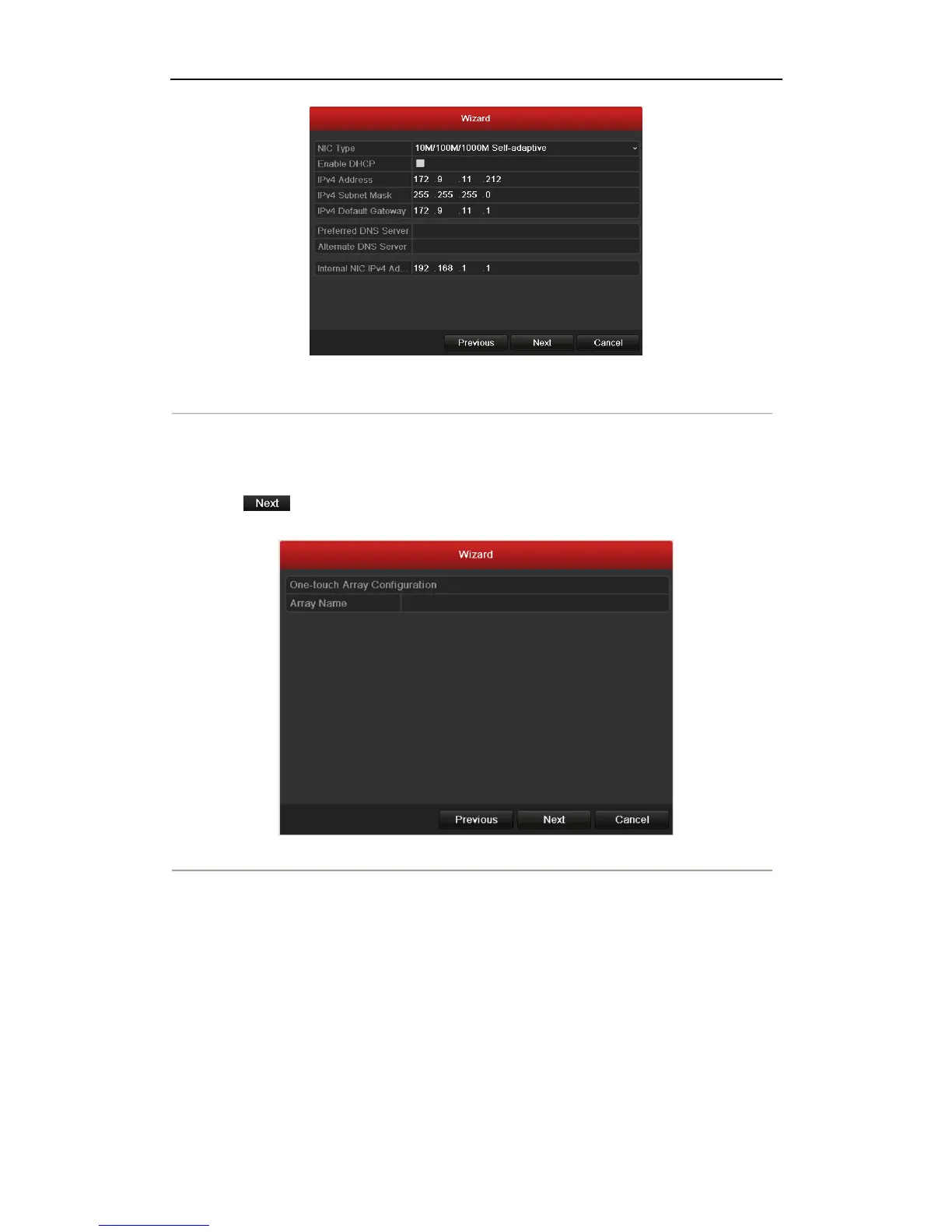

Figure 2. 5 Network Configuration
Note: Dual-NIC is only supported in DS-9600NI-ST/RT/XT device. And for DS-7700/7600NI-SP
series NVR, the internal NIC IPv4 address should be configured for the cameras connecting to the
PoE network interface of the NVR.
7. Click after you configured the network parameters, which takes you to the Array
Management window (supported by DS-9600NI-RT series only).
Figure 2. 6 Array Management
8. Click Next button after you configured the network parameters, which takes you to the HDD
Management window, shown in Figure 2. 7.
