HIKVISION DS-k2210 - Chapter 2 Appearance; 2.1 Device Appearance Introduction

Main Elevator Controller User Manual
9
Chapter 2 Appearance
2.1 Device Appearance Introduction

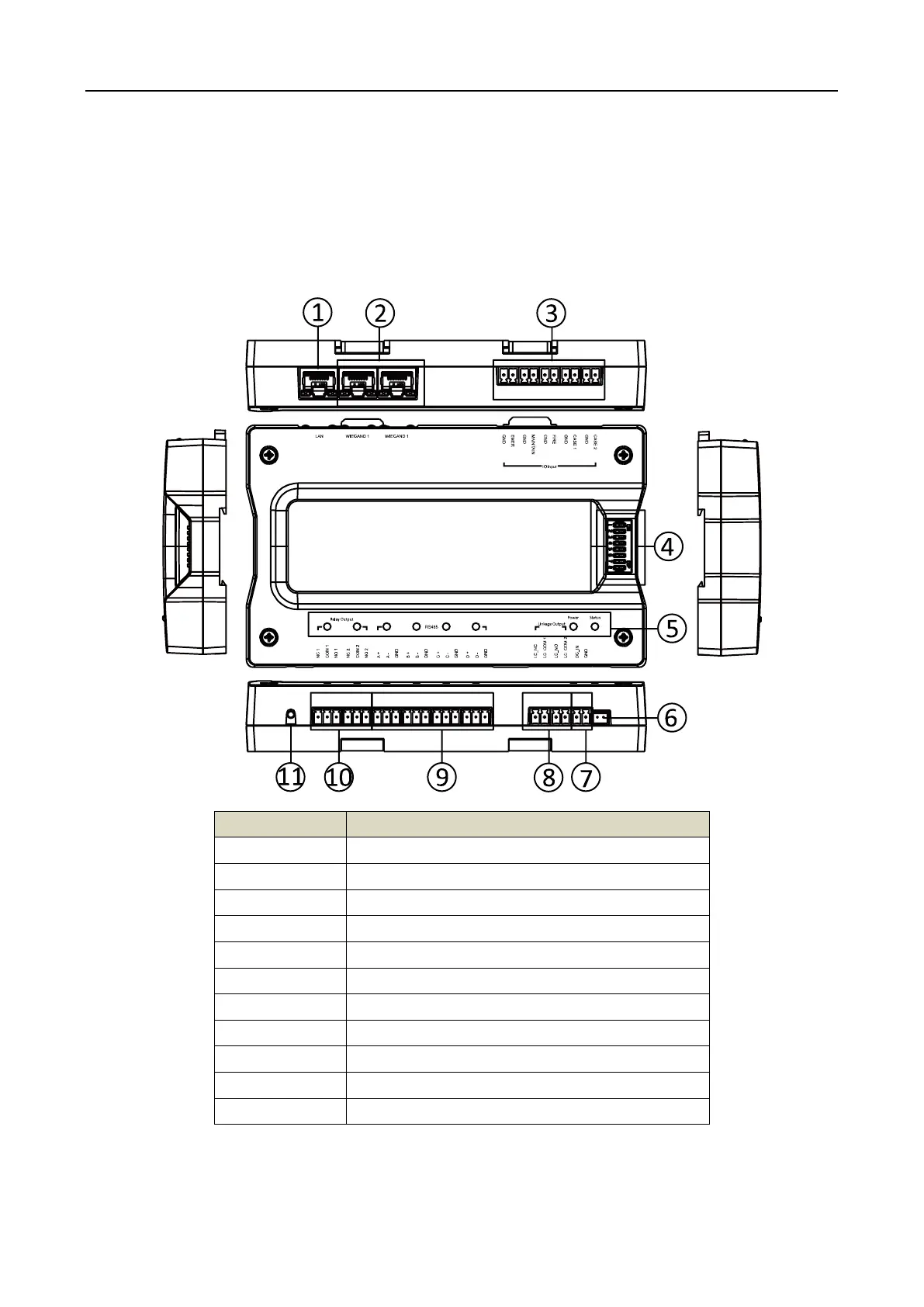

The device appearance introduction is shown as follows:
Table 2-1 Device Appearance Description
No.
Description
1
Tamper-Proof
2
Wiegand Terminal
3
IO Input Terminal
4
DIP Switch (Reserved)
5
Indicator
6
Tamper-Proof Interface
7
Power Input
8
Linkage Output Terminal
9
RS-485 Terminal
10
Relay Output Terminal
11
GND Tread Interface
