Main Elevator Controller User Manual
78

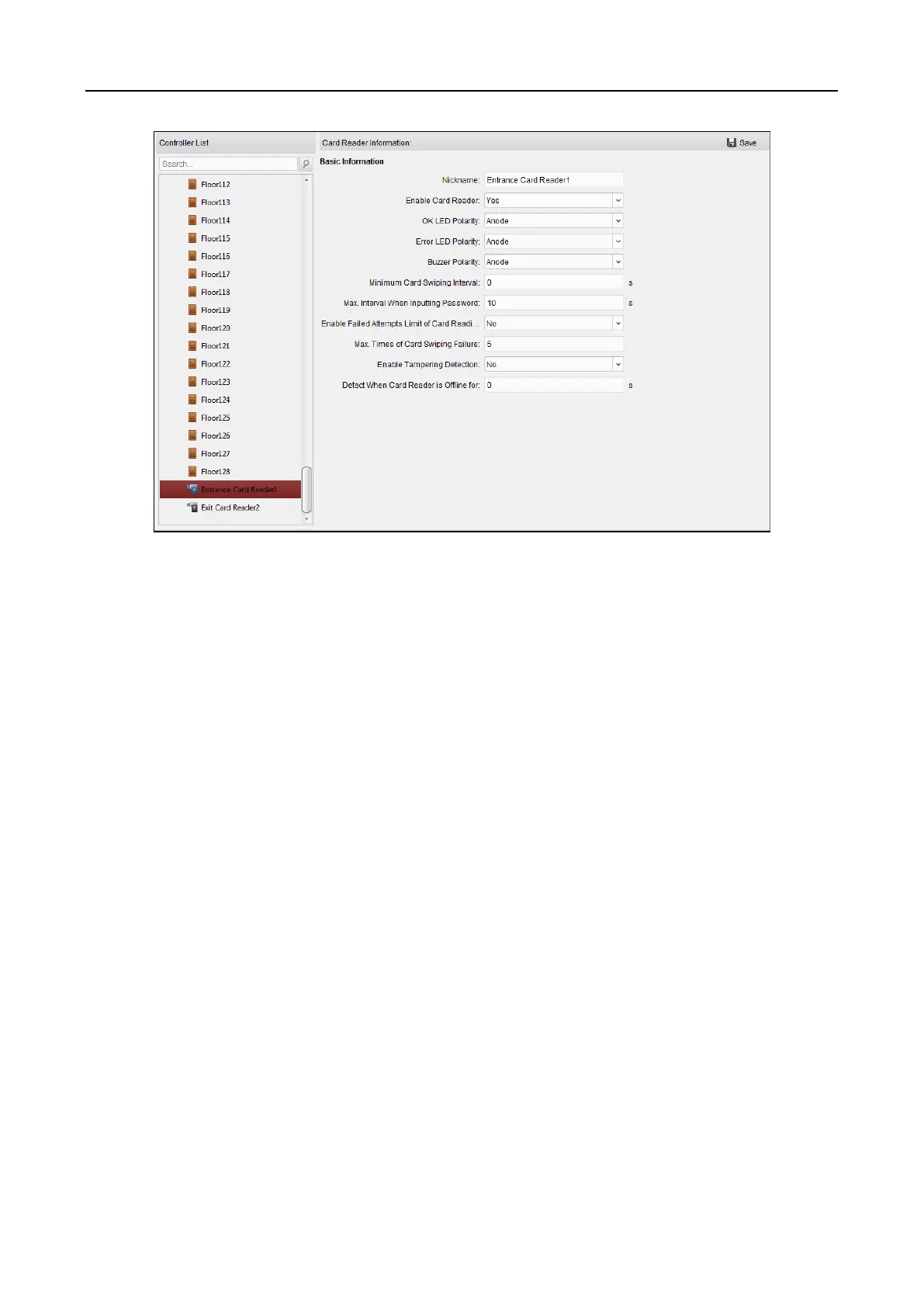

2. You can edit the following parameters:
 Nickname: Edit the card reader name as desired.
 Enable Card Reader: Select Yes to enable the card reader.
 OK LED Polarity: Select the OK LED Polarity of the card reader mainboard.
 Error LED Polarity: Select the Error LED Polarity of the card reader mainboard.
 Buzzer Polarity: Select the Buzzer LED Polarity of the card reader mainboard.
 Minimum Card Swiping Interval: If the interval between card swiping of the same card is
less than the set value, the card swiping is invalid. You can set it as 0 to 255.
 Max. Interval When Inputting Password: When you inputting the password on the card
reader, if the interval between pressing two digits is larger than the set value, the digits
you pressed before will be cleared automatically.
 Enable Failed Attempts Limit of Card Reading: Enable to report alarm when the card
reading attempts reach the set value.
 Max. Times of Card Swiping Failure: Set the max. failure attempts of reading card.
 Enable Tampering Detection: Enable the anti-tamper detection for the card reader.
 Detect When Card Reader is Offline for: When the access control device cannot connect
with the card reader for longer than the set time, the card reader will turn offline
automatically.
7.8.2 Card Reader Authentication
Purpose:
You can set the passing rules for the card reader of the access control device.
Steps:
1. Click Card Reader Authentication tab and select a card reader on the left.

HIKVISION DS-k2210 Specifications

General

DC input voltage	12 V
Power source type	DC
Housing color	Gray
Relay outputs	5

Weight and Dimensions

Depth	167 mm
Width	105 mm
Height	30 mm
