HIKVISION DS-k2210 User Manual

Main Elevator Controller User Manual
81
 The Remain Open Duration should be between 0 and 1440 minutes. By default, it is 10
minutes.
 You can swipe the first card again to disable the first card mode.

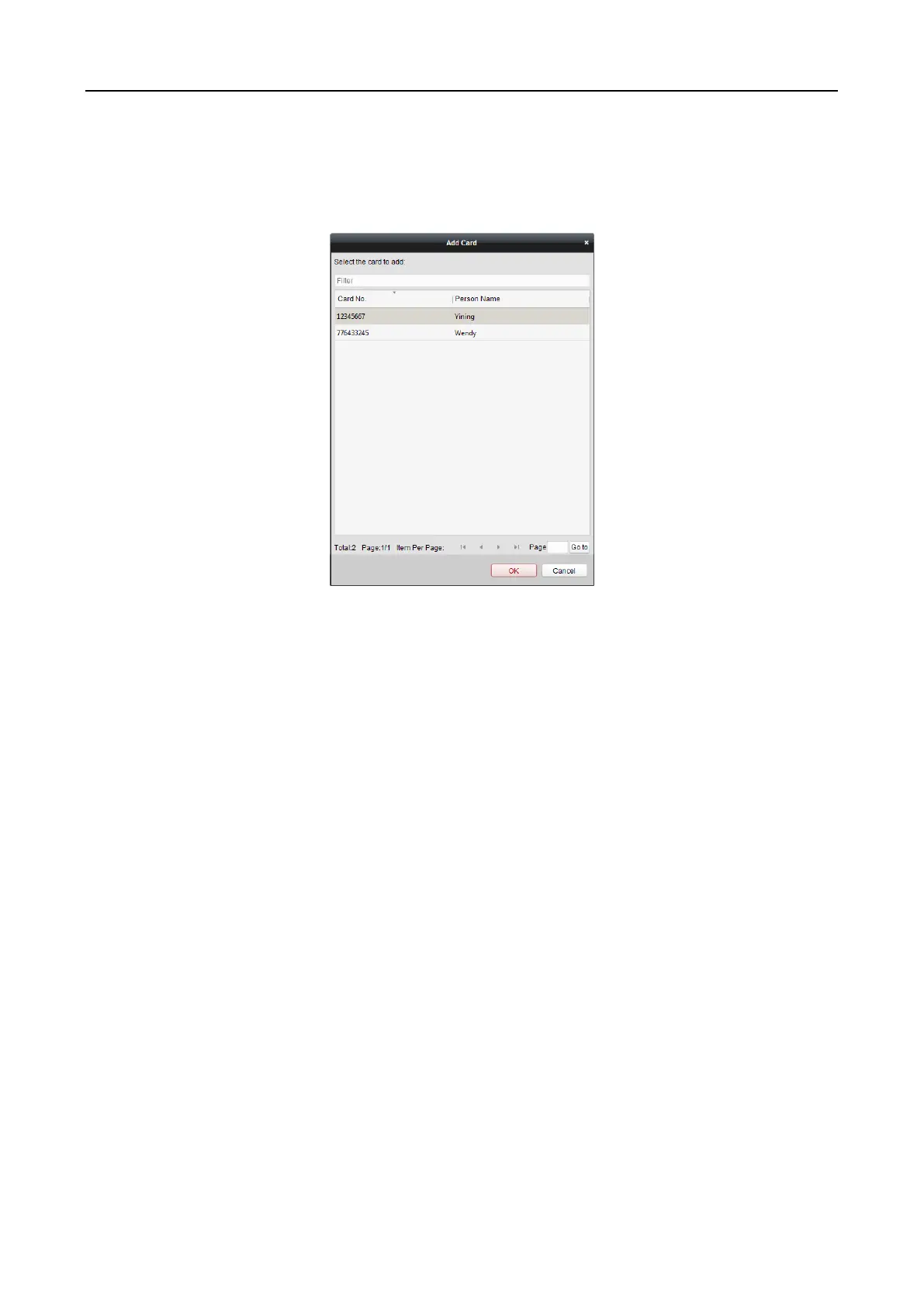

5. In the First Card list, Click Add button to pop up the following dialog box.
1) Select the cards to add as first card for the door
Note: Set the card permission and apply the permission setting to the access control
device first. For details, refer to Chapter 7.7 Permission Configuration.
2) Click OK button to save adding the card.
6. You can click Delete button to remove the card from the first card list.
7. Click Save to save and take effect of the new settings.
7.8.4 Relay Settings
Purpose:
For elevator controller, you can manage the relationship between the floor and the relay in this
chapter.
Configuring Relay and Floor
Steps:
1. Click Relay Settings tab to enter the Relay Settings interface.

HIKVISION DS-k2210 Specifications

General

DC input voltage	12 V
Power source type	DC
Housing color	Gray
Relay outputs	5

Weight and Dimensions

Depth	167 mm
Width	105 mm
Height	30 mm
