Main Elevator Controller User Manual
12
Chapter 4 Device Wiring
When the panic button, the maintenance button, fire alarm button, and the event alarm are
triggered, the main elevator controller will control the distributed controller to perform the linked
actions via the linkage output.

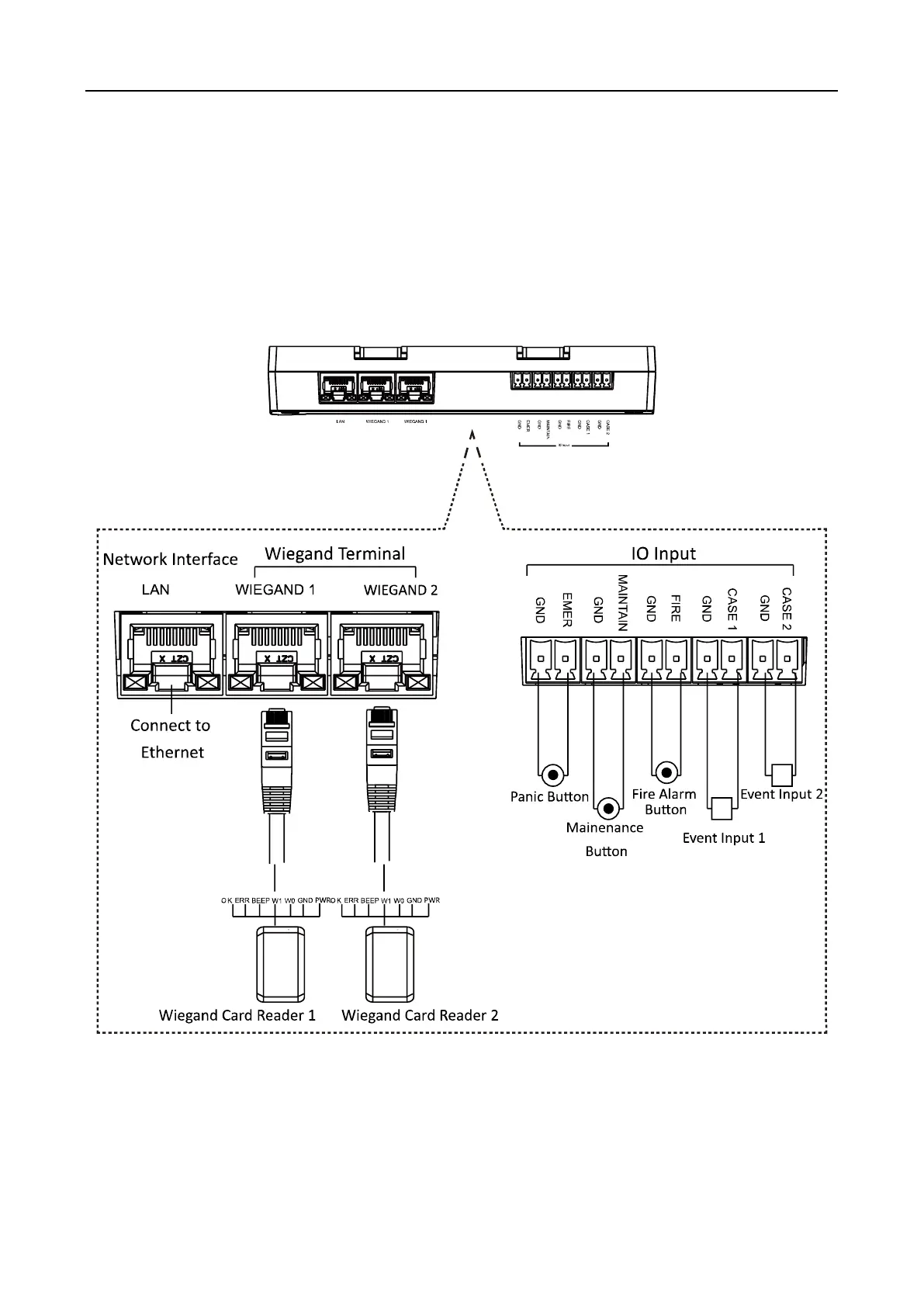

The wiring of the device upper side is as follows:
Notes:
When the panic button is triggered, all relays keep connected. It is valid for all floors.
When the fire alarm button is triggered, all relays keep disconnected. It is invalid for all floors.
When the maintenance button is triggered, all relays keep disconnected. It is invalid for all
floors.
