HIKVISION DS-k2210 User Manual

Main Elevator Controller User Manual
13
Cautions
 The maximum power supply for the relay is DC 30 V, 2 A or AC 125 V, 0.5A.
 Confirm with elevator manufacturers on wiring methods to avoid faults caused by wrong
wiring.

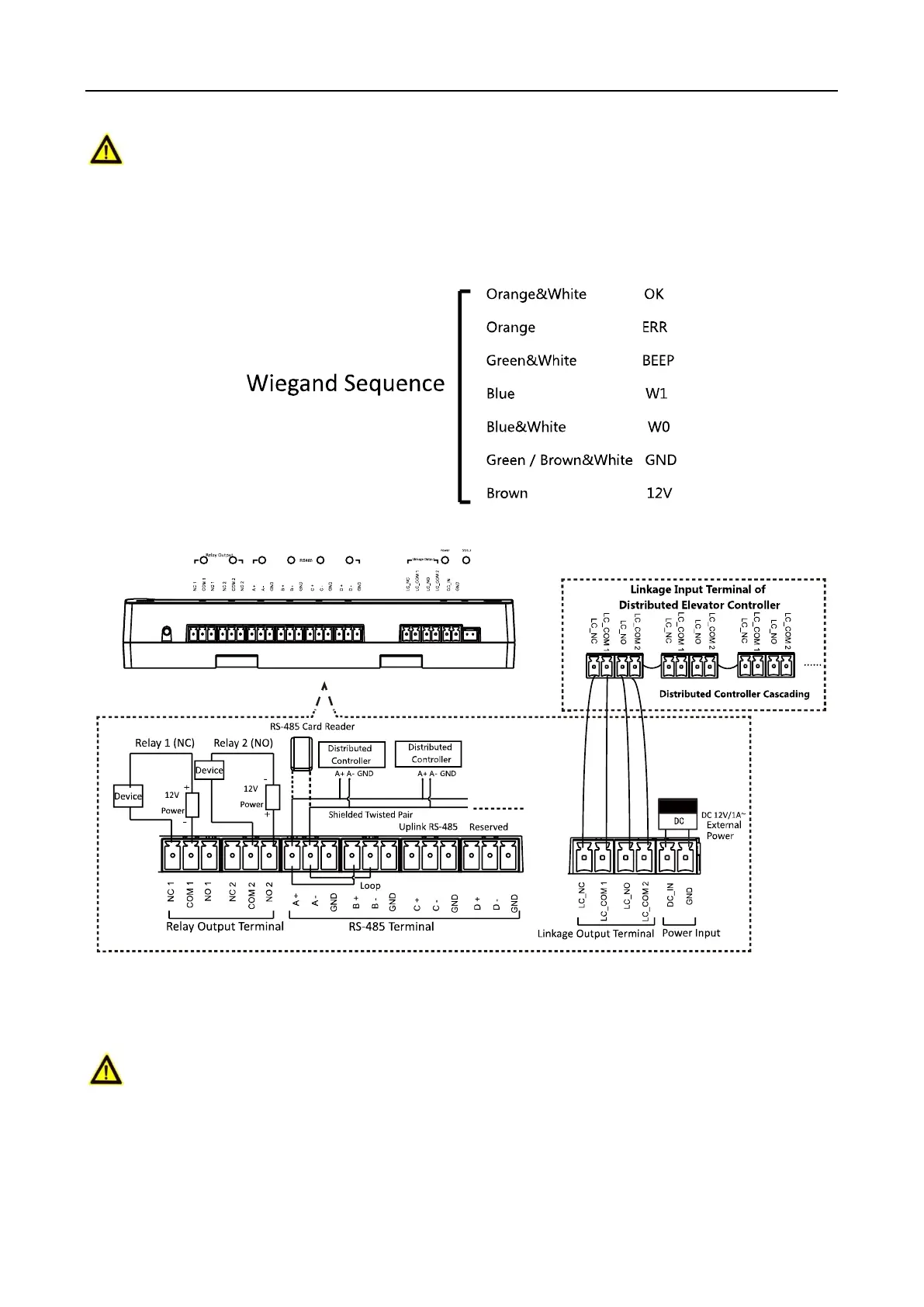

The Wiegand sequence is displayed as follows:
The wiring of the device lower side is displayed as follows:
Notes:
 Each main elevator controller supports up to 24 distributed elevator controllers, including 8
call elevator distributed controllers, 8 auto button distributed controllers, and 8 button
distributed controllers.
Cautions
 The maximum power supply for the relay is DC 30 V, 2 A or AC 125 V, 0.5A.
 Confirm with elevator manufacturers on wiring methods to avoid faults caused by wrong
wiring.

HIKVISION DS-k2210 Specifications

General

DC input voltage	12 V
Power source type	DC
Housing color	Gray
Relay outputs	5

Weight and Dimensions

Depth	167 mm
Width	105 mm
Height	30 mm
