HIKVISION DS-k2210 User Manual

Main Elevator Controller User Manual
77

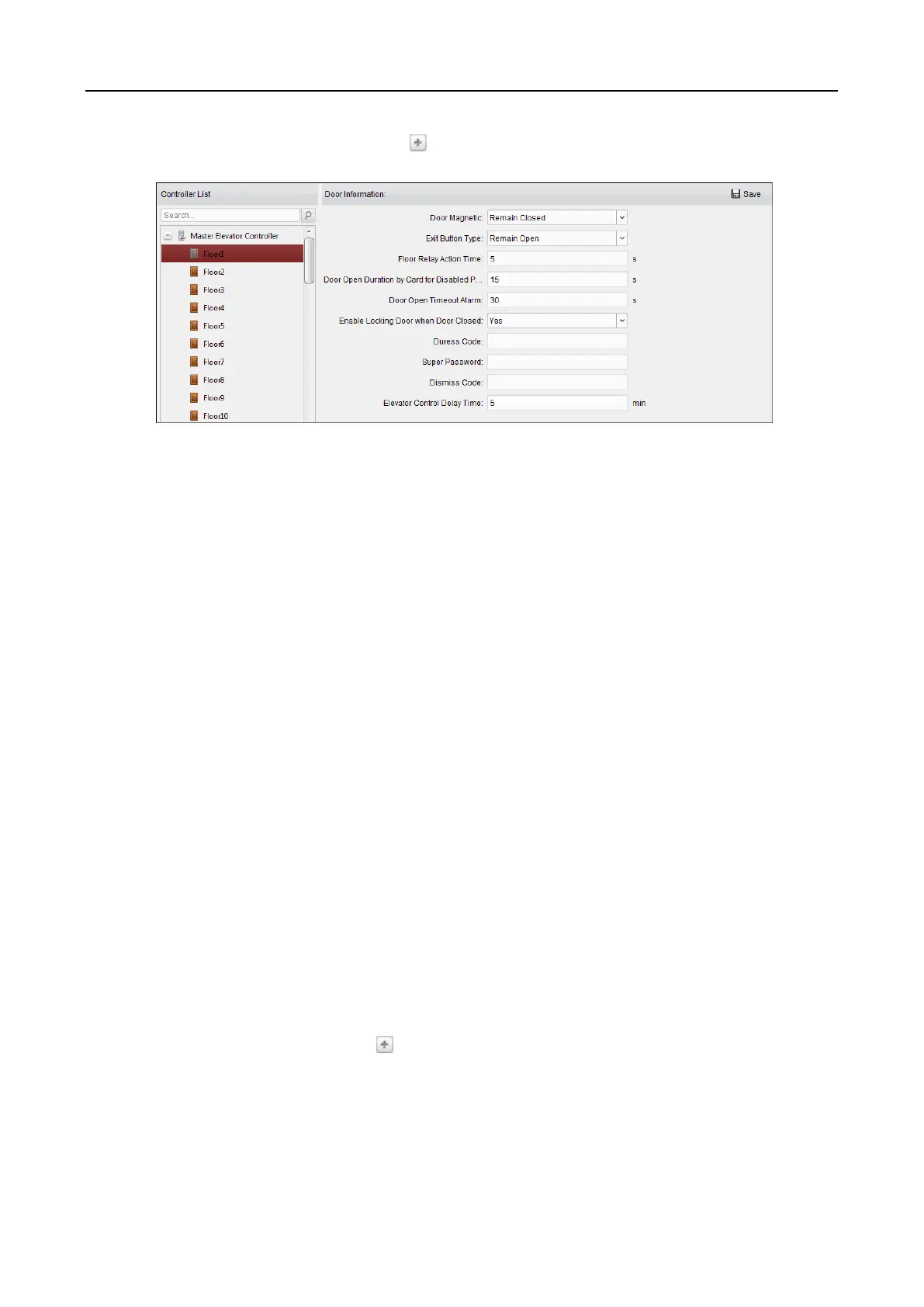

1. In the controller list on the left, click to expand the access control device, select the floor
(access control point) and you can edit the information of the selected floor on the right.
2. You can editing the following parameters:
 Door Magnetic: The Door Magnetic is in the status of Remain Closed (excluding special
conditions).
 Exit Button Type: The Exit Button Type is in the status of Remain Open (excluding special
conditions).
 Floor Relay Action Time: After swiping the normal card and relay action, the timer for
locking the relay starts working.
 Door Extended Open Time: The door magnetic can be enabled with appropriate delay
after swiping the card.
 Door Open Timeout Alarm: The alarm can be triggered if the door has not been closed.
 Enable Locking Door when Door Closed: The door can be locked once it is closed even if
the Door Locked Time is not reached.
 Duress Code: The door can open by inputting the duress code when there is duress. At the
same time, the client can report the duress event.
 Super Password: The specific person can open the door by inputting the super password.
 Dismiss Code: Input the dismiss code to stop the buzzer of the card reader.
 Elevator Control Delay Time: The time duration of the visitor using the elevator.
Notes:
 The duress code, Super password, and dismiss code should be different.
 The duress code, super password, and the dismiss code should be different from the
authentication password.
 The duress code, super password, and the dismiss code should contain 4 to 8 numerics.
3. Click Save button to save parameters.
Card Reader Parameters
Steps:
1. In the device list on the left, click to expand the door, select the card reader name and you
can edit the card reader parameters on the right.

HIKVISION DS-k2210 Specifications

General

DC input voltage	12 V
Power source type	DC
Housing color	Gray
Relay outputs	5

Weight and Dimensions

Depth	167 mm
Width	105 mm
Height	30 mm
