HIKVISION DS-k2210 User Manual

Main Elevator Controller User Manual
41

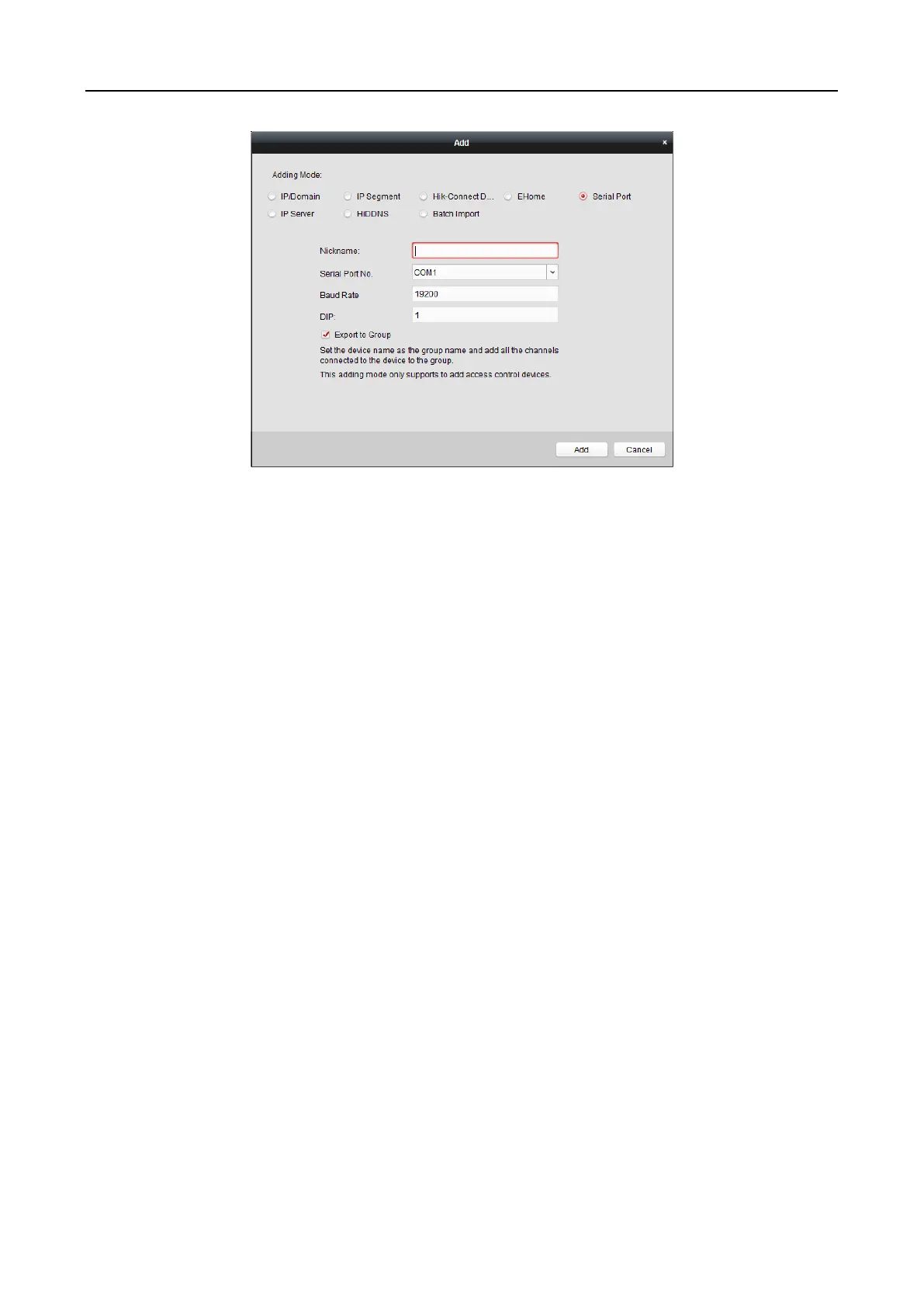

3. Input the required information.
Nickname: Edit a name for the device as you want.
Serial Port No.: Select the device’s connected serial port No.
Baud Rate: Input the baud rate of the access control device.
DIP: Input the DIP address of the device.
4. Optionally, check the Export to Group checkbox to create a group by the device name.
You can import all the channels of the device to the corresponding group by default.
Note: iVMS-4200 also provides a method to add the offline devices.
1) Check the Add Offline Device checkbox.
2) Input the required information, including the device channel number and alarm input
number.
3) Click Add.
When the offline device comes online, the software will connect it automatically.
5. Click Add to add the device.
Adding Devices by IP Server
Steps:
1. Click Add to open the device adding dialog box.
2. Select IP Server as the adding mode.

HIKVISION DS-k2210 Specifications

General

DC input voltage	12 V
Power source type	DC
Housing color	Gray
Relay outputs	5

Weight and Dimensions

Depth	167 mm
Width	105 mm
Height	30 mm
