HIKVISION DS-k2210 User Manual

Main Elevator Controller User Manual
52

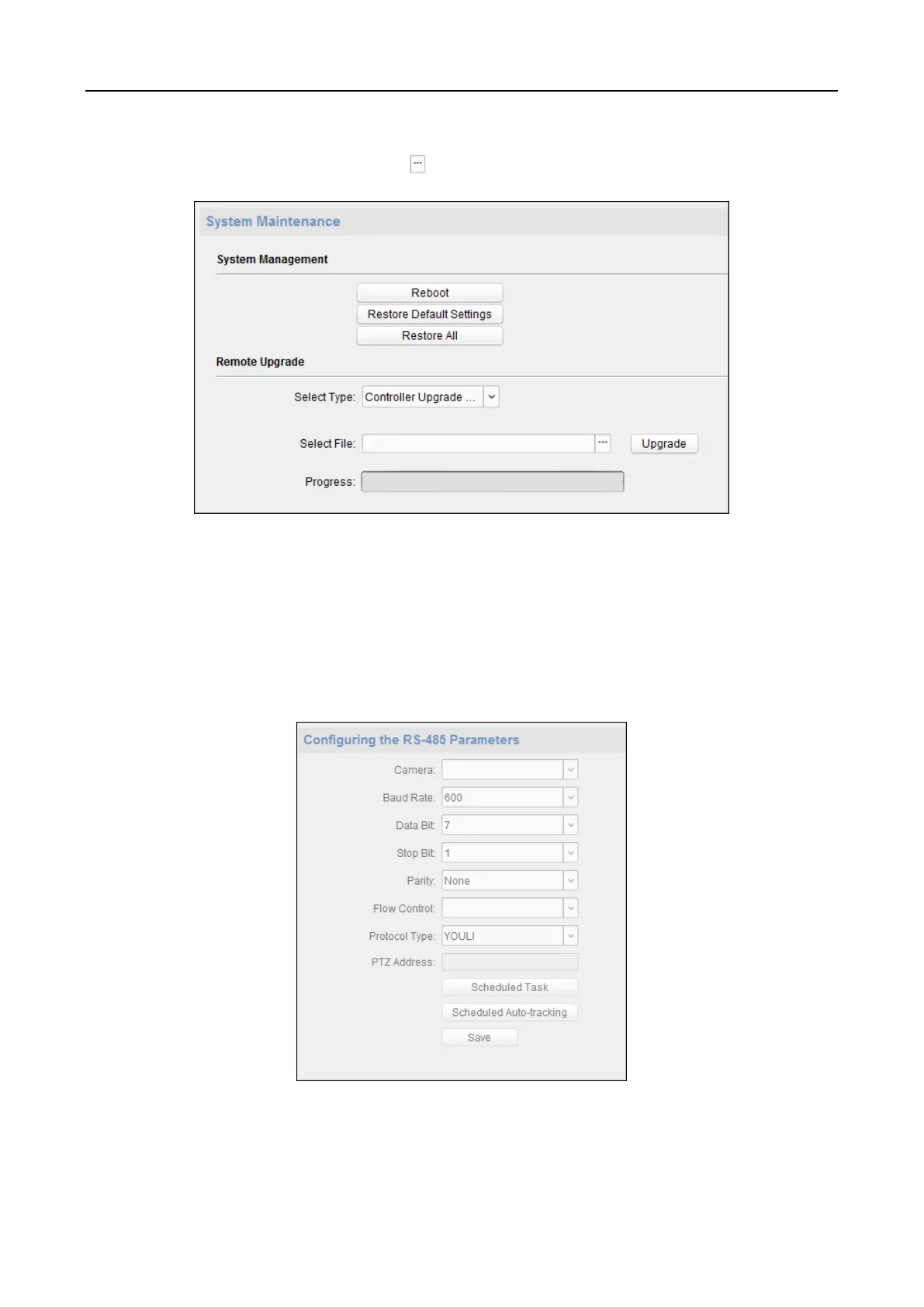

3. You can also remote upgrade the device.
1) In the Remote Upgrade part, click to select the upgrade file.
2) Click Upgrade to start upgrading.
Setting RS-485 Parameters
You can set the device RS-485 parameters to connect peripherals.
Steps:
1. Click System –> RS485 in the Remote Configuration interface.
2. Set the parameters on the page.
3. Click Save to save the settings.
Note: You can also set the RS-485 parameters in Modify window. For details, see 7.3.5 RS-485
Settings.
Searching and Viewing Logs
Click System –> Log and input the search conditions. Click Search to search and view the device

HIKVISION DS-k2210 Specifications

General

DC input voltage	12 V
Power source type	DC
Housing color	Gray
Relay outputs	5

Weight and Dimensions

Depth	167 mm
Width	105 mm
Height	30 mm
