HIKVISION DS-k2210 User Manual

Main Elevator Controller User Manual
61

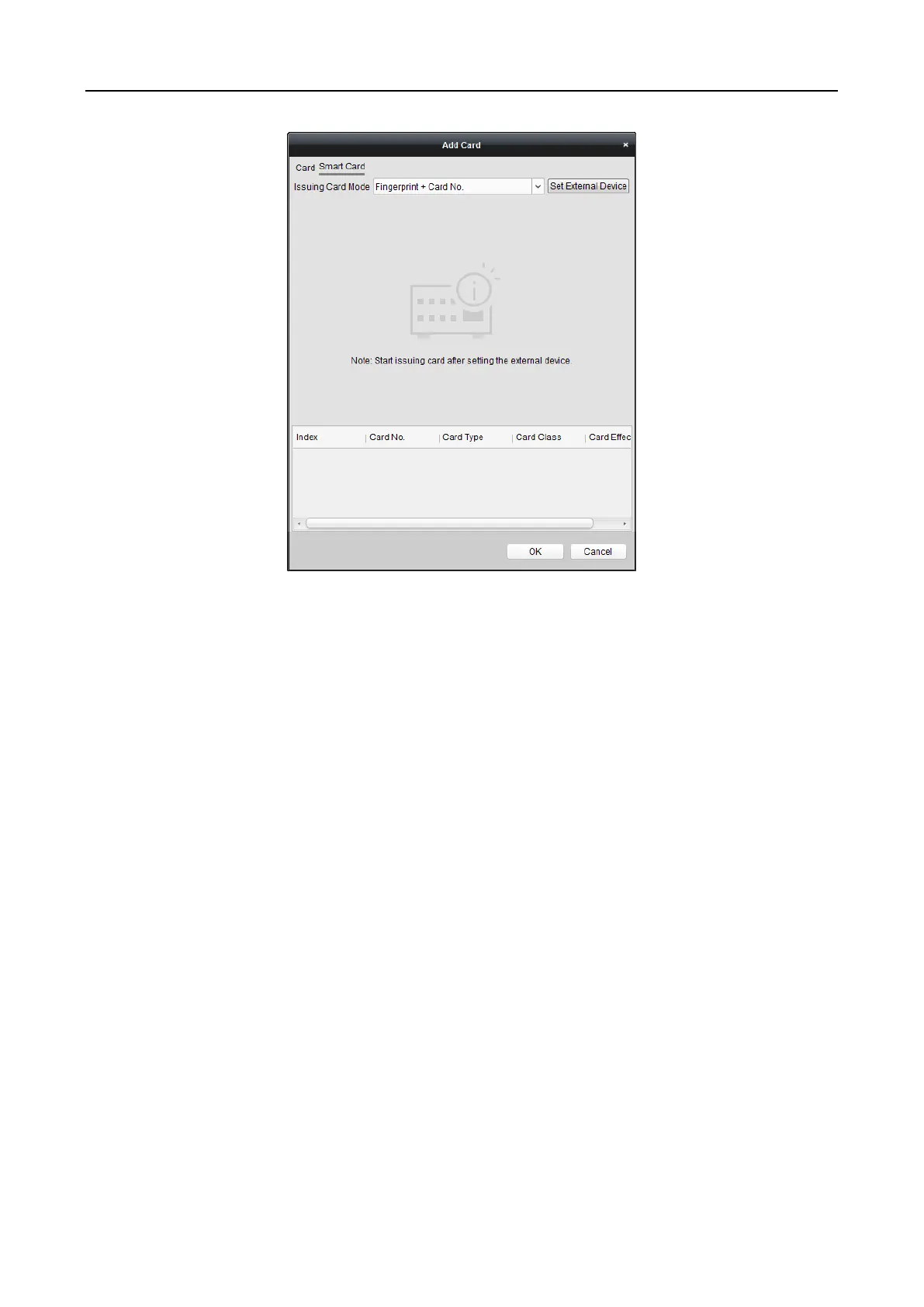

5. Select an issuing card mode from the dropdown list.
6. Set the external device.
1) Click Set External Device to enter the Set External Device page.
2) (Optional) Select the issuing card mode again.
3) Set a card enrollment station.
4) If you select “Fingerprint + Card No.” as the issuing mode, set the fingerprint recorder
model.
If you select “ID Card No. + Card No.” as the issuing mode, set the ID card reader model.
If you select “Fingerprint + ID Card No. + Card No.” as the issuing mode, set the fingerprint
recorder model and the ID card reader model.
5) Click OK save the settings.
7. Select a card type for the smart card.
 Normal Card
 Card for Door Extended Opening: The door will remain open for the configured time
period for the card holder.
 Card in Blocklist: The card swiping action will be uploaded and the door cannot be opened.
 Patrol Card: The card swiping action can used for checking the working status of the
inspection staff. The access permission of the inspection staff is configurable.
 Duress Card: The door can open by swiping the duress card when there is duress. At the
same time, the client can report the duress event.
 Super Card: The card is valid for all the doors of the controller during the configured
schedule.
 Visitor Card: The card is assigned for visitors. For the Visitor Card, you can set the Max.
Swipe Times.

HIKVISION DS-k2210 Specifications

General

DC input voltage	12 V
Power source type	DC
Housing color	Gray
Relay outputs	5

Weight and Dimensions

Depth	167 mm
Width	105 mm
Height	30 mm
