HIKVISION DS-k2210 User Manual

Main Elevator Controller User Manual
90
You can assign to trigger other access control device’s action by setting up a rule when the access
control event is triggered.

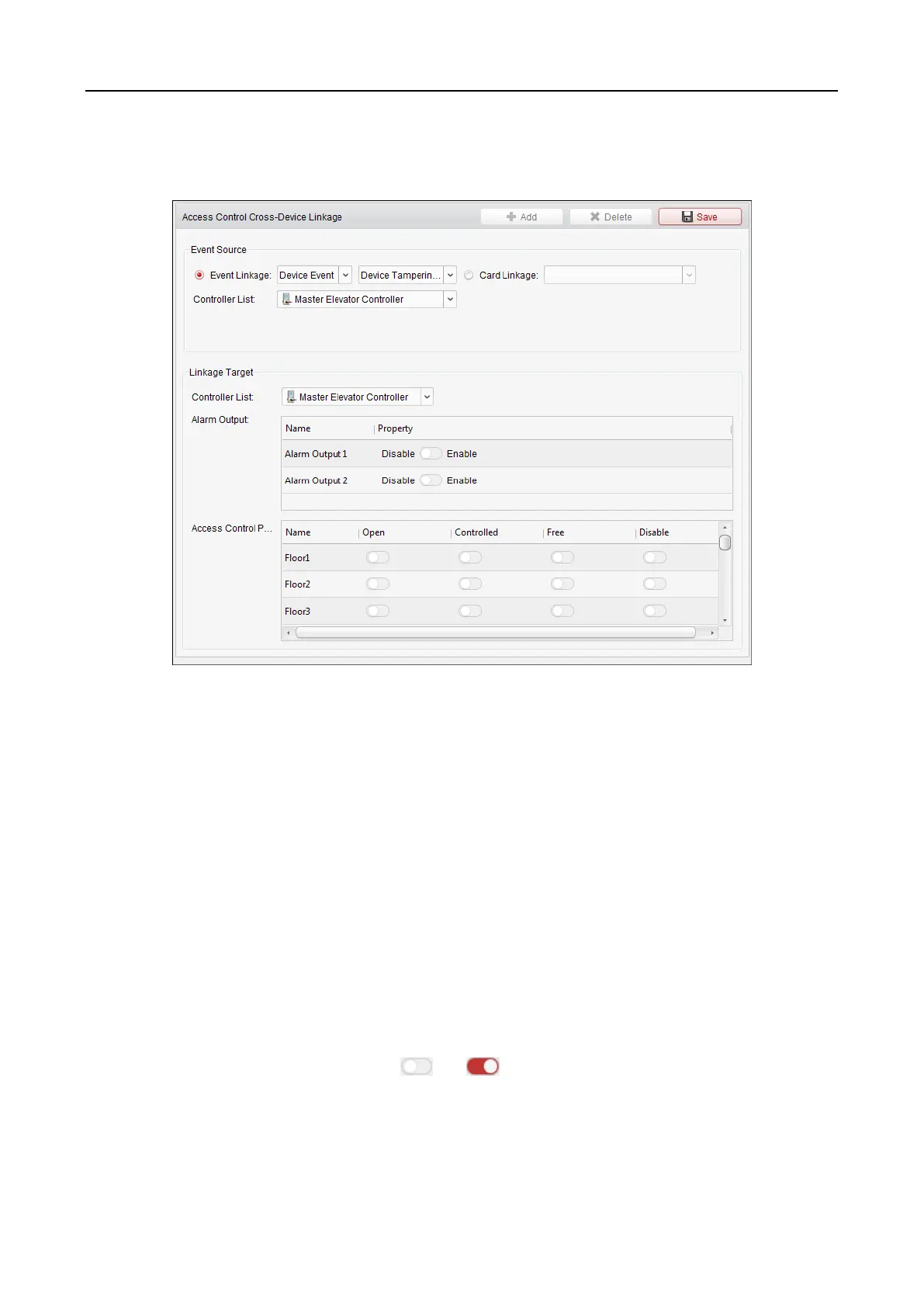

Click Cross-Device Linkage tab to enter the following interface.
Click Add button to add a new client linkage. You can select the event source as Event Linkage or
Card Linkage.
Event Linkage
For the event linkage, the alarm event can be divided into four types: device event, alarm input,
door event, and card reader event.
Steps:
1. Click to select the linkage type as Event Linkage, select the access control device as event
source, and select the event type from the dropdown list.
 For Device Event, select the detailed event type from the dropdown list.
 For Alarm Input, select the type as alarm or alarm recovery and select the alarm input
name from the table.
 For Door Event, select the detailed event type and select the door from the table.
 For Card Reader Event, select the detailed event type and select the card reader from the
table.
2. Set the linkage target, select the access control device from the dropdown list as the linkage
target, and switch the property from to to enable this function.
 Alarm Output: The alarm output will be triggered for notification.
 Access Control Point: The door status of open, close, remain open, and remain close will
be triggered.

HIKVISION DS-k2210 Specifications

General

DC input voltage	12 V
Power source type	DC
Housing color	Gray
Relay outputs	5

Weight and Dimensions

Depth	167 mm
Width	105 mm
Height	30 mm
