HIKVISION DS-KD7003EY-IME2 User Manual
4
of 1
of 1 rating
106 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...

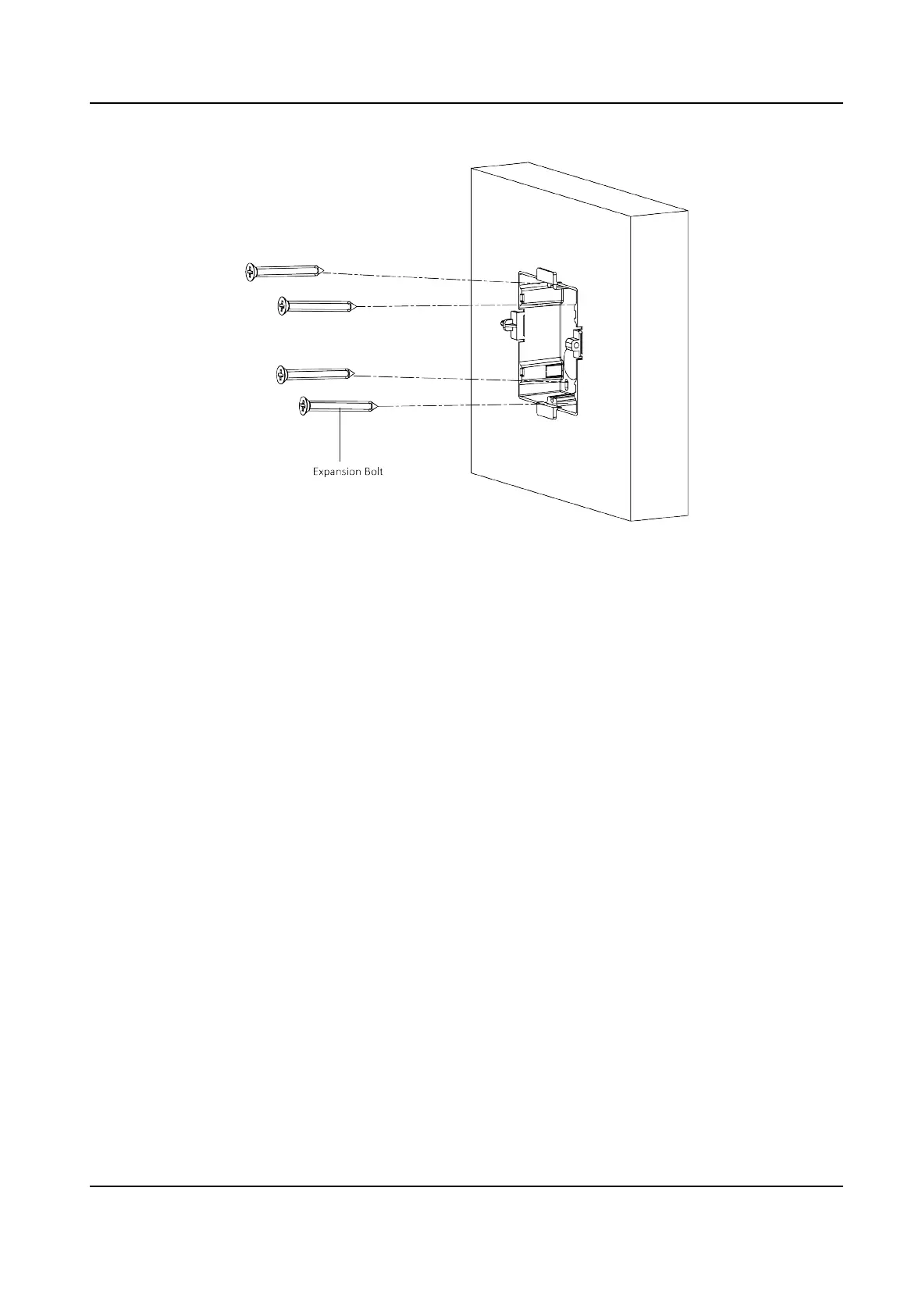

Figure 3-8 Fix the
Mounng
F
ame
6.
Fill the gap be
tween the
mounng
frame and the wall with c
oncrete. R
emove the 4
mounng
ears with t
ool
aer
concrete is dry
.
DS-KD7003EY
-IME2 Module Door
Staon
User Manual
13
23
25
Table of Contents
default chapter
8
Table of Contents
8
Chapter 1 Appearance
12
Chapter 2 Terminal and Wiring
14
Terminal Description
14
Chapter 3 Installation
16
One-Module Installation
17
One-Module Surface Mounting
17
One-Module Flush Mounting
21
Two-Module Installation
28
Two-Module Surface Mounting
28
Two-Module Flush Mounting
34
Three-Module Installation
40
Three-Module Surface Installation
40
Three-Module Flush Mounting
47
Chapter 4 Topology
53
Chapter 5 Cable and Transmission Distance
58
Chapter 6 Typical Application and Flow
59
Chapter 7 Set Device Rotary DIP Switch
60
Chapter 8 Call Indoor Station from Door Station
63
Chapter 9 Unlock Door
64
Chapter 10 Enable AP Mode
65
Enable AP Mode on Device
65
Enable AP Mode on PC Web
65
FAQ of AP Mode
65
Chapter 11 Login Web Browser
68
Chapter 12 Forgot Password
69
Forget Password Via Mobile Web
69
Forget Password Via PC Web
69
Chapter 13 Overview
70
Overview on Mobile Web
70
Overview on PC Web
70
Chapter 14 Person Management
72
Person Management on Mobile Web
72
Person Management on PC Web
73
Chapter 15 Device Management
75
View Room No. Details on Mobile Web
75
Device Management on PC Web
75
Chapter 16 View Device Information
76
View Device Information on Mobile Web
76
View Device Information on PC Web
76
Chapter 17 Time Settings
77
Set Time on Mobile Web
77
Set DST on Mobile Web
78
Set Time on PC Web
78
Set DST on PC Web
79
Chapter 18 Audio Settings
80
Set Audio Parameters on Mobile Web
80
Set Audio Parameters on PC Web
80
Chapter 19 Image Settings
81
Set Image Parameters on Mobile Web
81
Set Image Parameters on PC Web
81
Set OSD (On-Screen Display) on PC Web
82
Crop Target on PC Web
82
Chapter 20 Motion Detection Settings
84
Set Motion Detection on Mobile Web
84
Set Motion Detection on PC Web
84
Chapter 21 Access Control Settings
85
Set Door Parameters on Mobile Web
85
Set Public Password on Mobile Web
85
Set I/O Parameters on Mobile Web
85
Set Door Parameters on PC Web
86
Set Public Password on PC Web
86
Set I/O Parameters on PC Web
86
Chapter 22 Video Intercom Settings
88
Set Call Parameters on Mobile Web
88
Press Button to Call on Mobile Web
88
Set Sub Module on Mobile Web
88
Set Ringtone on PC Web
89
Set Call Parameters on PC Web
89
Press Button to Call on PC Web
89
Set Sub Module on PC Web
90
Chapter 23 Upgrade and Maintenance
91
Upgrade and Maintenance on Mobile Web
91
Upgrade and Maintenance on PC Web
91
Chapter 24 Change Activation/Admin Password
94
Change Administrator's Password on Mobile Web
94
Change Administrator's Password on PC Web
94
Chapter 25 Account Security Settings
96
Set Account Security on Mobile Web
96
Set Account Security on PC Web
96
Chapter 26 View Device Arming/Disarming Information on PC Web
97
Chapter 27 View Online Users on PC Web
98
Chapter 28 Set Notice Publication on PC Web
99
Chapter 29 Device Debugging on PC Web
100
Chapter 30 View Online Document
101
View Online Document on Mobile Web
101
View Online Document on PC Web
101
Chapter 31 View Open Source Software License
102
View Open Source Software License on Mobile Web
102
View Open Source Software License on PC Web
102
Chapter 32 Quick Operation Via Web Browser
103
Change Password Type
103
Select Language
103
Time Settings
103
Administrator Settings
104
Link Video Intercom Devices
105
4
Based on 1 rating
