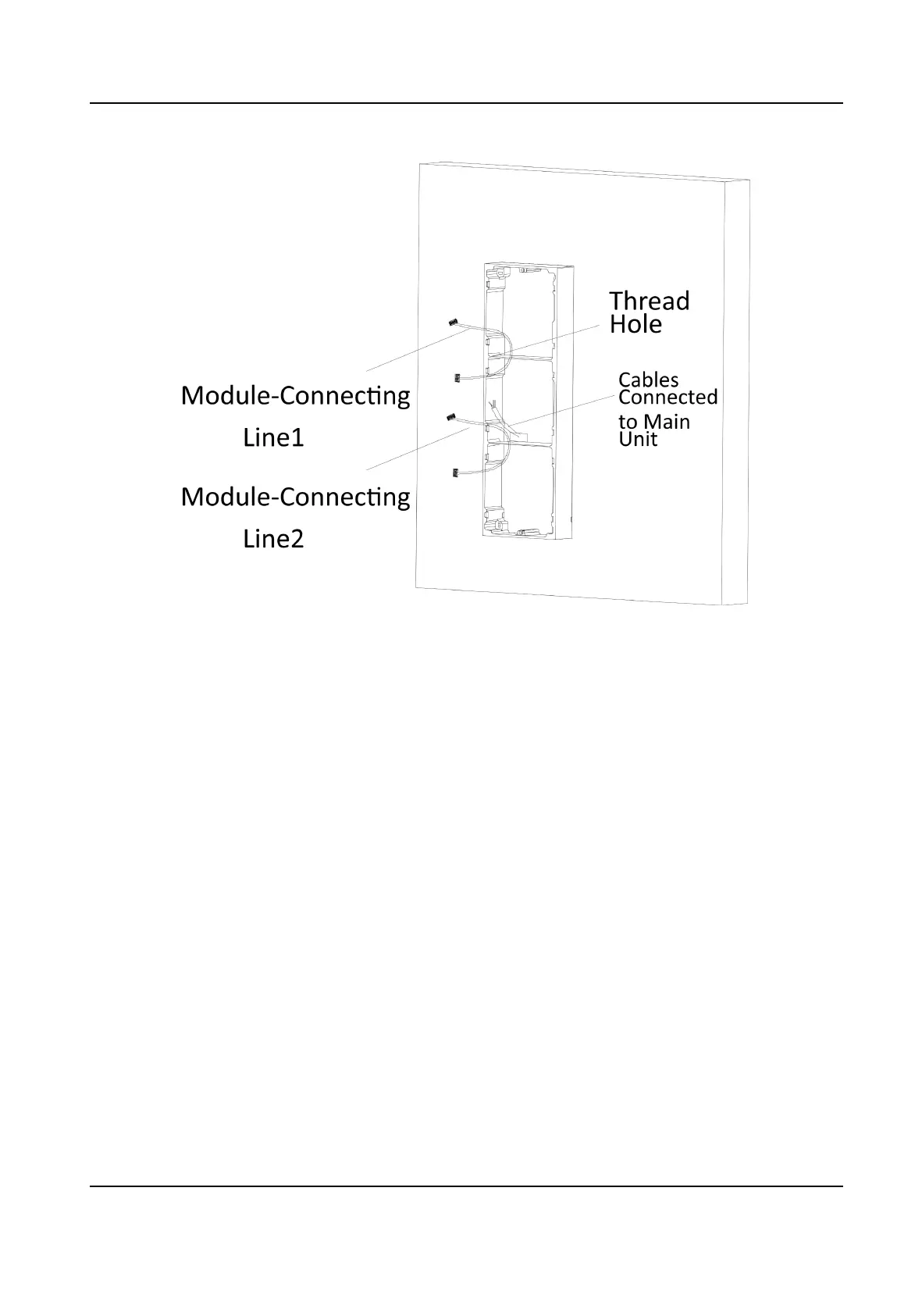

Figure 3-28 Connect the Cables
1) Connect the lines and module-connecng line 1 to the corresponding interfaces of the main
unit, then place the main unit into the upper grid.
2) Connect the other end of the
module-connecng line 1 to the input interface of the sub
module. Connect two sub modules via
module-connecng line 2.
3) Organize the cables with cable e in the package. The suggested cable connecon picture as
shown below.
DS-KD7003EY-IME2 Module Door Staon User Manual
33
