HIKVISION DS-KD7003EY-IME2 User Manual

Figure 3-33 Mark the Screw Holes
4.
Drill 4 holes according to marks on the wall, and insert the expansion sleeves into the screw
holes.
5.

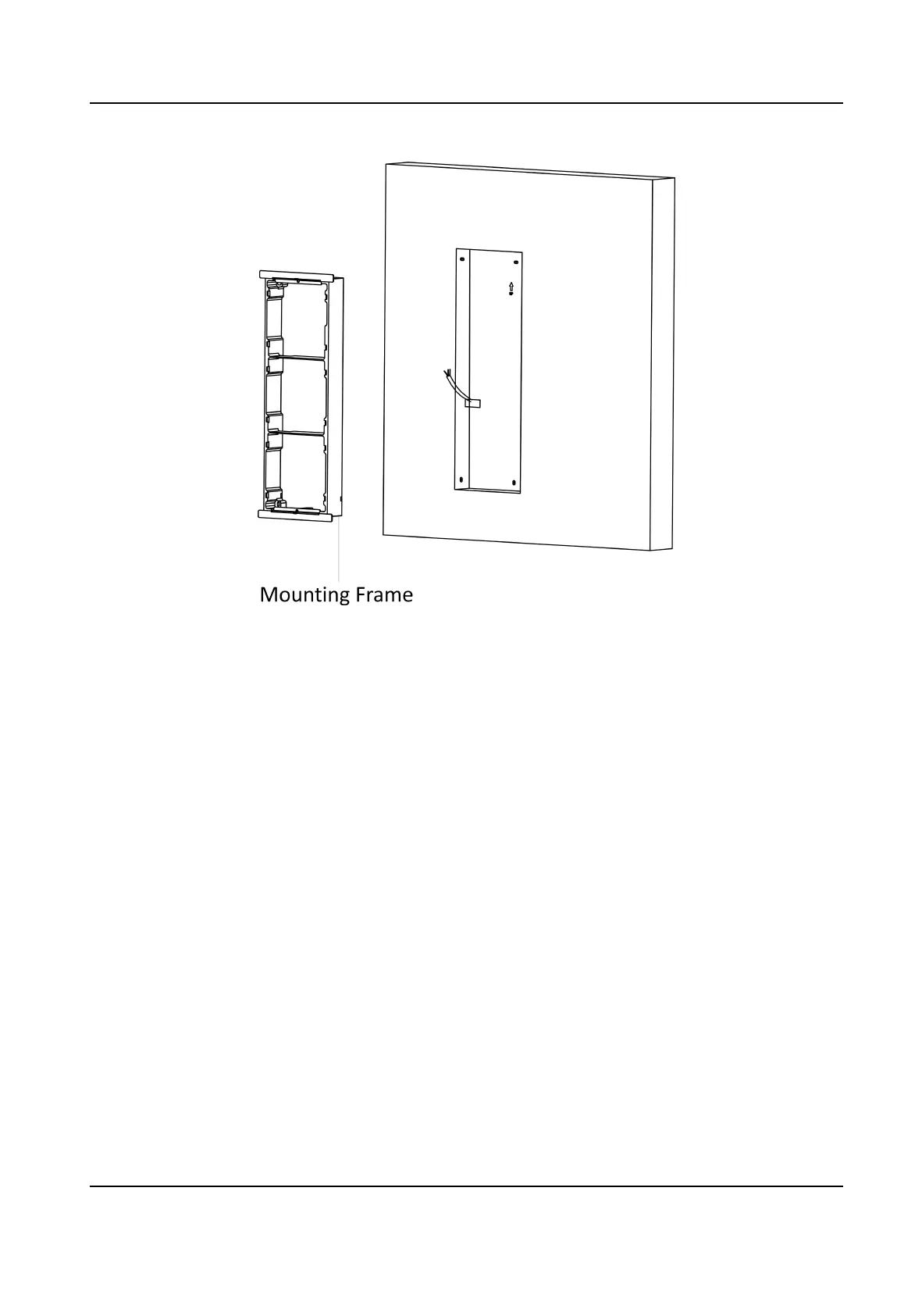

Fix the frame with 4 expansion bolts.
6.
Fill the gap between the
mounng frame and wall with concrete. Remove the mounng ears
with tool aer concrete is dry.
DS-KD7003EY-IME2 Module Door Staon User Manual
38
