Video Intercom Module Door Station·User Manual

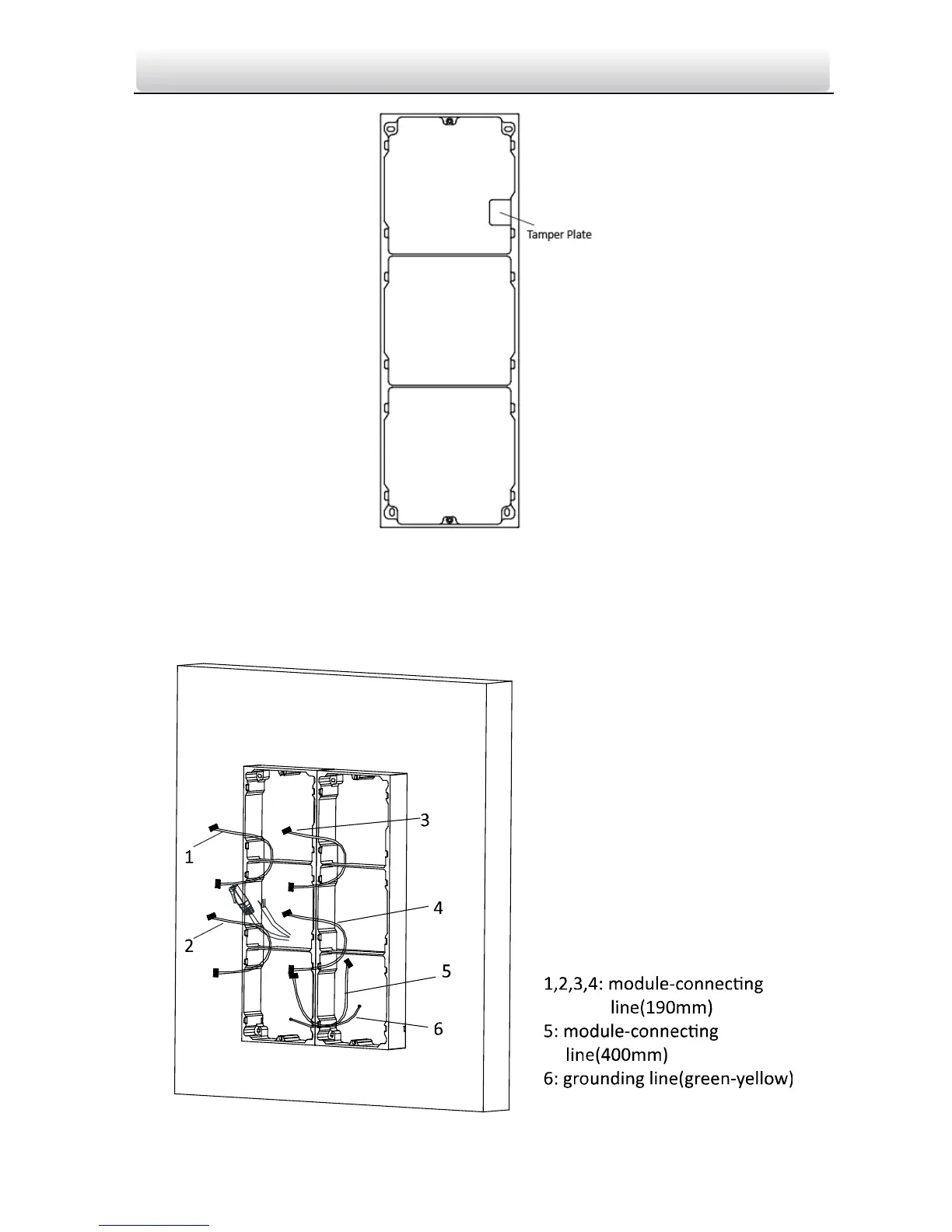

7. Pass the main unit connecting lines across the thread hole to the top grid of the left
frame.
Thread the module-connecting line (190 mm) across the thread hole of the frame.
The lines should be placed as below:
