Video Intercom Module Door Station·User Manual
Figure 4-44 Placement of Lines
8. Connect the cables and module-connecting line 1 to the corresponding interfaces of
the main unit, then place the main unit into the upper grid.
Connect the other end of the module-connecting line1 to the input interface of the
sub module. Connect all sub modules via module-connecting lines.
Organize the line with cable tie in the package. The suggested line connection picture
as below.

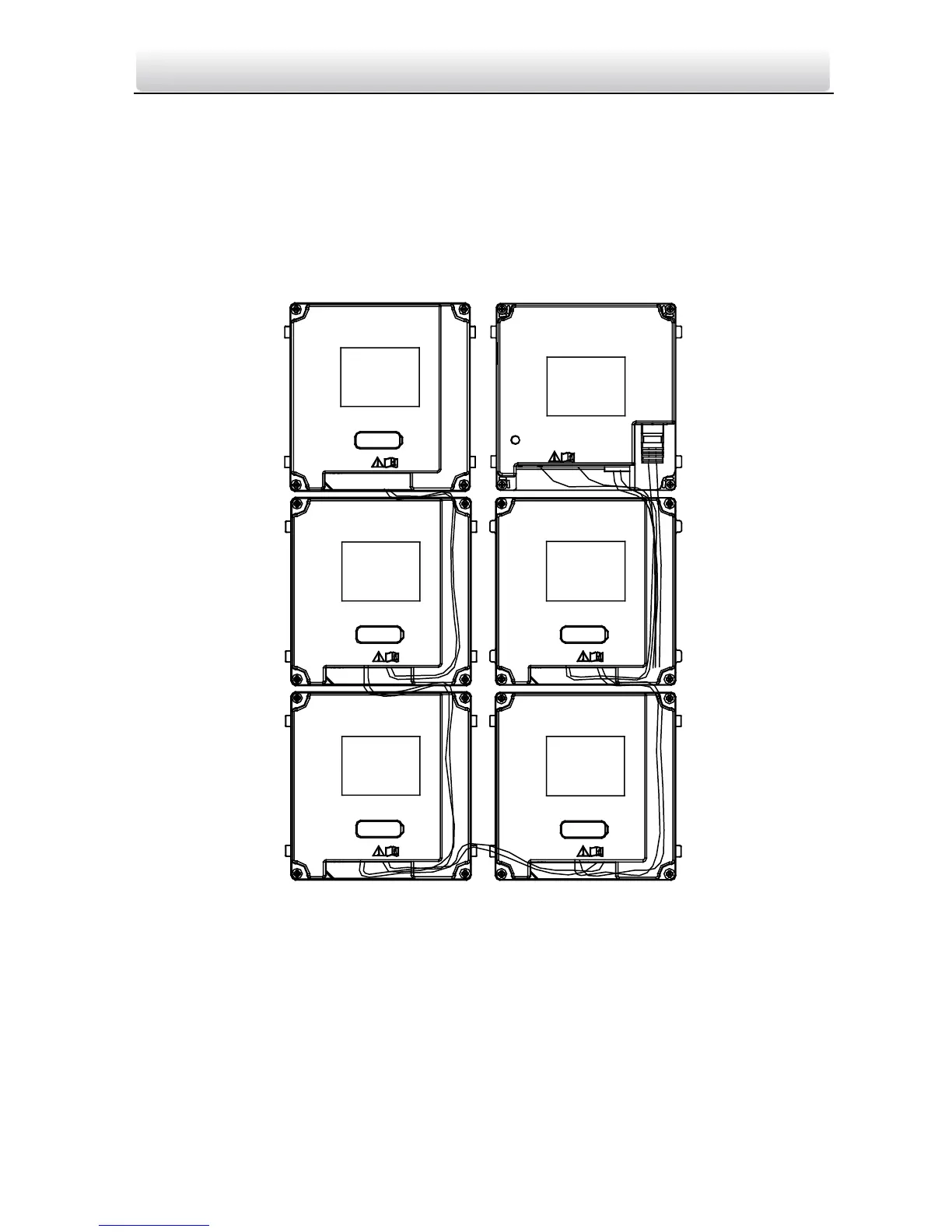

Figure 4-45 Line Connection Effect Picture
9. Insert the modules in to the frame after wiring. Main unit must be placed in the top
grid on the left.
To Next Page
