3.2.2 Door Contact Wiring

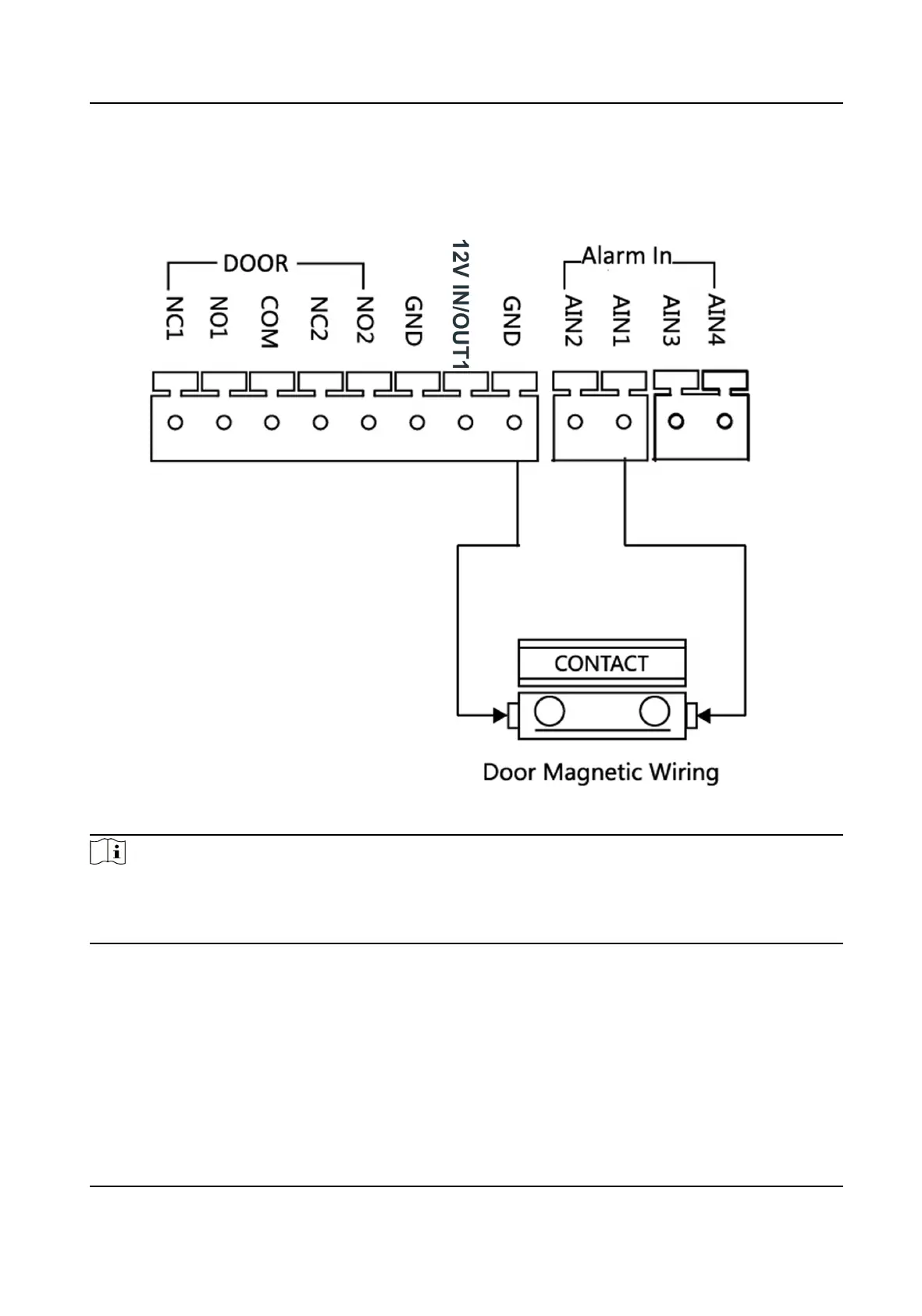

Figure 3-6 Door Contact Wiring
Note
AIN1 and AIN2 are defaulted to connect door contact. Door contact connected to AIN1 detects
status of the lock that connected to NC1/NO1; Door contact connected to AIN2 detects the status
of the lock connected to NC2/NO2.
