Note
It takes two three-module gang boxes. The dimension of the gang box is: 338.8 (W) × 134 (H) × 56
(D) mm. The dimension is for reference only.
Steps
1.
Drill the installaon hole, and pull the cable out.The suggested dimension of installaon hole is
321.8 (W) × 315 (H) × 45.5 (D) mm. The suggested length of cables
le outside is 270 mm.

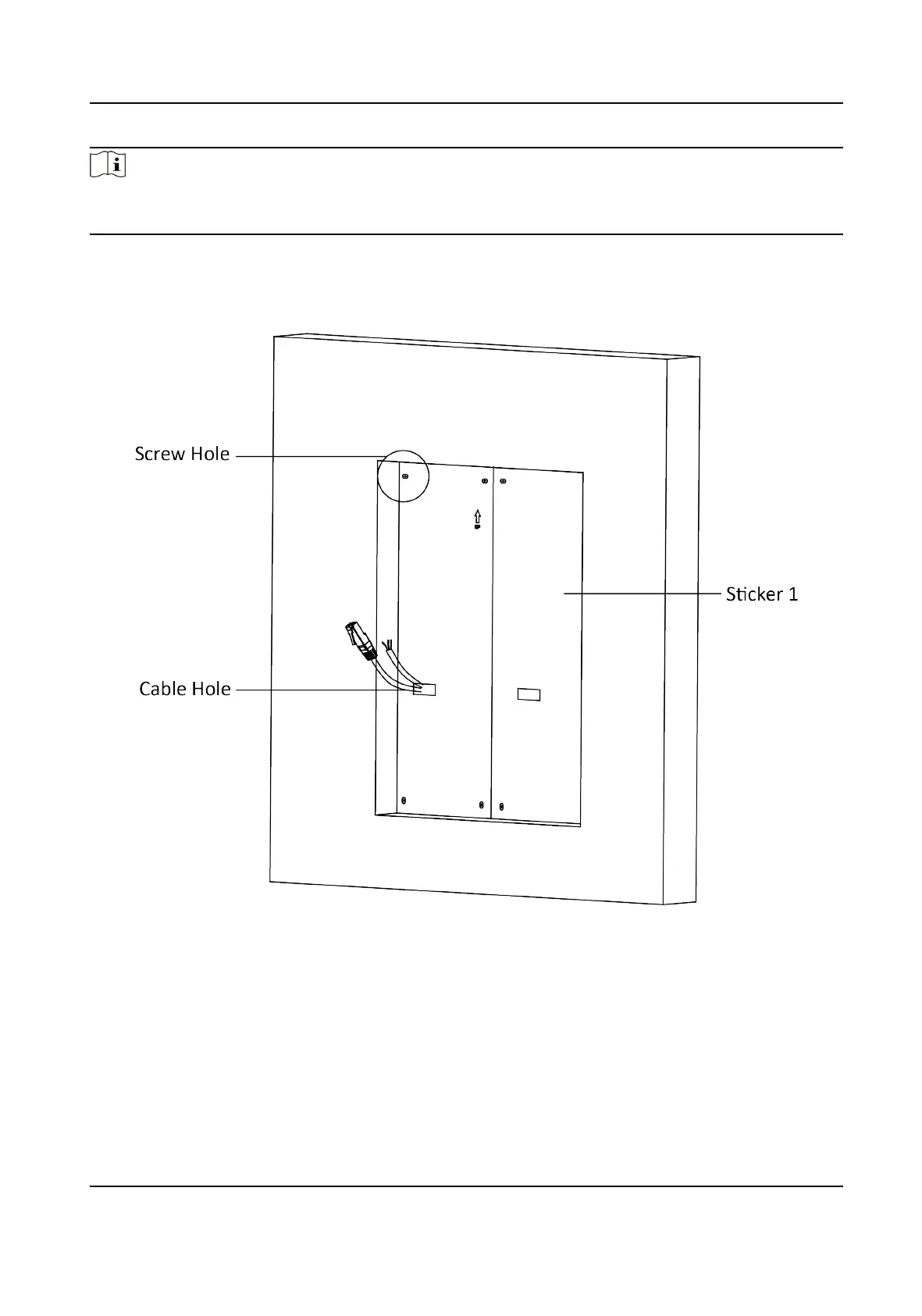

Figure 4-53 Cave the Installaon Hole
2.
Connect two gang boxes as below.
