HIKVISION DS-KH6350-WTE1 User Manual

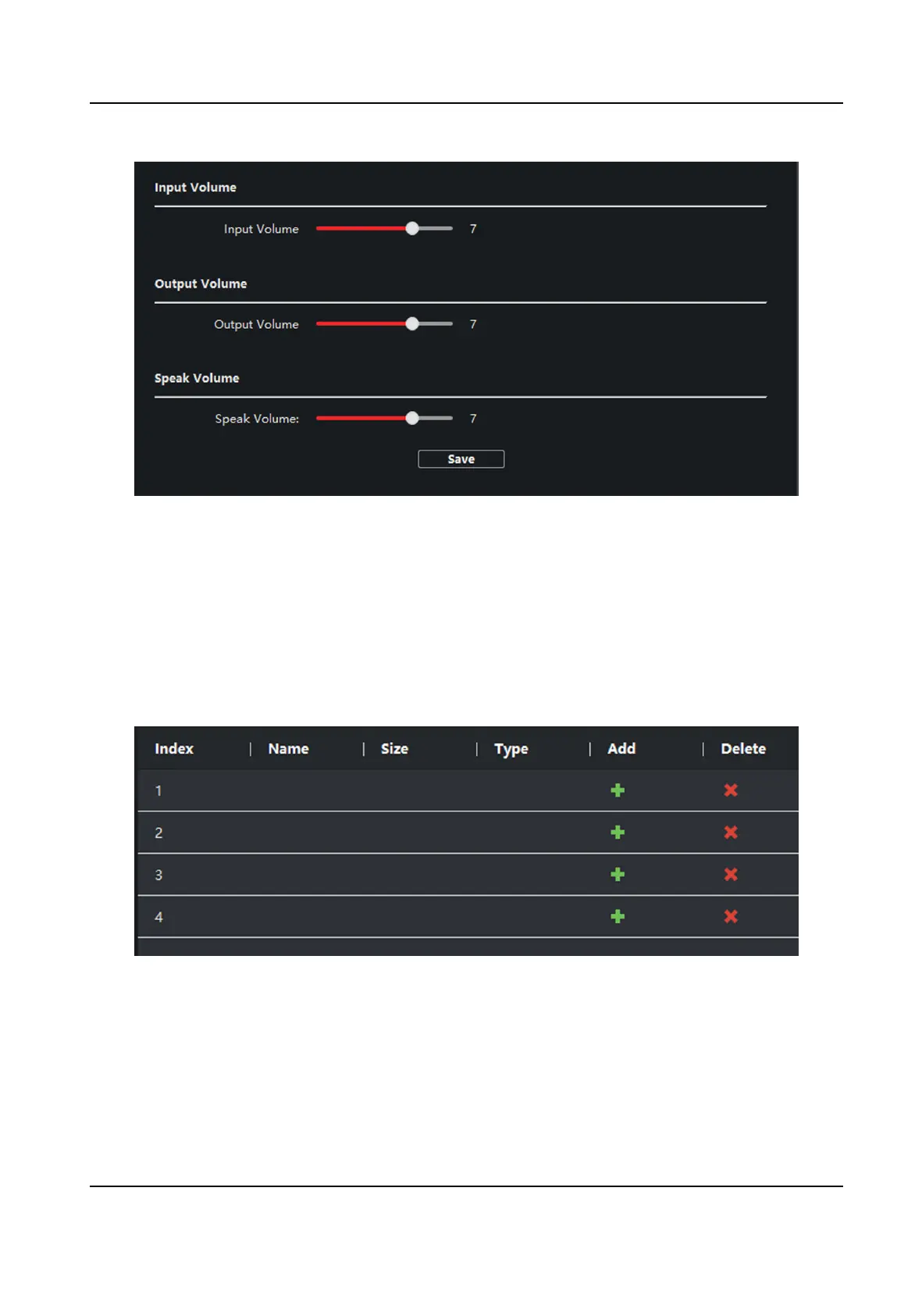

Figure 4-14 Volume Input or Output
2.
Slide the slider to adjust the input volume, output volume and speak volume.
3.
Click Save to enable the
sengs.
Ring Import
Steps
1.
Click Ring Import to enter the ring
conguraon page.
Figure 4-15 Ring Import
2.
Click + to add the ring, and click x to delete the imported ring.
Network Indoor Staon Conguraon Guide
56

HIKVISION DS-KH6350-WTE1 Specifications

General

Color	Yes
Connectivity technology	Wired & Wireless
Number of displays supported	1
Maximum number of cameras supported	-
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	128 GB
Flash memory	32 MB
Internal memory	128 MB
Alarm input channels	8
Operating system installed	Embedded LINUX
Package weight	683 g
Outdoor unit included	No
Display diagonal	7 \
Touchscreen type	Capacitive
Display resolution	1024 x 600 pixels
Display technology	TFT
Product color	Black
Voice codecs	G.711a, G.711u
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, SIP, RTSP
Power consumption (typical)	8 W

Weight and Dimensions

Depth	21 mm
Width	175 mm
Height	113.5 mm
Weight	355 g
