HIKVISION Network Audio/Video Encoder

User Manual of DS-6700 Series Audio/Video Encoder
11
DS-6704HWI/HFI:

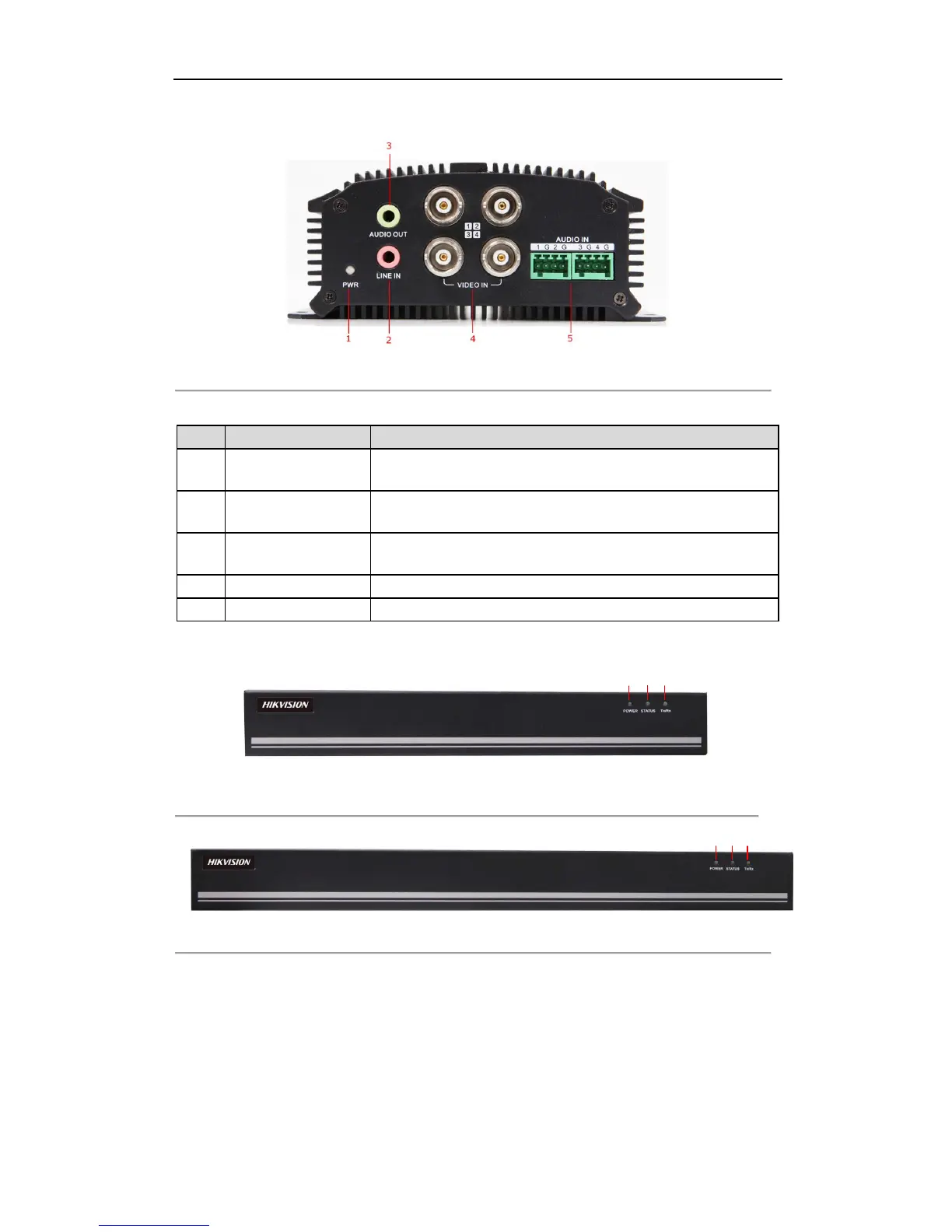

Figure 2.2 Front Panel of DS-6704HWI/HFI
Table 2.2 Front Panel of DS-6704HWI/HFI
Item
Description
1
POWER LED
Indicator
Light in red when the device is powered on; light in orange
when the SD card is inserted.
2
LINE IN
3.5mm two-way audio input interface; connect to active
pick-up, microphone, etc.
3
AUDIO OUT
3.5mm interface; connect to audio output device, e.g.,
loudspeaker, etc.
4
VIDEO IN
BNC interface for video input.
5
AUDIO IN
Line input interface for audio input.
DS-6708/6716 and DS-6701/6704/6708/6716-SATA:
1
2
3
Figure 2.3 Front Panel of DS-6708 and DS-6701/6704/6708-SATA
1 2 3
Figure 2.4 Front Panel of DS-6716 and DS-6716-SATA
