HIKVISION Network Audio/Video Encoder User Manual

User Manual of DS-6700 Series Audio/Video Encoder
10
Chapter 2 Structure
2.1 Front Panel
DS-6701HWI/HFI:

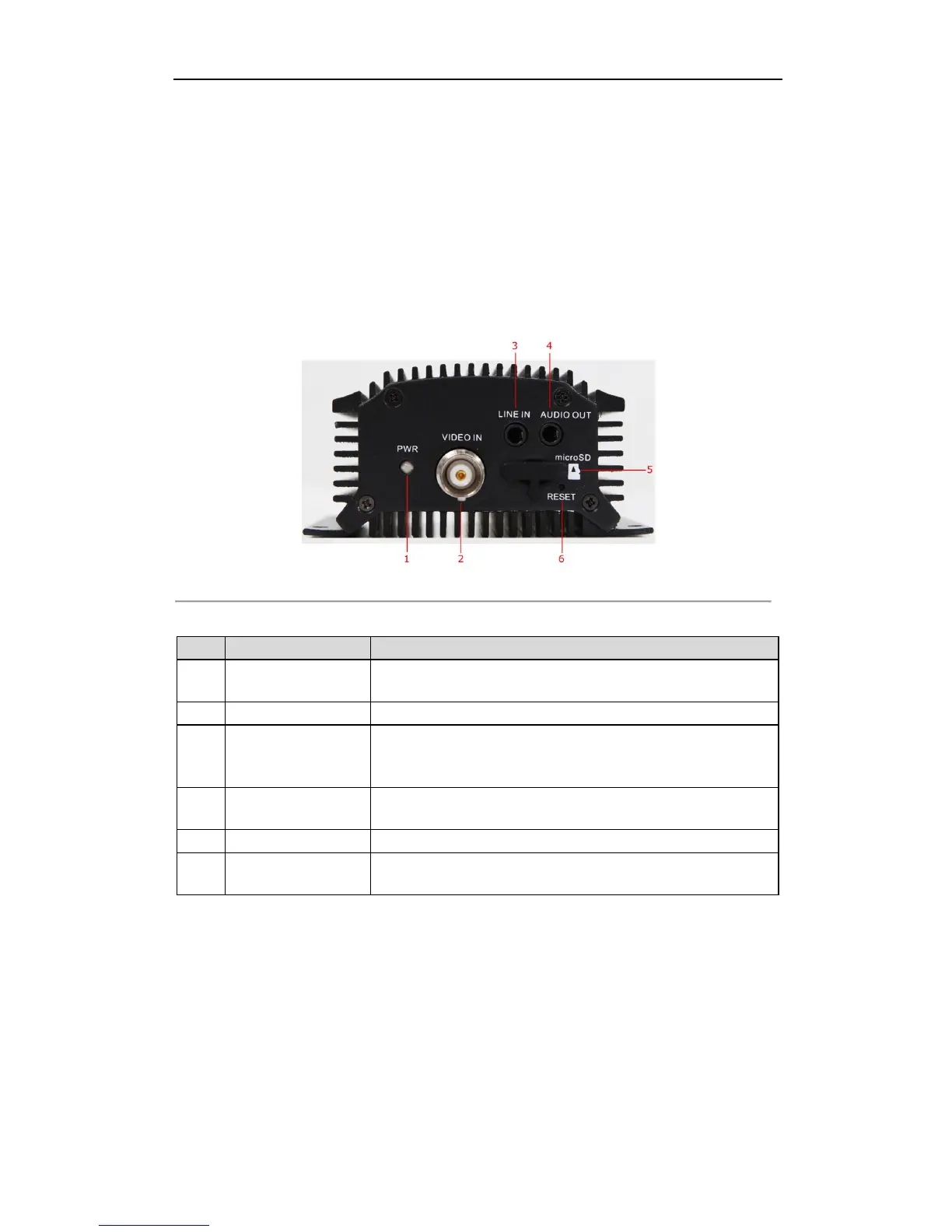

Figure 2.1 Front Panel of DS-6701HWI/HFI
Table 2.1 Front Panel of DS-6701HWI/HFI
Item
Description
1
POWER LED
Indicator
Light in red when the device is powered on; light in orange
when the SD card is inserted.
2
VIDEO IN
BNC connector for video input.
3
LINE IN
3.5mm interface for two-way audio input or audio input;
connect to audio input device or active pick-up, microphone,
etc.
4
AUDIO OUT
3.5mm interface; connect to audio output device, e.g.,
loudspeaker, etc.
5
microSD
microSD interface for data storage.
6
Reset
Restore the factory default settings by holding the RESET
button for more than 15 seconds after power is turned on.
