HIKVISION Network Audio/Video Encoder User Manual

User Manual of DS-6700 Series Audio/Video Encoder
12
Table 2.3 Front Panel of DS-6708/6716 and DS-6701/6704/6708/6716-SATA
Indicator
Description
1
POWER
Lights in red when the device is powered on.
2
STATUS
Lights in red when data is being read from or written to HDD.
Valid for DS-6708HWI/HFI-SATA model only.
3
Tx/Rx
1. Does not light when the network is not connected;
2. Blinks in green when the data is transmitting / receiving;
3. Blinks at higher frequency when the data for transmitting /
receiving is larger.
2.2 Rear Panel
DS-6701HWI/HFI:

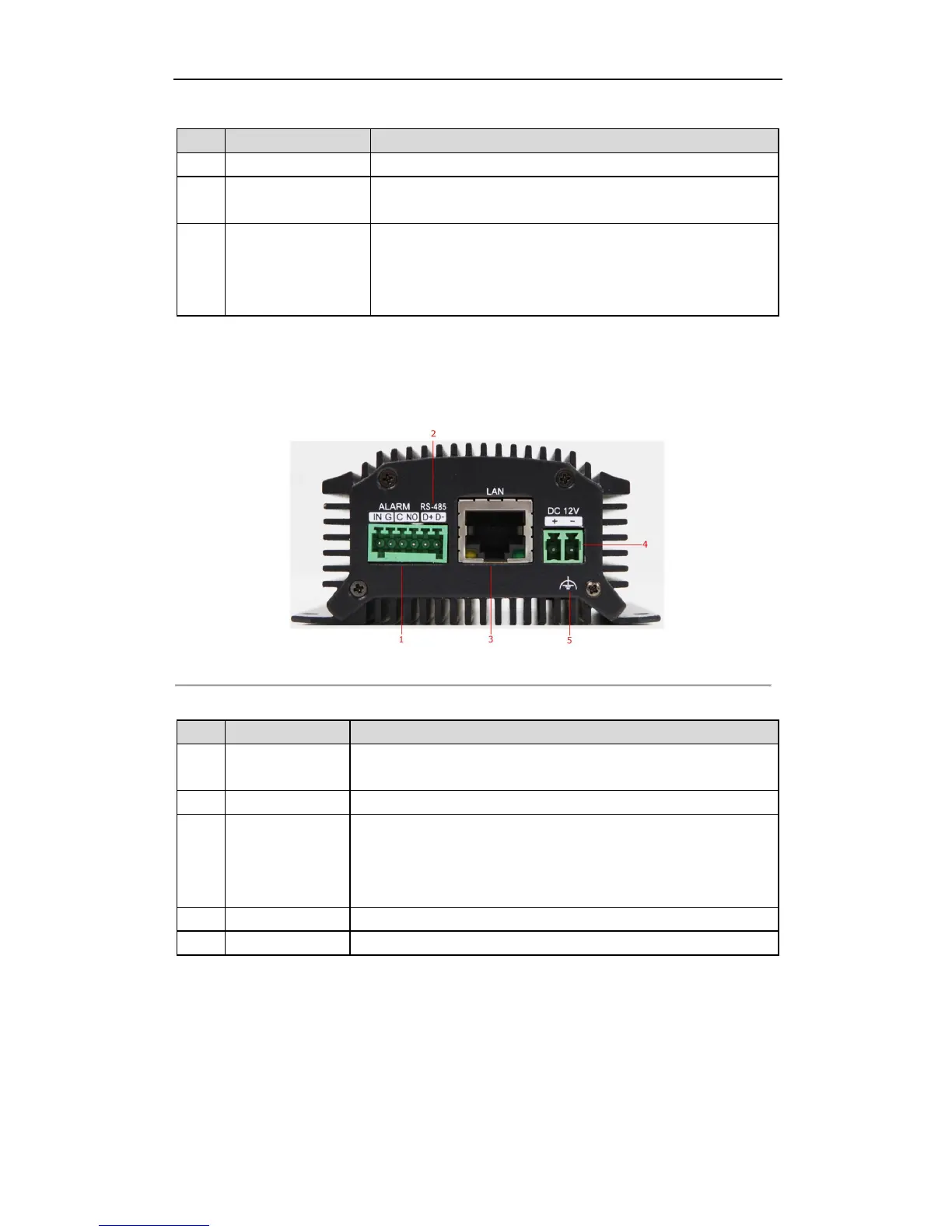

Figure 2.5 Rear Panel of DS-6701HWI/HFI
Table 2.4 Rear Panel of DS-6701HWI/HFI
Item
Description
1
ALARM IN
/OUT
Relay alarm input/output.
Note: The alarm output terminal provides no JP2 pin.
2
RS-485
RS-485 serial interface; connect to pan/tilt unit, speed dome, etc.
3
LAN
10M/100Mbps adaptive Ethernet interface (PoE).
The right LED indicator lights in green when the network cable is
connected, and the left LED indicator blinks in orange when data
is transmitting / receiving.
4
DC12V
12V DC power supply.
5
GND
Grounding
