Fingerprint Access Control Terminal·User Manual

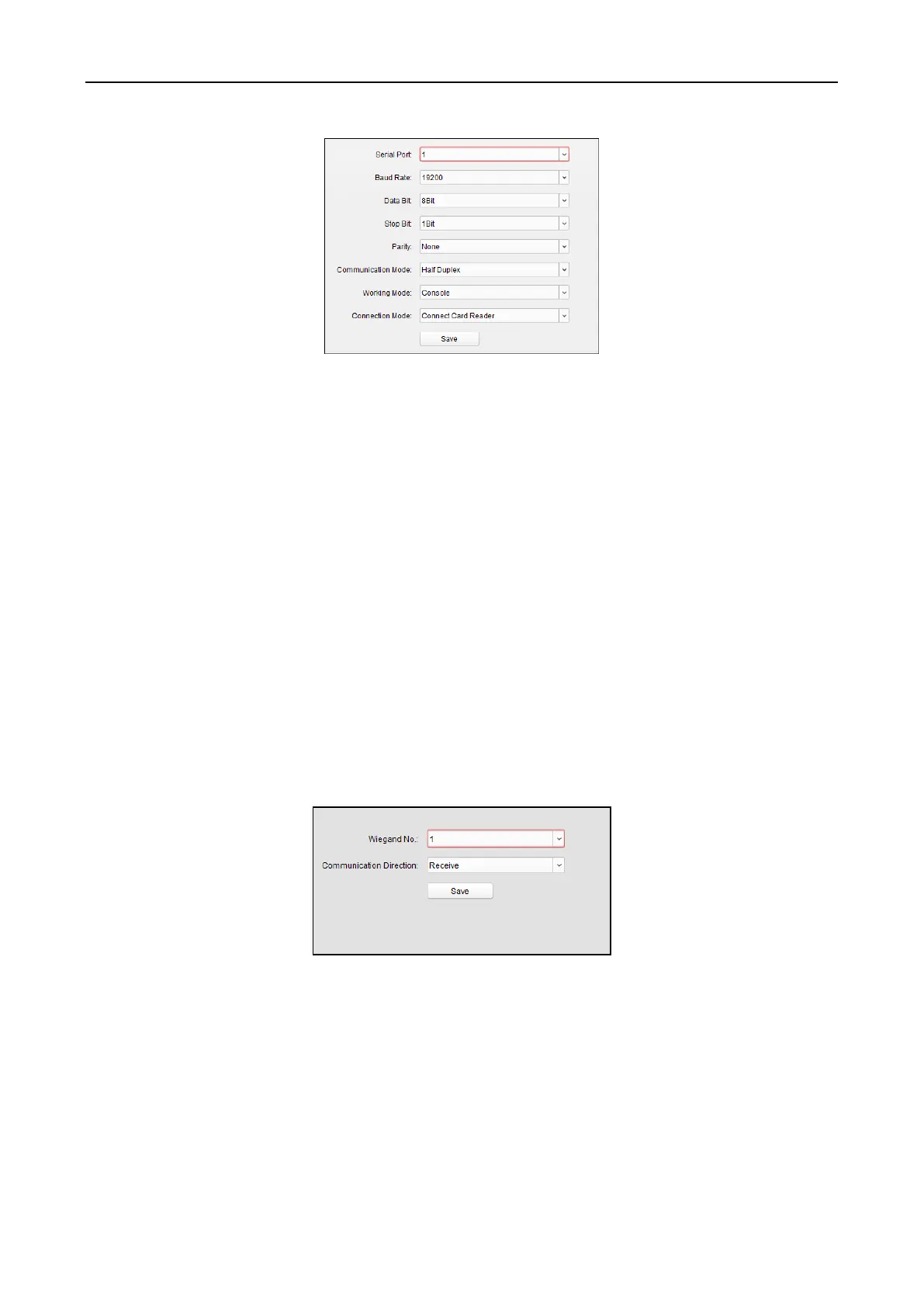

2. Select the serial No. of the port from the dropdown list to set the RS-485 parameters.

3. Set the baud rate, data bit, the stop bit, parity type, communication mode, work mode, and the

connection mode in the dropdown list.

4. Click Save to save the settings and the configured parameters will be applied to the device

automatically.

Note: After changing the working mode, the device will be rebooted. A prompt will be popped up

after changing the working mode.

5.4.6 Wiegand Settings

Purpose:

You can set the Wiegand channel and the communication mode.

Note: The Wiegand Settings should be supported by the device.

Steps:

1. Select the device in the device list, and click Modify to pop up the modifying device

information window.

2. Click the Wiegand Settings tab to enter the Wiegand Settings interface.

3. Select the Wiegand channel No. and the communication mode in the dropdown list.

If you set the Communication Direction as Send, you are required to set the Wiegand Mode as

Wiegand 26 or Wiegand 34.

4. Click Save to save the settings and the configured parameters will be applied to the device

automatically.

Note: After changing the communication direction, the device will be rebooted. A prompt will be

popped up after changing the communication direction.
