10

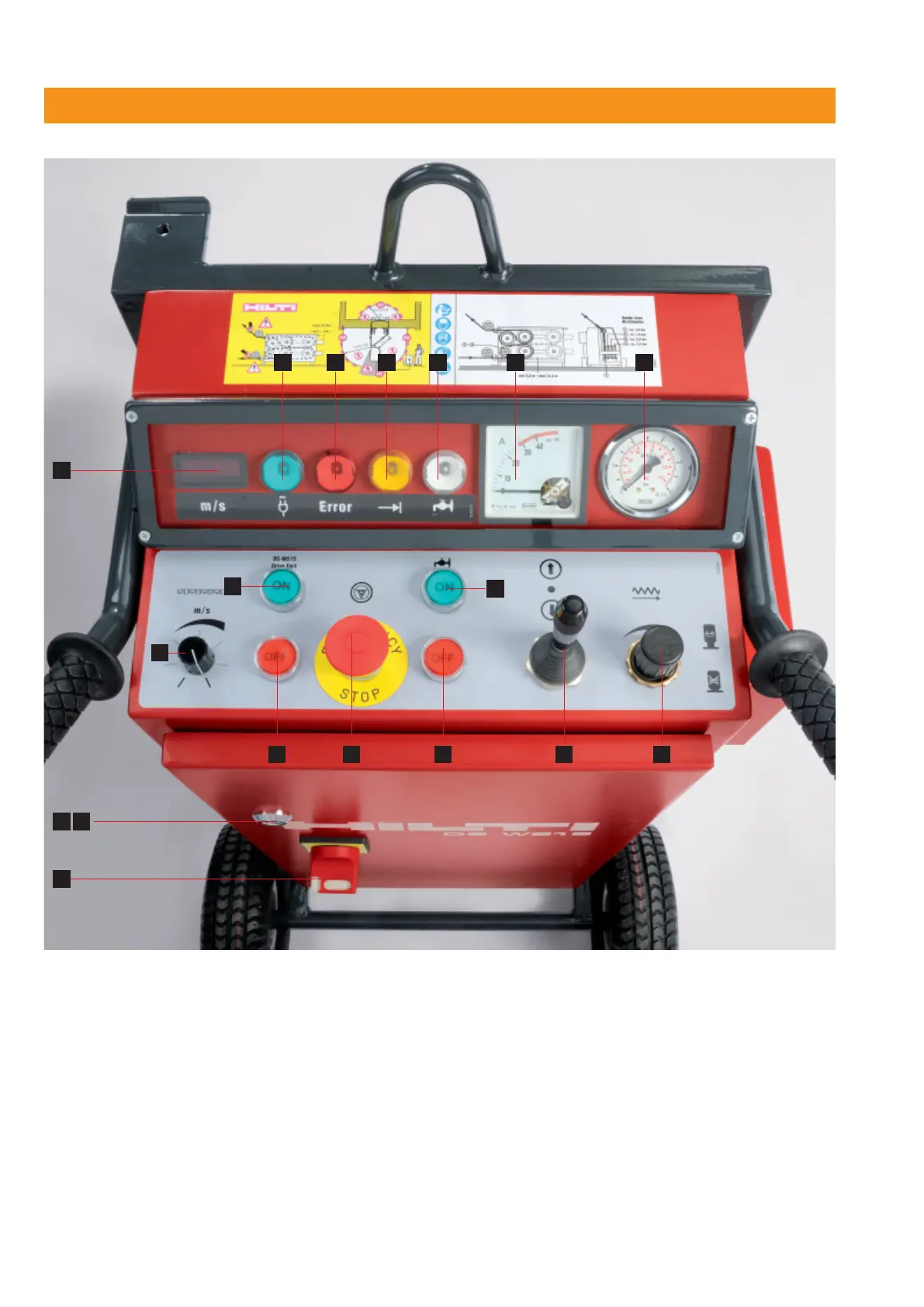

2. Description
Control unit cover lock
Key for control unit cover lock
DS WS15 main power switch
Digital display for wire cutting speed in m/s
Green “Ready for operation” indicator light (main
power switch ON)
Red “Error” indicator light - see troubleshooting
section
Yellow light - “Pneumatic advance at rear stop”
White light - “Water coolant valve open”
Ammeter
Advance pressure in bar
Regulator for wire drive speed of rotation (controls
cutting speed, see )
Drive ON, green light
Drive OFF, red button
Emergency STOP button
Water supply, I = ON, green light
Water supply, O = OFF, red button
Advance control system ↑↓ forward or back
Advance pressure regulator , rotary knob (note pres-
sure in bar, see )
Pushed in = locked, pulled out = unlocked
16
15
17 18 19 20 21
22
23
26
14
12 13
24 25 27 28 29
