Hilti DS WS15 - 2. Description (Continued); Control Unit Operating Controls

9
2. Description

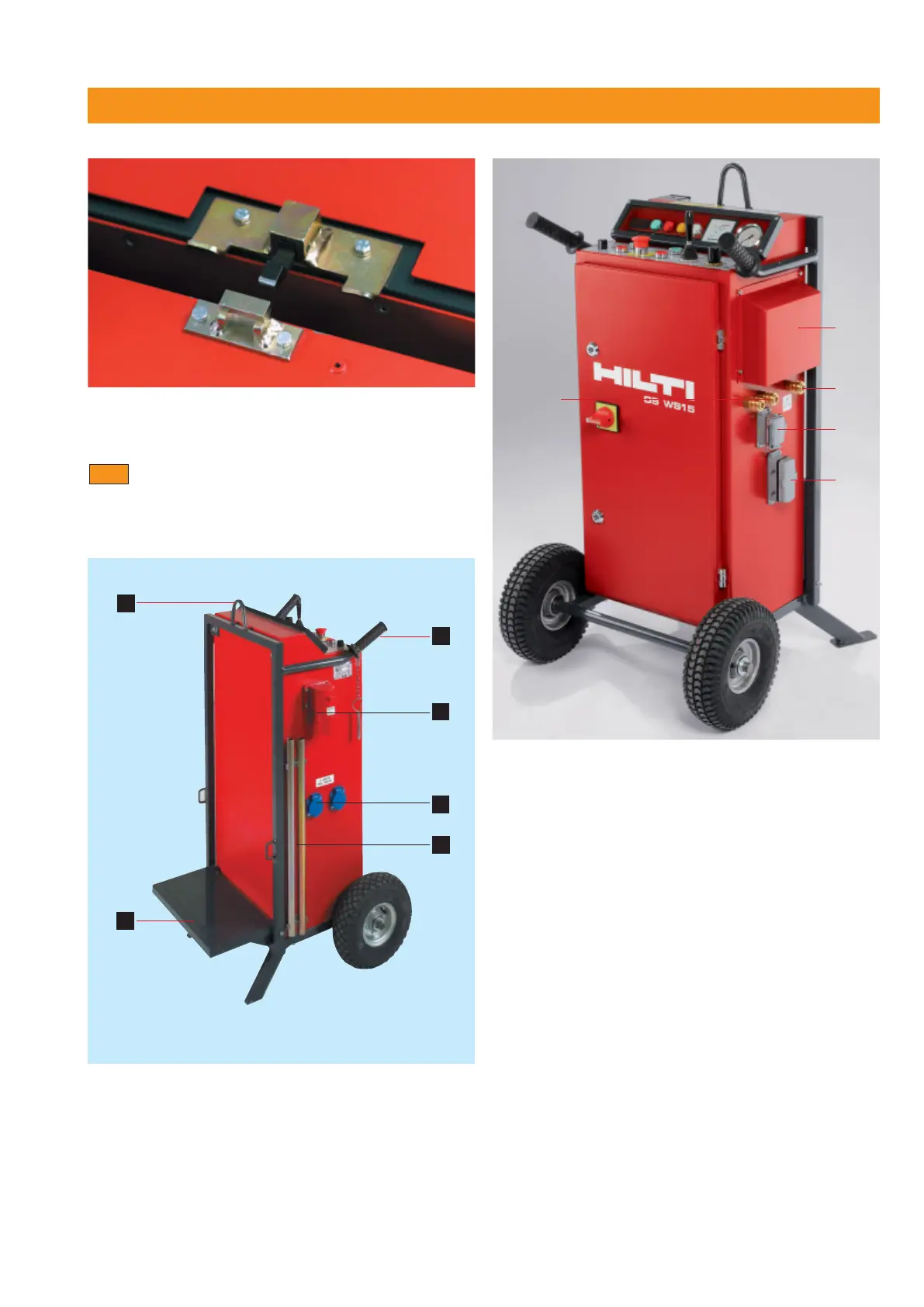

Operating controls
 DS WS 15 control unit
2.3
 Transportation and lifting bars
 Transportation handles
 Lifting point for transportation by crane
 Folding shelf for the compressor
 400 V, 32 amp socket,
supply from electric mains
 Two 230 V sockets
 Ventilation grille
 400 V, 32 amp socket, supply to the drive motors
 24 V control circuit socket for the drive unit
 Compressed air supply, supply from the compressor
 2 compressed air connections, supply to the drive
unit
 Protective cover securing latch
3
4
2
5
6
1





