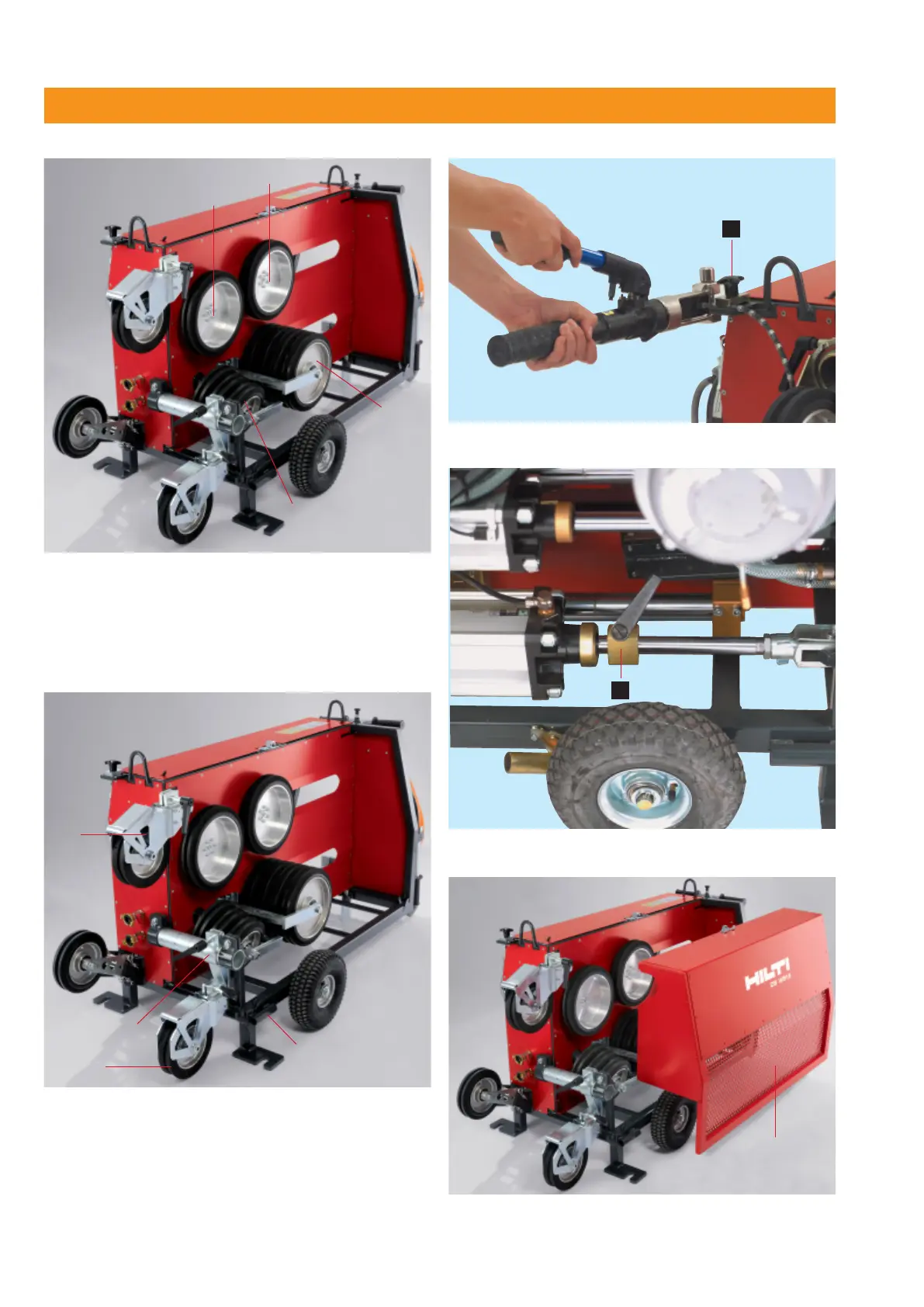

2. Description
 Tension-side guide pulley, adjustable in direction and
position
 Diamond wire lead-in guide
 Slack-side guide pulley – adjustable in direction
 Cylindrical socket for vertical sawing device or for
grip bar
 Wire clamping vice
 Compressed air cylinder stop piece
 Protective cover
 Drive wheel 1, 280 mm dia., fixed
 Drive wheel 2, 280 mm dia., moving, for saw advance
 Storage pulleys, 280 mm dia., moving, for saw advance
 Storage pulleys, 200 mm dia., fixed, for wire storage
