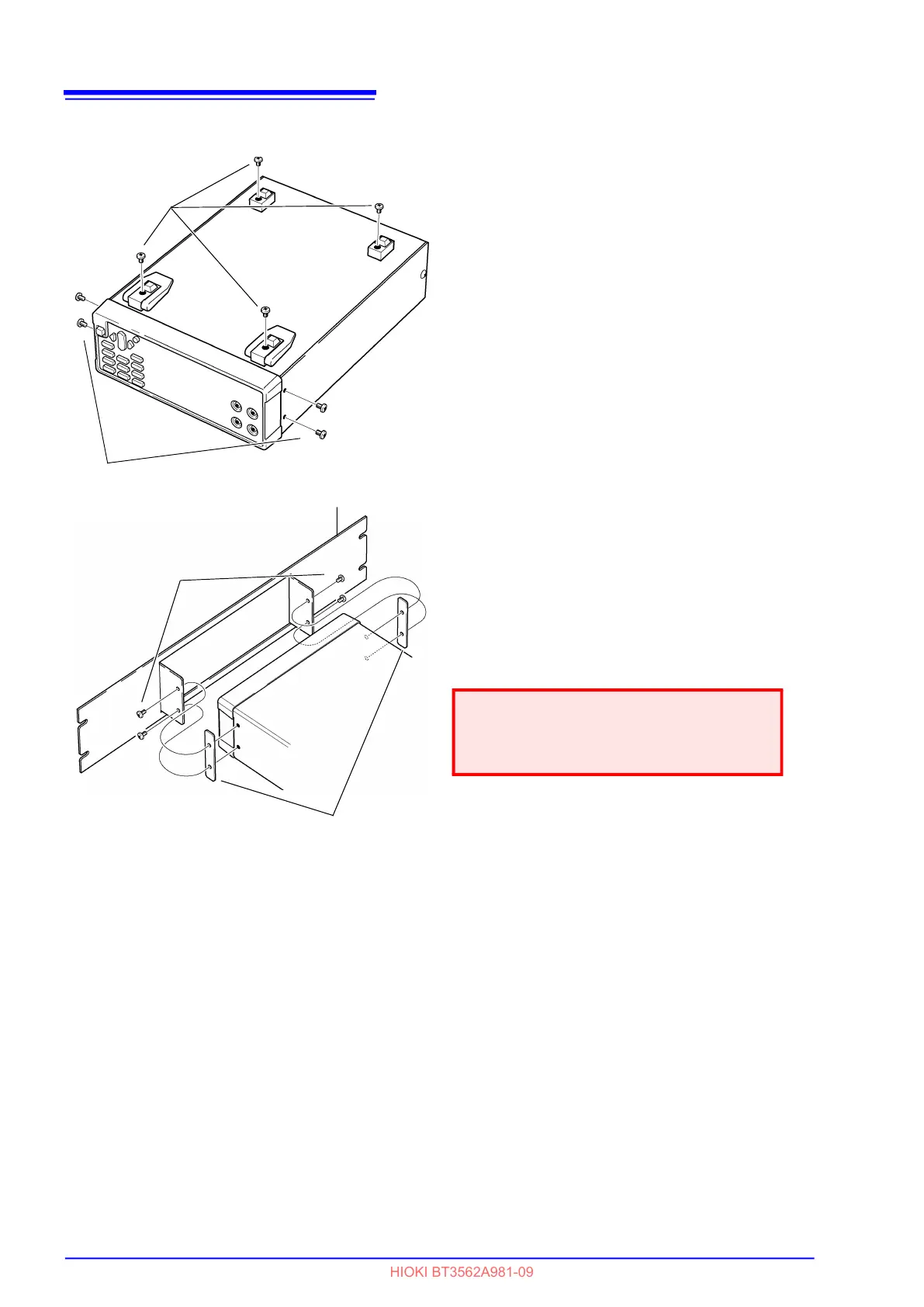

Appendix 10 Rack Mounting
A18
1. Remove the feed from the bottom of the
instrument, and the screws from the
sides (four near the front).
2. Installing the spacers on both sides of
the instrument, affix the Rack Mounting
Plate with the M4 x 10 mm screws.
When installing into the rack, reinforce the
installation with a commercially available
support stand.
M4 x 6 mm
M3 x 6 mm
M4 x 10 mm
Spacers
Rack Mounting Plate
To Next Page
