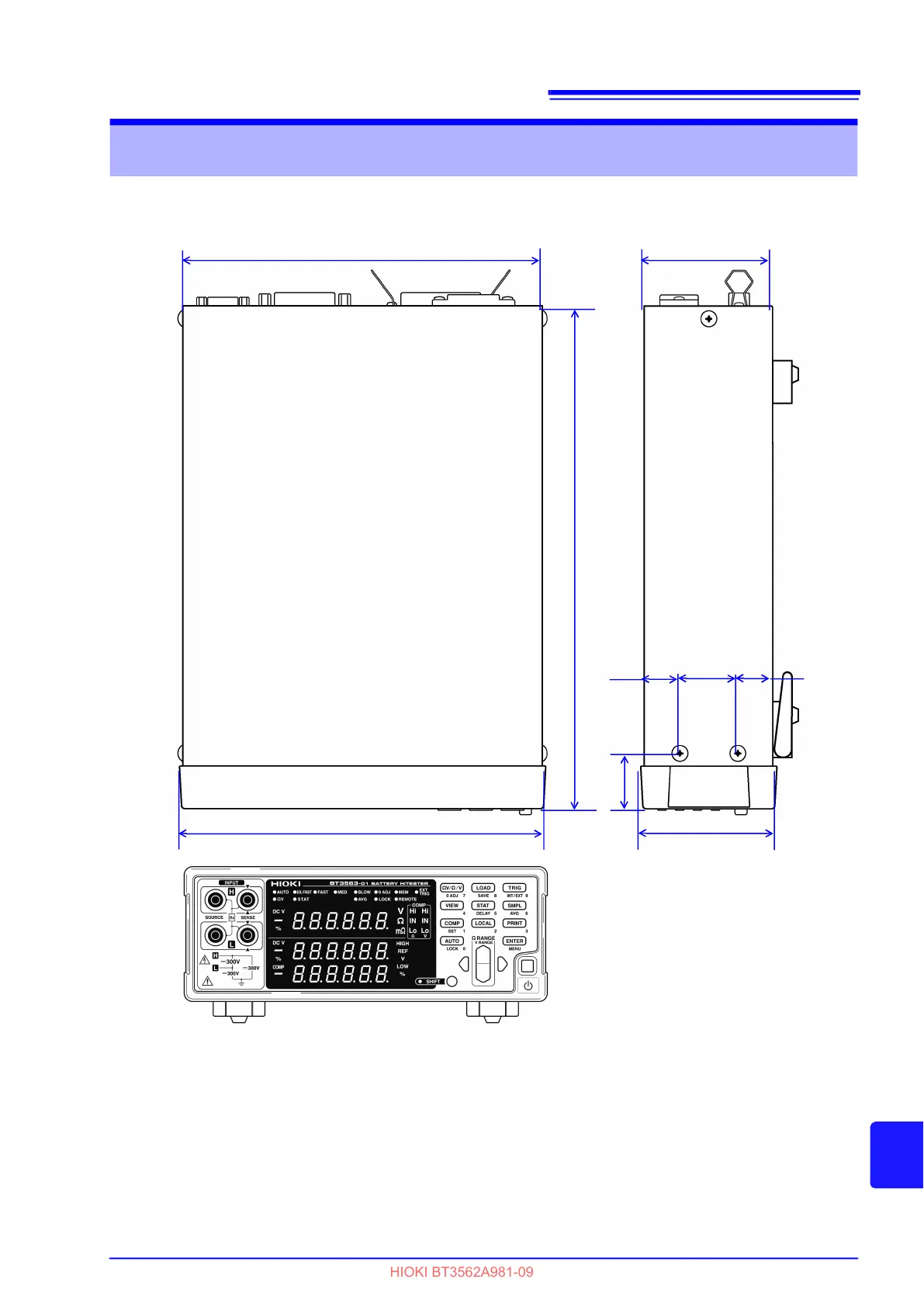

Appendix 11 Dimensional Diagram
A19
Appendix
Appendix 11 Dimensional Diagram
211 mm (8.31”)
295 mm (11.61”)
215 mm (8.46”)
75.5 mm (2.97”)
80 mm (3.15”)
32.5 mm
34 mm
23 mm
20.5 mm
