3.4 Setting Measurement Range
33
3
Chapter 3 Measurement
*1: BT3562A only
*2: BT3563A, BT3563 or BT3563-01 only

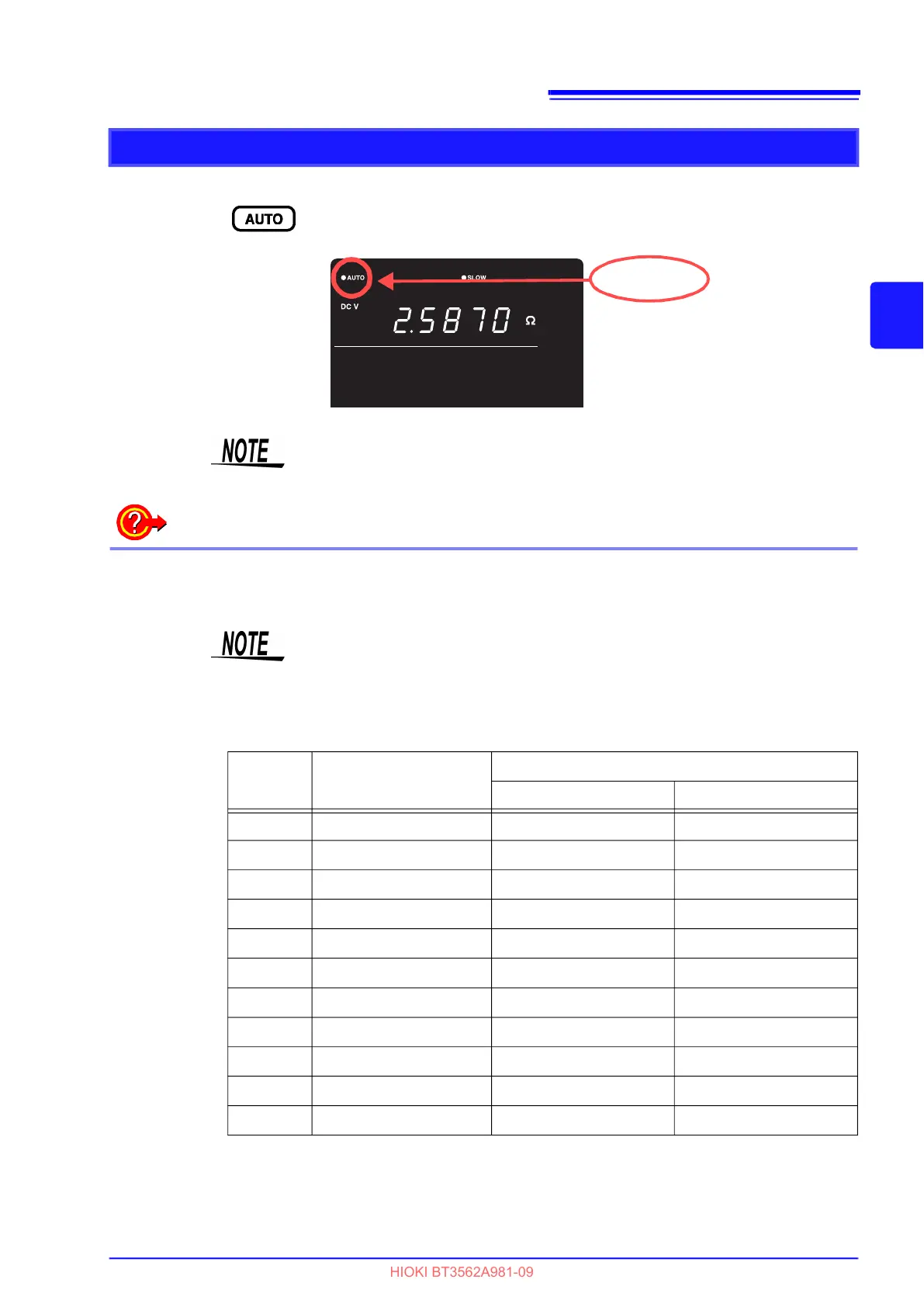

Auto-Ranging
When manual range selection is enabled, pressing this enables auto-ranging.
The most suitable measurement range is then selected automatically.
AUTO lit
The auto-range setting (on/off) for the V function applies to both resistance and
voltage measurement.
Switching from
Auto
-ranging back to
Manual
range selection
Press the AUTO key again. The range can now be changed manually.
• Depending on the state of the test object, auto-ranging may be unstable. In
this case, select the range manually, or increase the Delay time.
• Auto-ranging is not available when Comparator or Memory functions are
enabled (ON).
• Refer to "Specifications" (p.181) for details about accuracy.
Range Displayed Values
Resistance Measurement Mode
Measured Current Open-Terminal Voltage
3 m -0.1000 to 3.1000 m 100 mA 25 V peak
30 m -1.000 to 31.000 m 100 mA 25 V peak
300 m -10.00 to 310.00 m 10 mA 7 V peak
3 -0.1000 to 3.1000 1 mA 4 V peak
30 -1.000 to 31.000 100 A 4 V peak
300 -10.00 to 310.00 10 A 4 V peak
3000 -100.0 to 3100.0 k 10 A 4 V peak
6 V -6.00000 V to ±6.00000 V -- --
60 V -60.0000 V to ±60.0000 V -- --
100 V
*1
-100.000 V to ±100.000 V -- --
300 V
*2
-300.000 V to ±300.000 V -- --
