4.1 Comparator Function
54

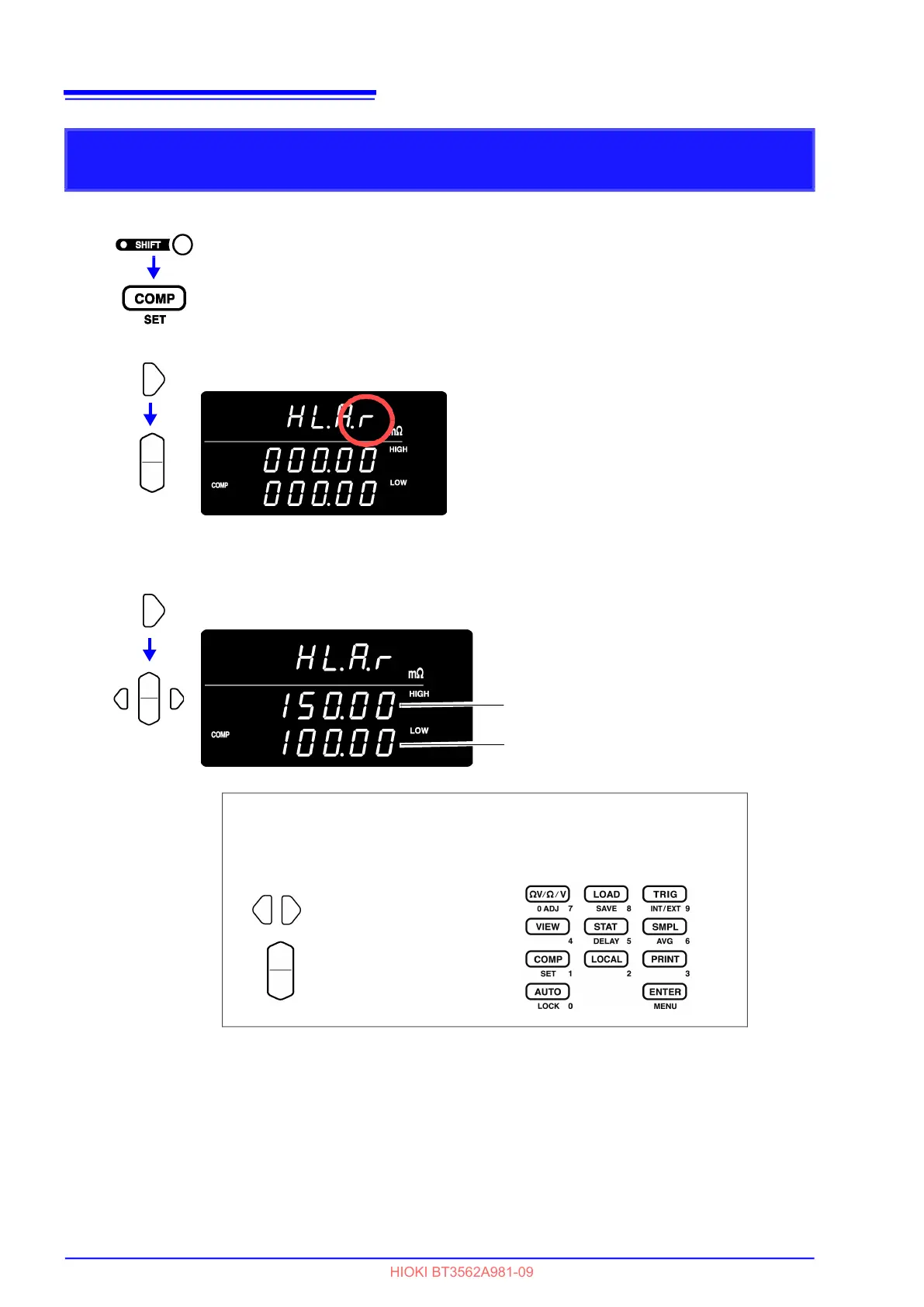

Upper and Lower Thresholds Setting
(by Reference Value and Tolerance)
1
(The SHIFT indicator lights up.)
The Comparator setting display appears.
2
Press so that the indicated position blinks, and select resistance or voltage.
r .............Resistance
u ............Voltage
3
Select the threshold setting display, and enter upper and lower threshold values.
Or
numeric
keypads
For example,
Upper Threshold: 150 m

Lower Threshold: 100 m
Select a digit
Select numerical value
Select a digit to change by mov-
ing the blinking location, then se-
lect the new numerical value.
Using the RANGE keys: Using the numerc keypads
Press the numeric keys cor-
responding to the digits to
be entered.
