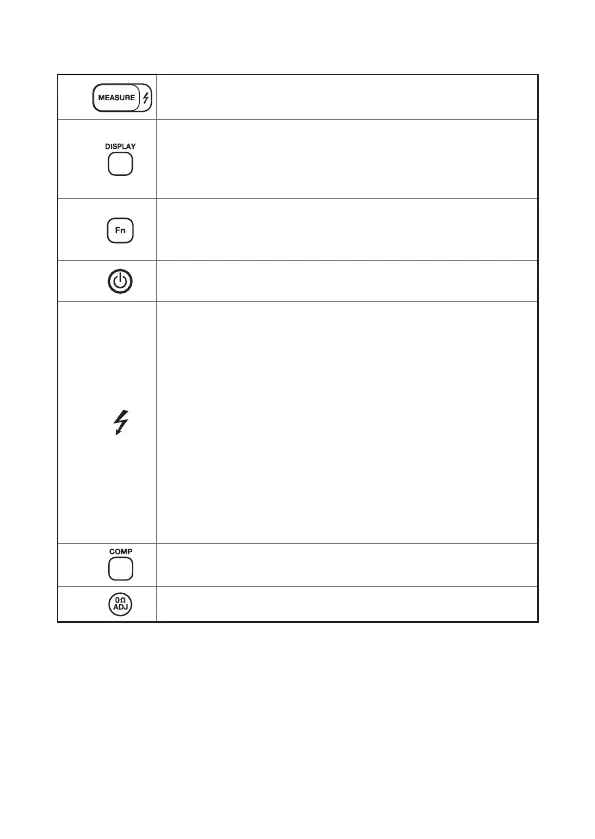

Parts Names and Functions
1
Start/stop for measuring earth resistance
2
• Displays the resistance of each earthing electrode.
(p. 39)
• Display switching (three-pole method, two-pole method)
• DC/AC switching (when measuring earth potential)
3
• Function switching (three-pole method, two-pole method)
• Unlocks the retained value and displays the current earth
potential value.
4
Power ON/OFF
5
Live wire warning LED
• For three-pole method
Blinks under any of the following conditions:
• A voltage of 30 V or higher is applied between the S(P)
and E terminals.
• A voltage of 85 V or higher is applied between the H(C)
and E terminals.
• A voltage of 85 V or higher is applied between the H(C)
and S(P) terminals.
• For two-pole method
Blinks when a voltage of 30 V or higher is applied
between the H(C) and E terminals.
• Lights up during earth resistance measurements.
6
Sets/cancels comparator setting (COMP lights up/goes off).
(p. 31)
7
Sets/cancels zero adjustment setting. (p. 35, p. 46)
