Installation MS20/MS30
Release
11
07/2013
25
The Gigabit slot of the MS30 (slot on the left side next to the switch basic
module) supports two Gigabit ports.
When you are using an SFP transceiver, you get an optical interface. You
thus deactivate the corresponding TP interface.
Note: Only use Hirschmann SFP transceivers.
See “Media modules: power, temperature, order numbers” on page 63.

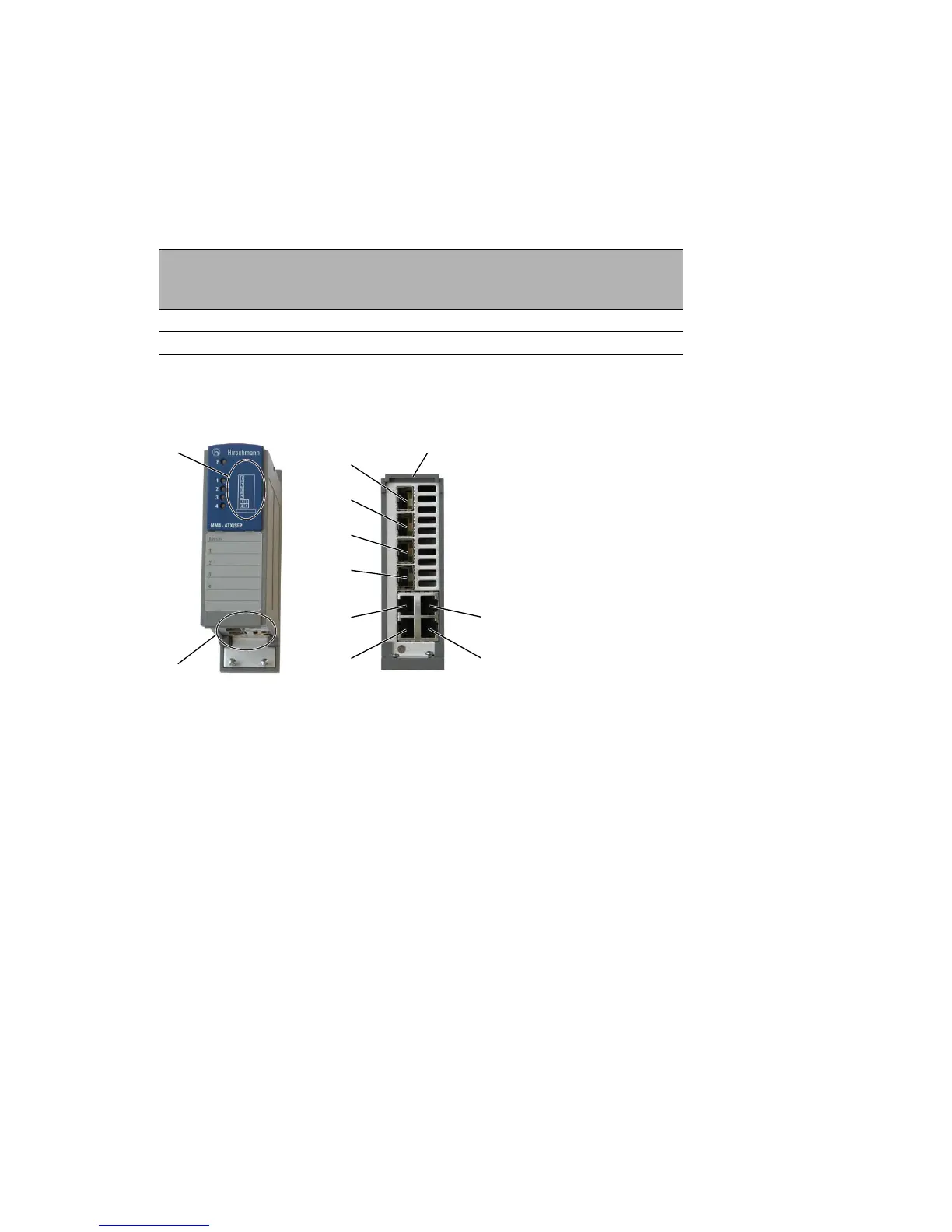

Figure 8: Port assignment
1 - Port 1 (twisted pair)
2 - Port 2 (twisted pair)
3 - Port 3 (twisted pair)
4 - Port 4 (twisted pair)
1* - Port 1* (SFP slot, can be used as alternative to port 1)
2* - Port 2* (SFP slot, can be used as alternative to port 2)
3* - Port 3* (SFP slot, can be used as alternative to port 3)
4* - Port 4* (SFP slot, can be used as alternative to port 4)
5 - Representation of port numbers
6 - Bottom of device
1.3.3 Digital I/O Module MM24
The Digital I/O Module MM24 allows the control of different actuators of the
system via 4 digital inputs and outputs.
For further information, see the user manual MICE digital I/O module MM24.
MM4 media modules
Module type
TP ports
10/100/1000
SFP ports
as alternatives to TP
ports
MM4 - 2TX/SFP 2, RJ45 2
MM4 - 4TX/SFP 4, RJ45 4
Table 5: Media connections per MM4 media module (number and type)
1*
5
6
3*
2*
4*
6
1
2
3
4
