Installation MS20/MS30
Release
11
07/2013
33

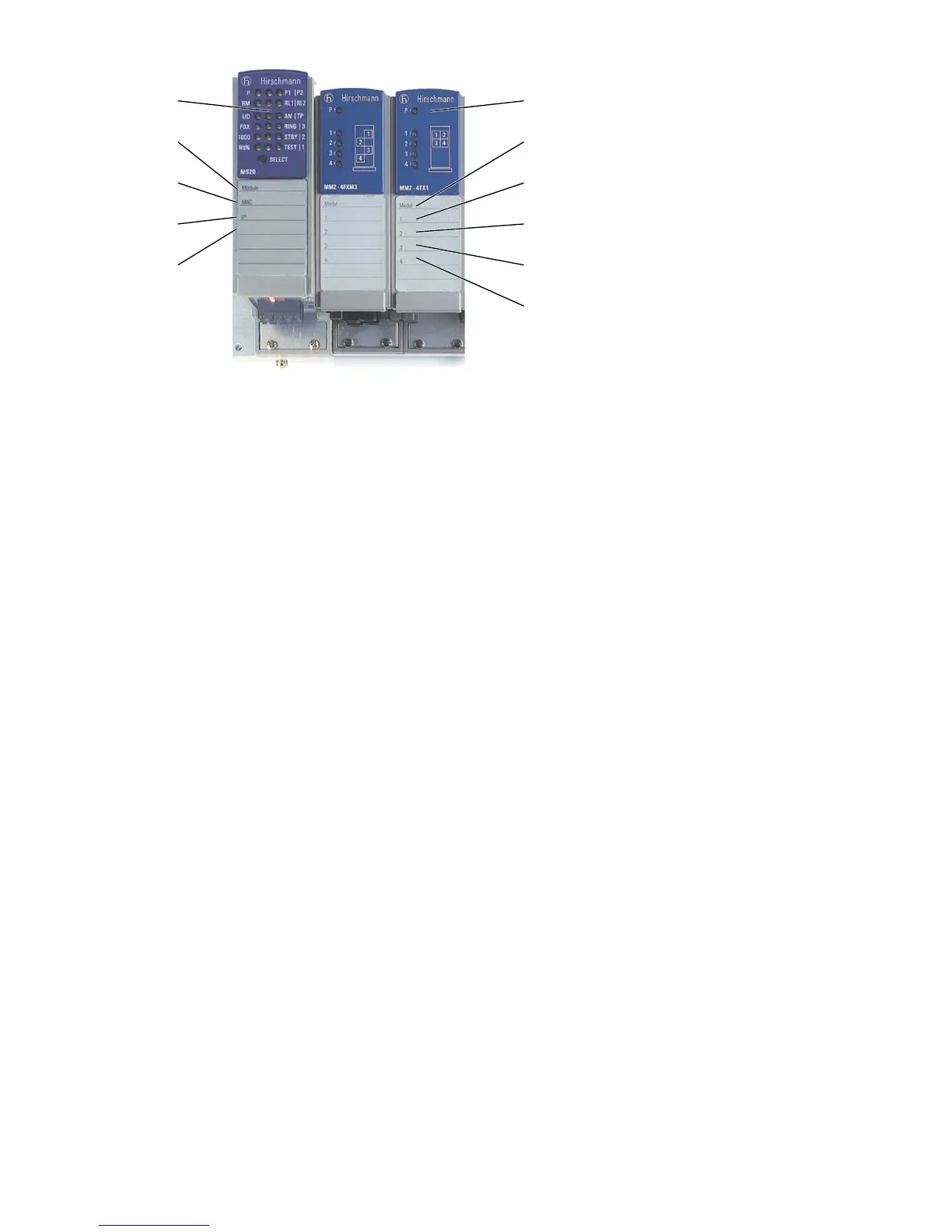

Figure 12: Labels for basic modules and media modules
1 - MICE basic module
2 - Lable for the name of the module
3 - Lable for MAC address of the device
4 - Lable for IP address of the device
5 - Lable for other entries on your demand
6 - MICE media module
7 - Lable for the name of the media module
8 - Lable for the port assignment of the media module (port 1)
9 - Lable for the port assignment of the media module (port 1)
10 - Lable for the port assignment of the media module (port 1)
11 - Lable for the port assignment of the media module (port 1)
Attach the labels included in the delivery to the basic module and the
media modules as required.
2.4 Installing the SFP transceivers (optional)
To attach an SFP transceiver, first remove the protective cap over the
socket.
Push the SFP transceiver with the lock closed into the socket until it
latches audibly in place.
Note: Only use Hirschmann SFP transceivers.
5
1
2
3
4
10
6
7
8
9
11
