 100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
 10 Mbit/s half-duplex mode, 10 Mbit/s full duplex mode
Default setting: Autonegotiation activated except for the ring ports:
100 Mbit/s, full duplex.
The socket housing is electrically connected with the front panel.
The PoE voltage is supplied via the free wire pairs (spare-pair powering).
2.12.3 10/100/1000 Mbit/s twisted pair port
The 10/100/1000 Mbit/s twisted pair port offers you the ability to connect
network components according to the IEEE 802.3 10BASE-T/100BASE-
TX/1000BASE-T standard.
This port supports:
 Autonegotiation
 Autopolarity
 Autocrossing (if autonegotiation is activated)
 1000 Mbit/s full duplex
 100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
 10 Mbit/s half-duplex mode, 10 Mbit/s full duplex mode
State on delivery: autonegotiation.
The socket housing is electrically connected with the front panel.
Pin Function PoE/PSE voltage
1 RD+ Receive path —
2RD− Receive path —
3 TD+ Transmission path —
4 — — Plus terminal
5 — — Plus terminal
6 TD- Transmission path —
7 — — Minus terminal
8 — — Minus terminal

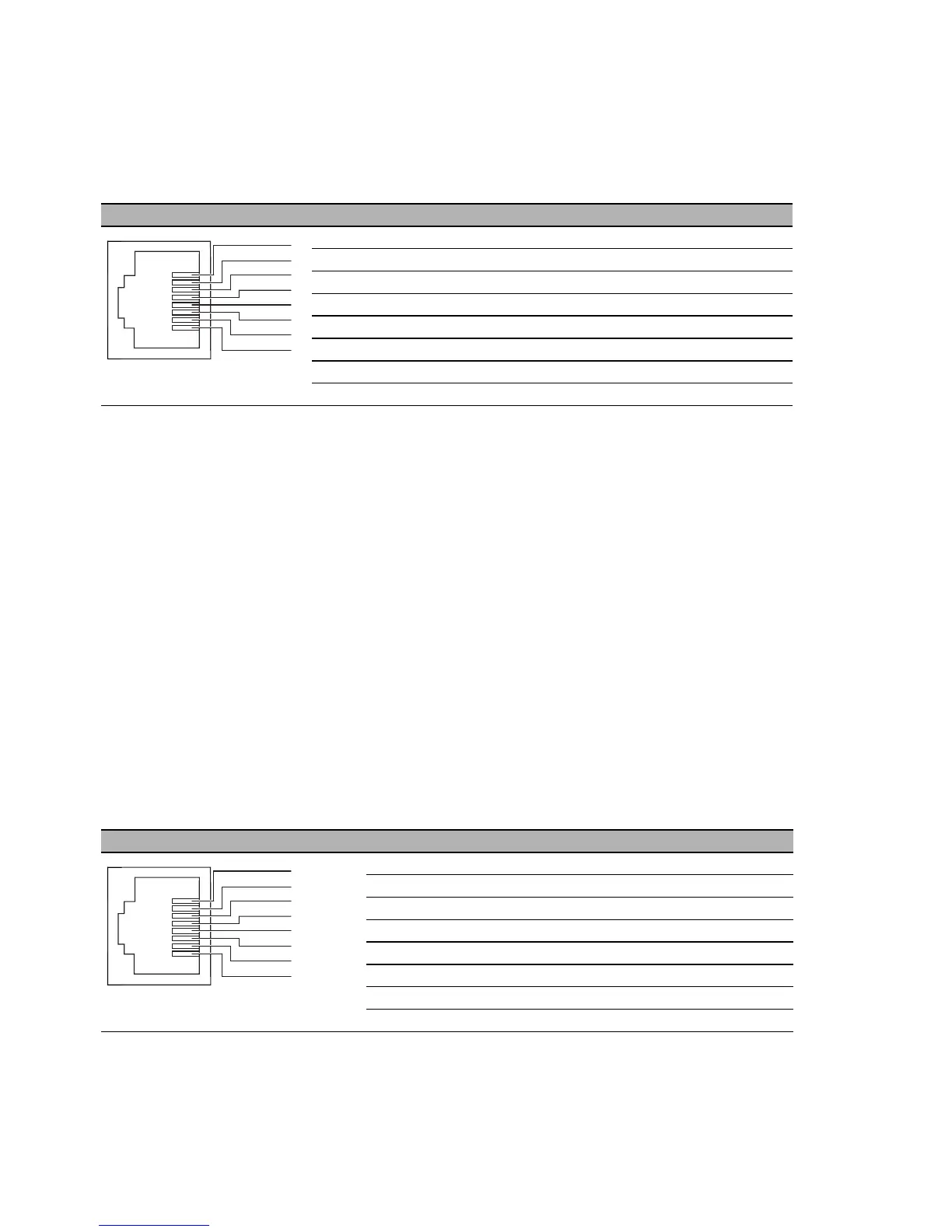

Table 13: Pin assignment of the 10/100 Mbit/s PoE/PSE port, RJ45 socket, MDI-X
mode, spare-pair powering
Pin Function
1BI_DB+
2BI_DB−
3BI_DA+
4 BI_DD+
5BI_DD−
6BI_DA−
7 BI_DC+
8BI_DC−
Table 14: Pin assignment of the 10/100/1000 Mbit/s twisted pair port, RJ45 socket,
MDI-X mode
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
