Hirschmann MICE MS20-0800 Series User Manual

Installation MS20/MS30
Release 11 07/2013
51
5 Deinstallation
5.0.1 Disassembling the device
 To remove the device from the hat rail, press the device downwards and
pull it out from under the hat rail.

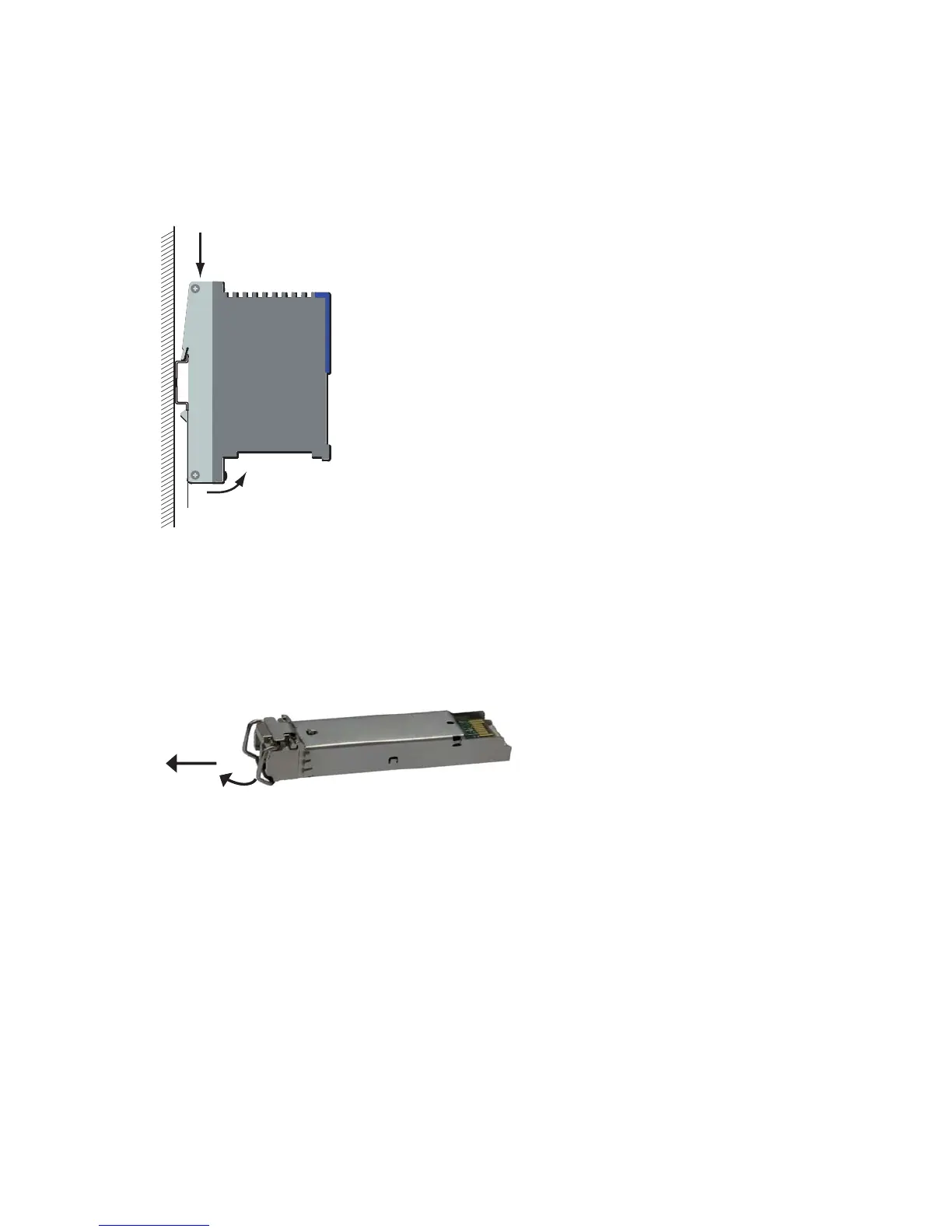

Figure 22: Disassembly
5.0.2 Removing the SFP transceivers
 Pull the SFP transceiver out of the socket by means of the opened lock.
 Close the socket with the protective cap.
Figure 23: Deinstalling an SFP transceiver
1
2
