32
Installation MS20/MS30
Release
11
07/2013
2.2 Installing the media modules
On delivery, the device is ready for operation.
You can install and remove media modules during running operation.
To attach a media module, first remove the protective cap on the plug.
Plug the media module onto the plug.
Fasten the 4 screws at the corners of the media module.
Fit the media modules in sequence from left to right.
Check whether the switch default settings match your requirements.
2.3 Filling out and attaching labels
The labels included in the scope of delivery help you to organize your
network installation clearly.
The large label areas enable you to designate the modules and uniquely
assign the devices to be connected. You can print them, write on them and
exchange them at any time.

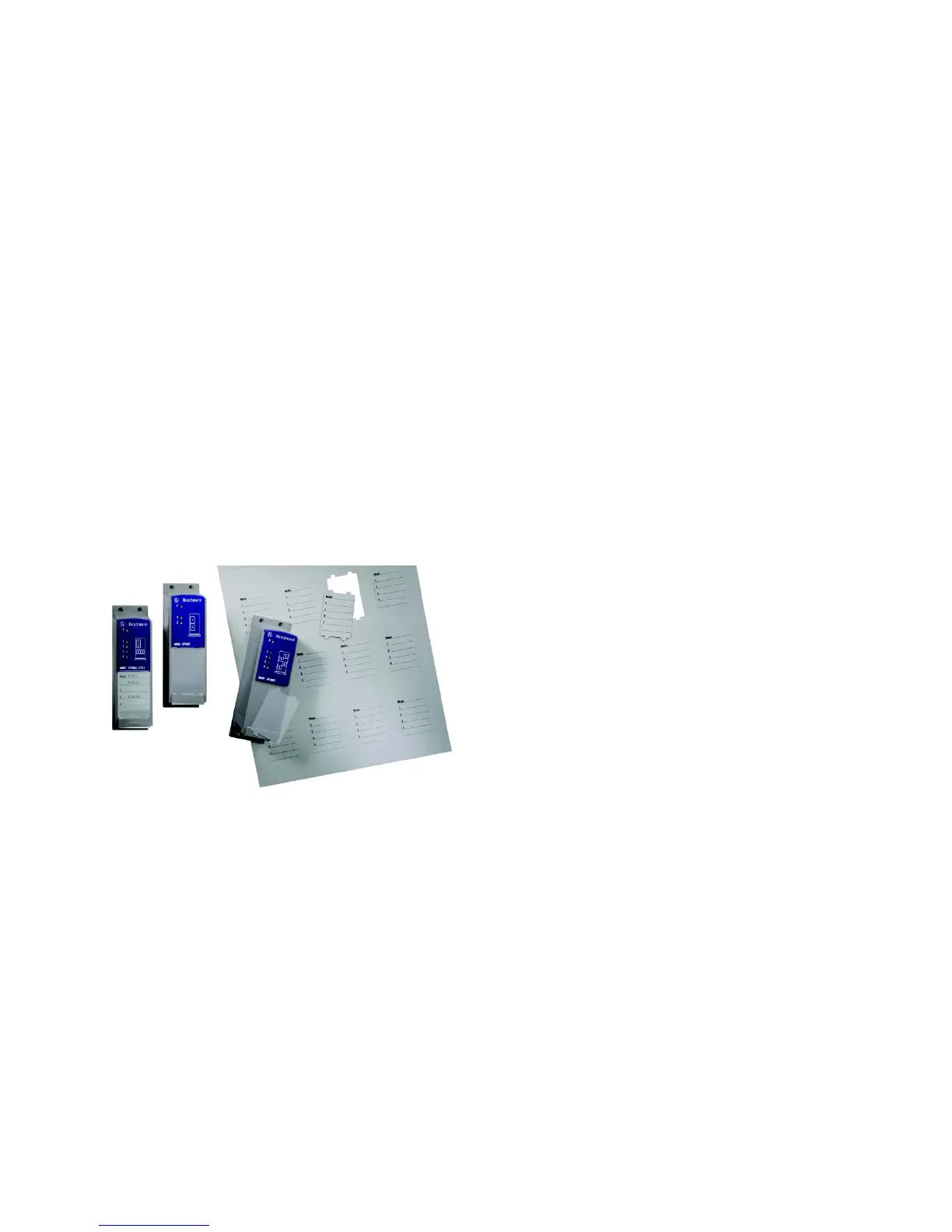

Figure 11: Attaching the labels
