22
Installation RSP 20/25/30/35
Release 15 12/2017
1.3 Device views
1.3.1 Front view

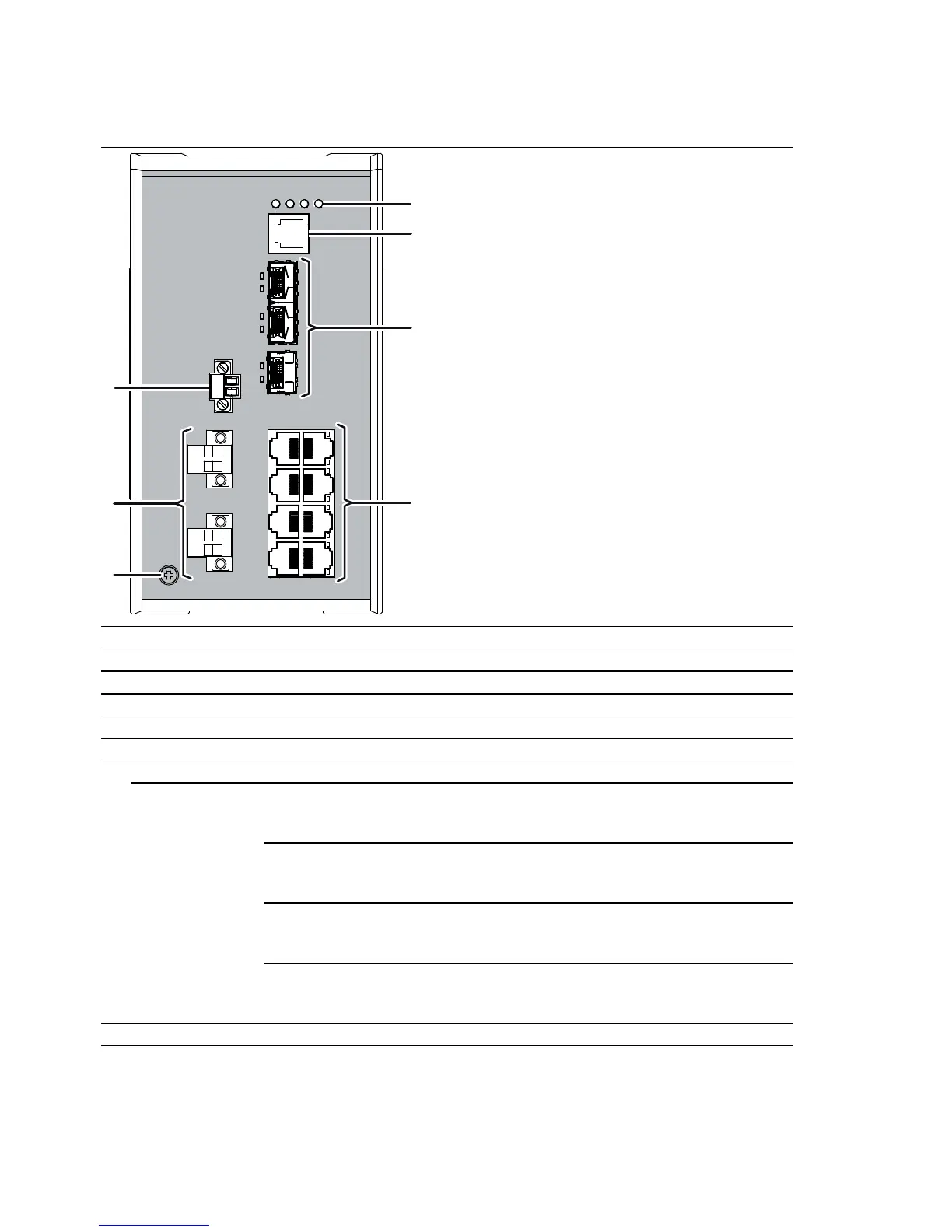

Front view (using the example RSP20-11003Z6TT-SCC...)
1 LED display elements for device status
2 V.24 interface
3 3 × SFP slot for 100 Mbit/s connections
4 8 × 10/100 Mbit/s twisted pair ports
5 Grounding screw
6 Supply voltage connection
alternatively,
depending on
device variant
Supply voltage with the
characteristic value:
CC
 2 voltage inputs for redundant power supply
 2-pin terminal block
Supply voltage with the
characteristic value:
K9
 1 voltage input
 3-pin terminal block
Supply voltage with the
characteristic value:
KK
 2 voltage inputs for redundant power supply
 3-pin terminal block
Supply voltage with the
characteristic value:
TT
 2 voltage inputs for redundant power supply
 2-pin terminal block
7 Connection for the signal contact
6
7
4
5
1
2
3
