Installation RSP 20/25/30/35
Release
15
12/2017
33
2.3.1 Installing the device onto the DIN rail
Verify that the device maintains the minimum clearing in order to meet the
climatic conditions:
Top and bottom device side: 3.94 in (10 cm)
Left and right device side: 0.79 in (2 cm)
Undercutting the minimum clearing reduces the specified maximum
operating temperature.
See “General technical data” on page 49.

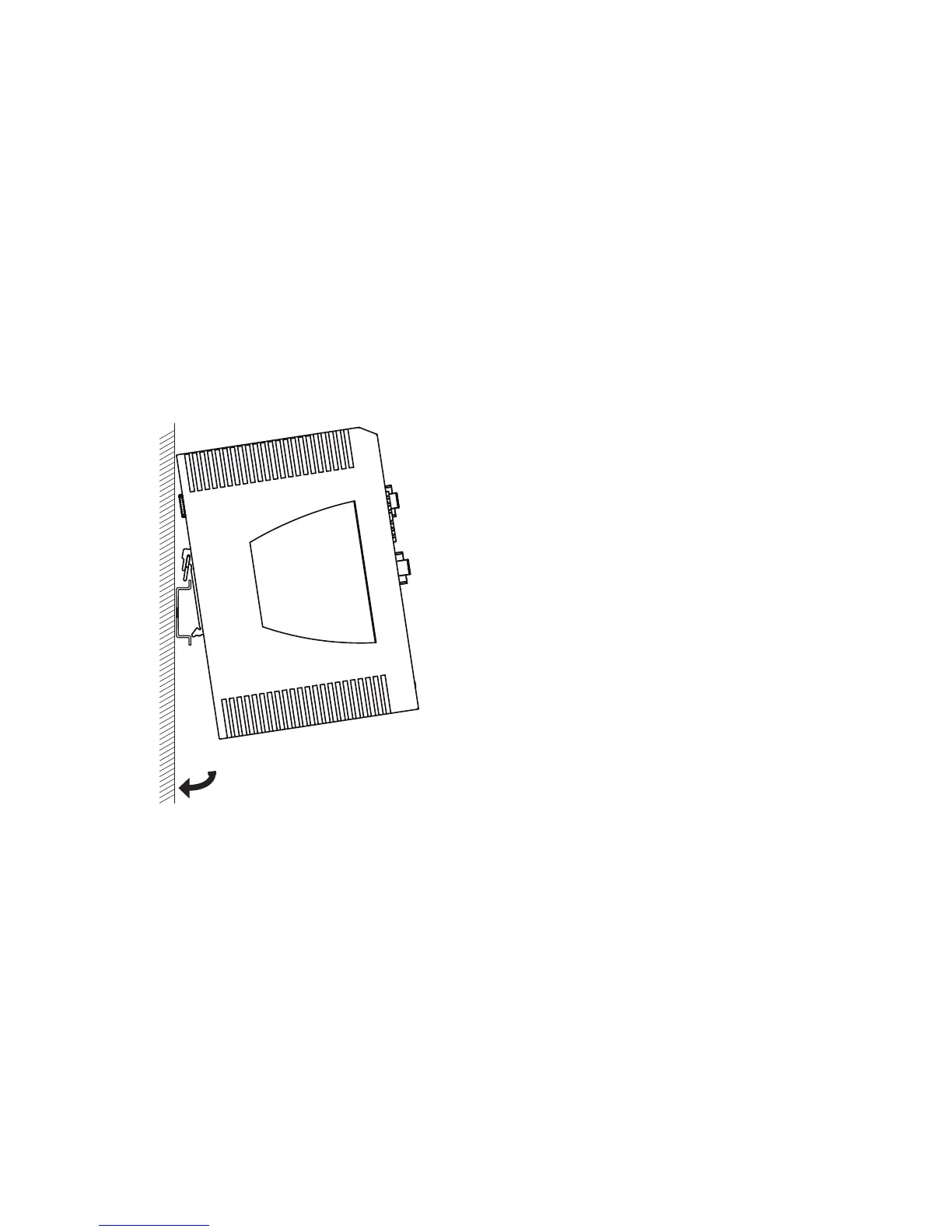

To mount the device onto a horizontally mounted 35 mm DIN rail according
to DIN EN 60715, proceed as follows:
Slide the upper snap-in guide of the device into the DIN rail.
Press the media module downwards onto the clip-in bar.
Snap in the device.
Note: The overall shield of a connected shielded twisted pair cable is
connected to the ground connector on the front panel as a conductor.
